LoFive RISC-V by Qwerty Embedded Design
Description

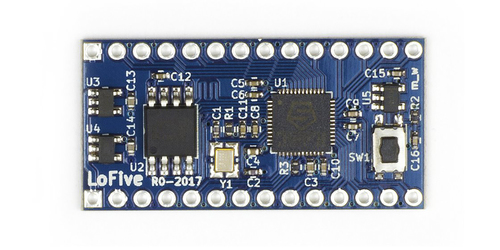

LoFive is a lightweight SiFive Freedom E310 open source SoC evaluation kit. The E310 leverages the Free and Open RISC-V Instruction Set Architecture originally developed by UC Berkeley and now has wide industry support via the RISC-V Foundation. Don't let the board's understated name and openness fool you - this MCU packs some impressive specs and the board was designed by the prolific QWERTY Embedded Design founder, Michael Welling.
Schematics
(click to open a larger image)
Specifications
- MCU – SiFive Freedom E310 (FE310) 32-bit RV32IMAC processor @ up to 320+ MHz (1.61 DMIPS/MHz)
- 16 KB RAM
- Storage - 128-Mbit SPI flash (ISSI IS25LP128)
- Expansion - 2x 14-pin headers with JTAG, GPIO, PWM, SPI, UART, 5V, 3.3V and GND
- Misc - 1x reset button, 16 MHz crystal
- Power Supply - 5V via pin 1 on header; Operating Voltage: 3.3 V and 1.8 V
- Dimensions - 38 x 18 mm (estimated)
- License - CERN Open Hardware License v1.2
