PureThermal Micro Breakout Board

The smallest Lepton breakout board ever made!

Product Description

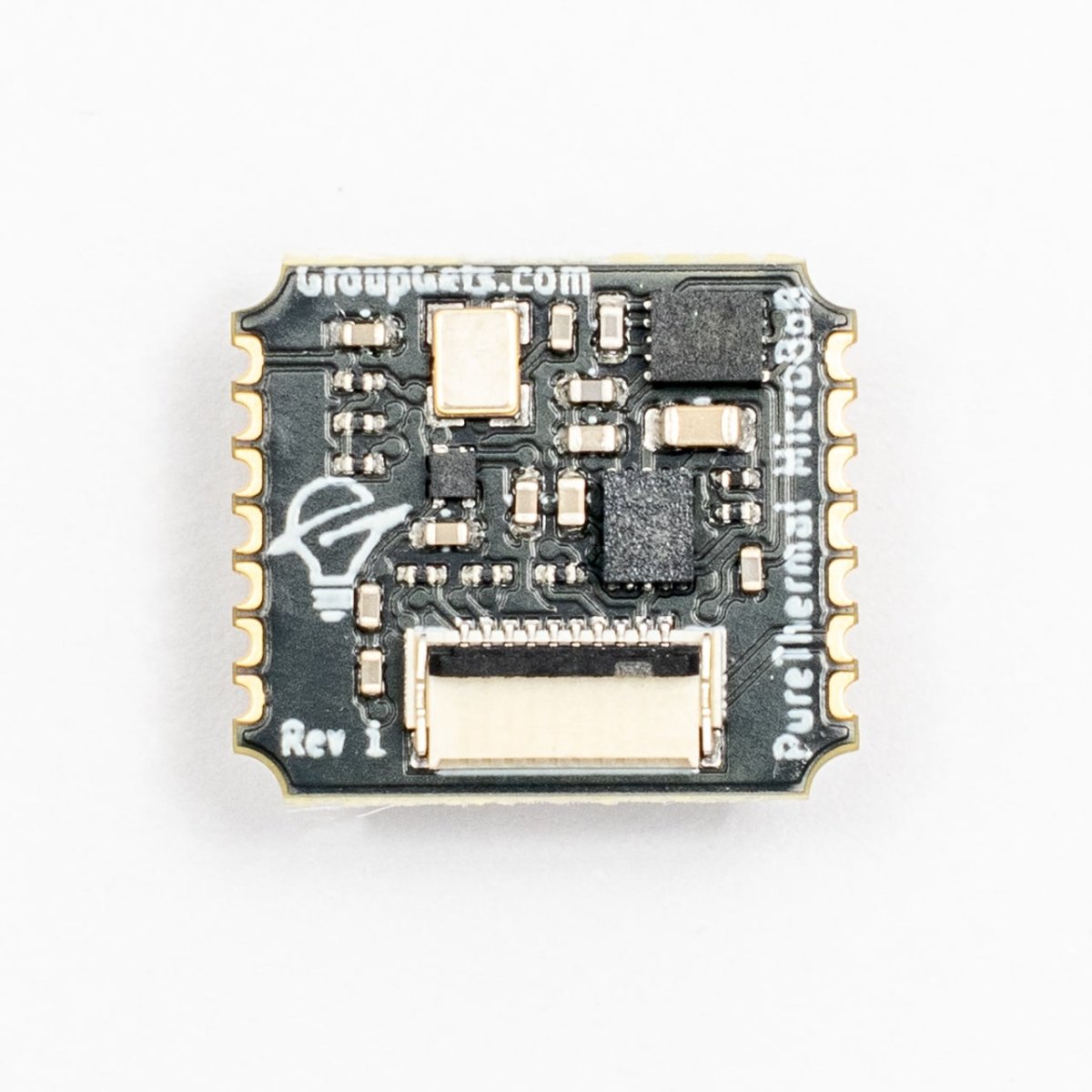

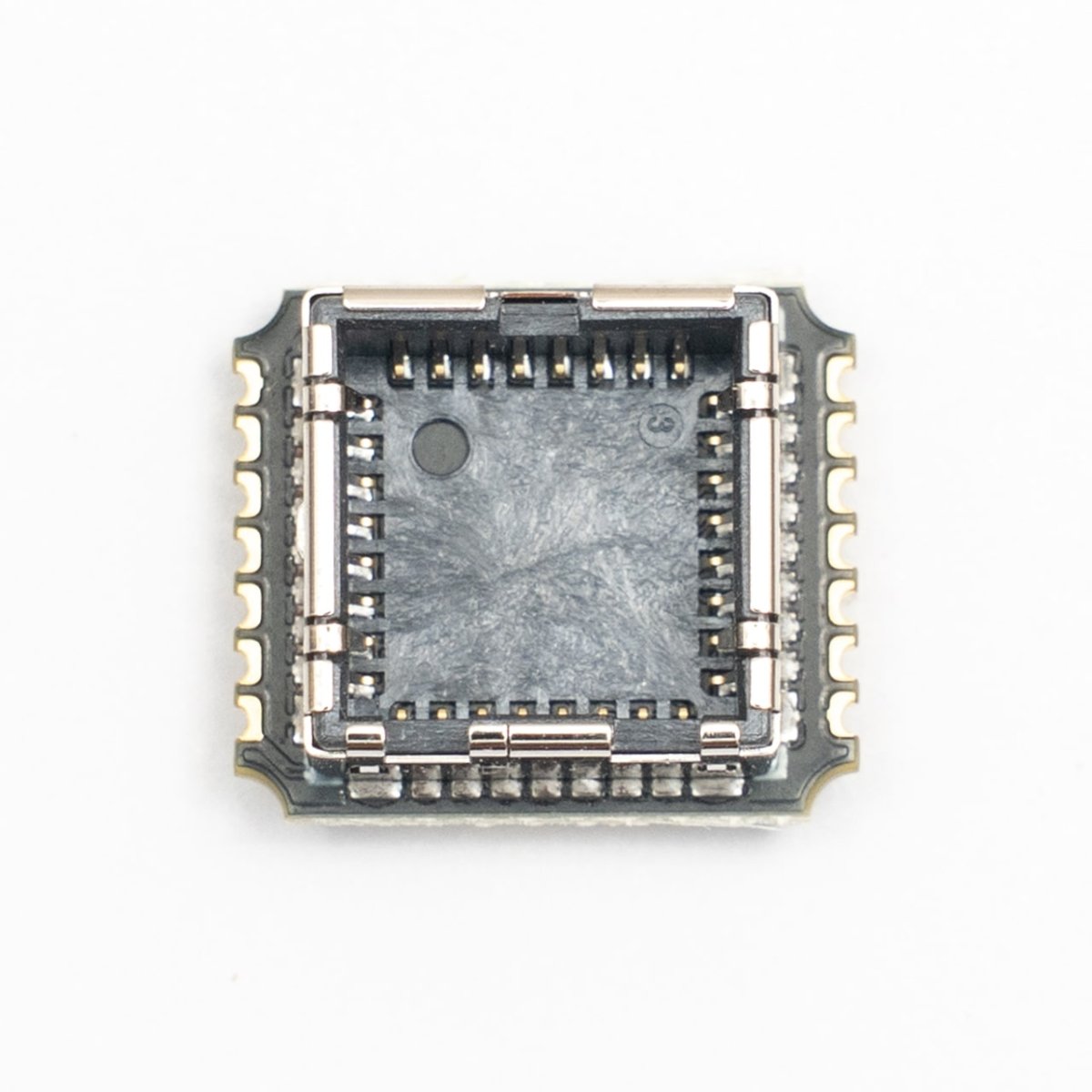

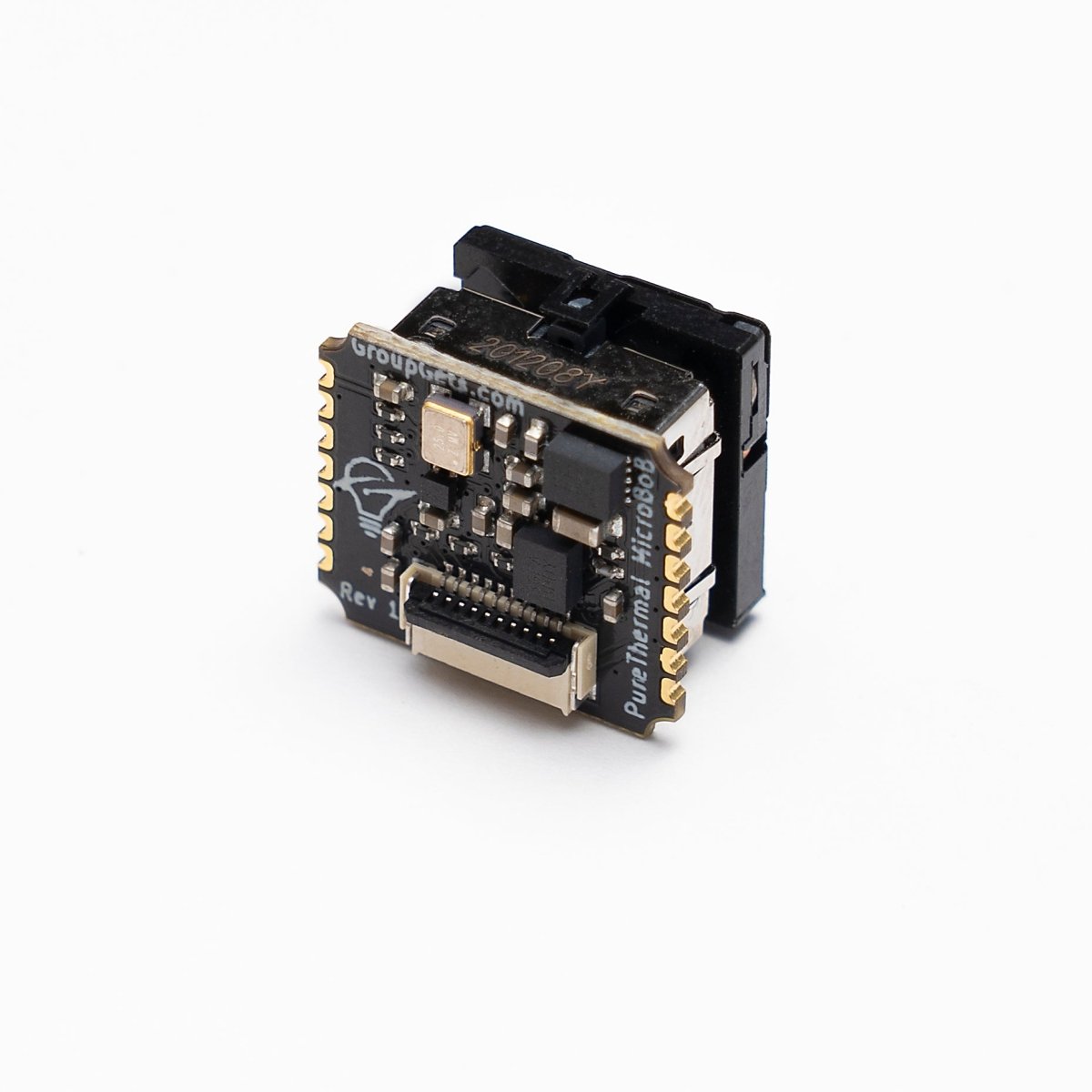

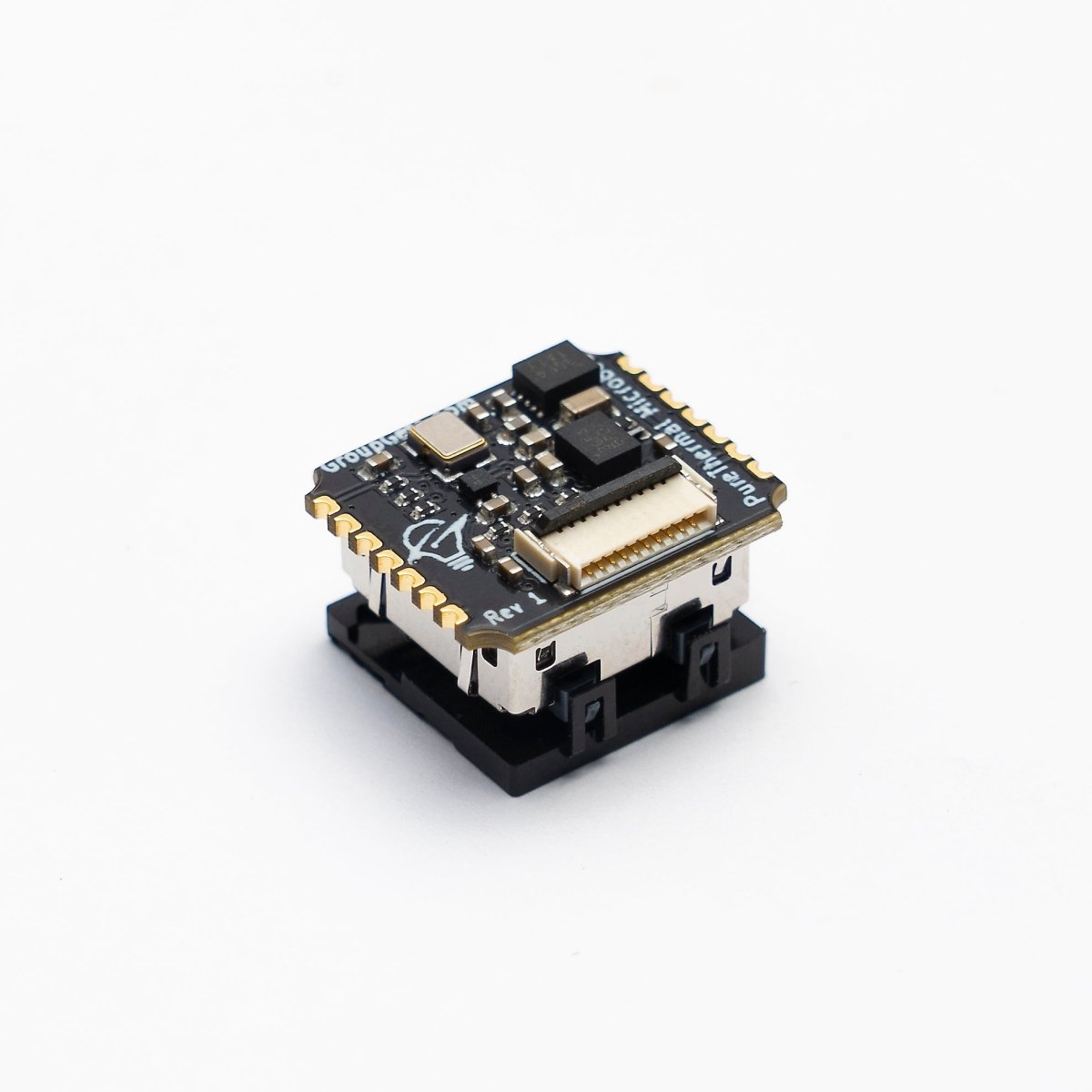

The PureThermal Micro Breakout Board is an ultra-compact module designed for easy interfacing with FLIR's Lepton thermal imaging sensors. It can be soldered onto a PCB using the castellated breakout or connect it via a 10-pin flat flexible cable (FFC) or flexible printed circuit (FPC) to communicate with the Lepton via I2C and VoSPI. This module takes care of the Lepton voltage supplies and 25MHz master clock, simplifying the integration process for designers.

*FLIR Lepton sold separately

FEATURES

• Open-source reference code is on the GroupGets GitHub for getting started
• Compatible with all current 2.x, 3.x, and FS Lepton cores

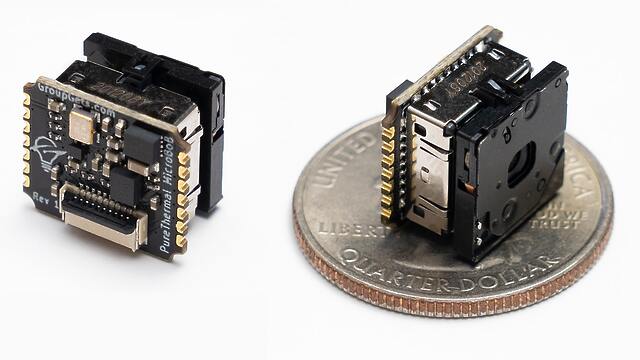

• Super compact 12.2x14mm form-factor that can be embedded into other modules
• Castellated edges for integrating the module with a PCB
• 10-pin FPC/FFC connector
• KiCAD footprint available on GitHub for easy integration into new designs

RESOURCES

• Datasheet - Rev2 May 2023
• STEP File
• Dimensional Drawing

DIAGRAMS

Units: mm, Tolerance: ±0.2mm

Product Specifications

Weight: 0.95g ± 0.1g

Input Voltage Range (VIN): 3.3-5V

Operating Voltage (Logic level): 3V

Lepton Core Support: Lepton 2.x, 3.x, FS

Thermal Video Output: SPI

Part Number: GG-PT-M-BOB

RoHS Compliant: Yes

Export Information

• Part Number: GG-PT-M-BOB
• ECCN: EAR99
• HTSUS: 9027.50.4020
• Country of Origin: USA
