FLIR ADK - Thermal Vision Automotive Development Kit

SKU:

$3,469.00 USD

Discounted Sold out

Taxes included.

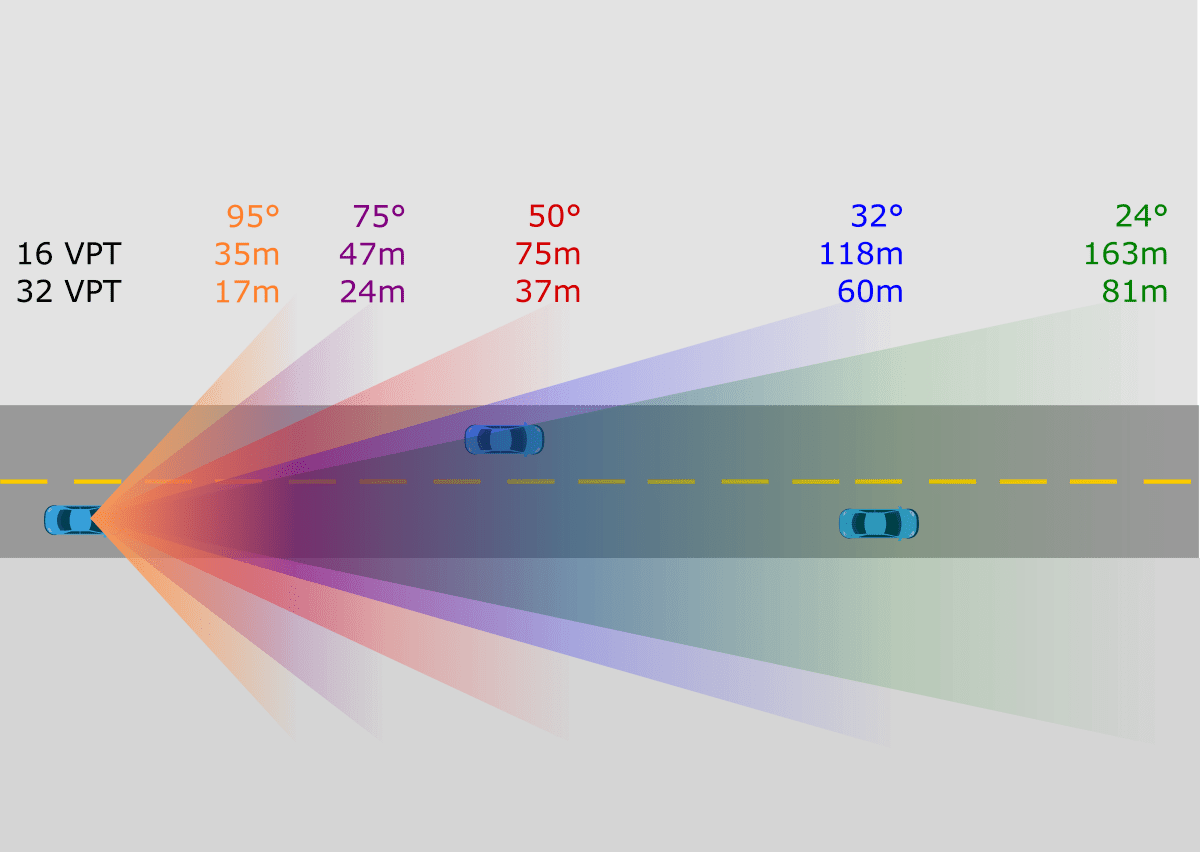

Focal Length 24° 32° 50° 75°

Connector USB GMSL1 GMSL2

Note Approximate 3 Weeks Lead Time

Quantity

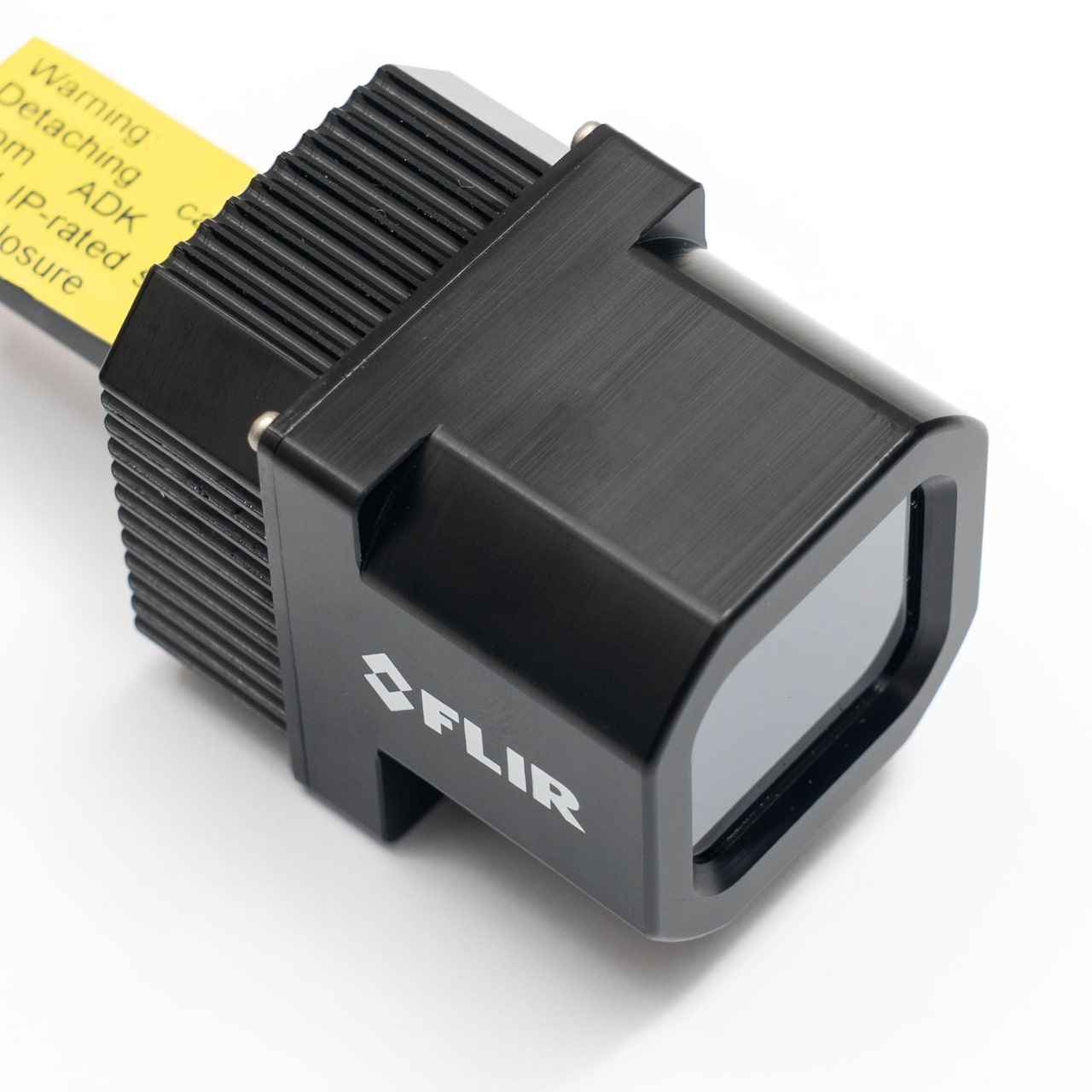

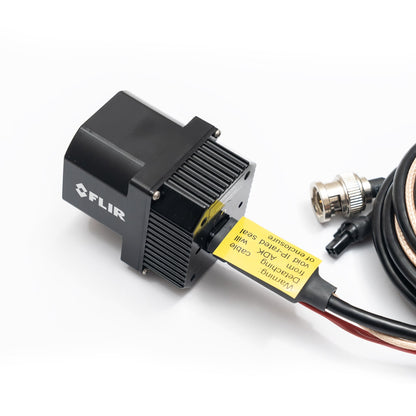

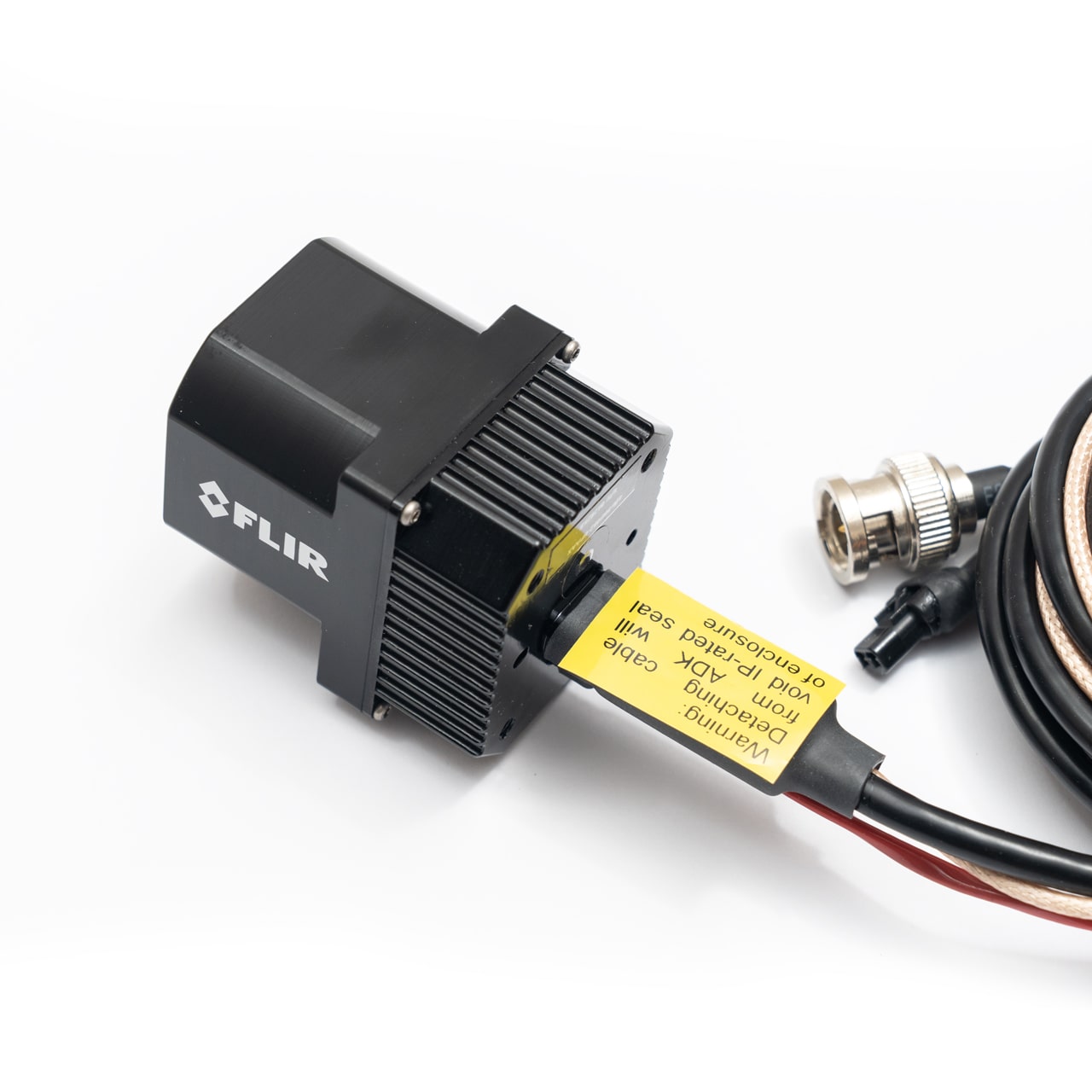

The FLIR ADK™ is a cost-effective way to develop the next generation of automotive thermal vision for advanced driver assistance systems (ADAS) and autonomous vehicles (AV). Thermal infrared cameras are the best sensor technology for pedestrian detection, reliably classifying people in cluttered environments and giving analytics the critical information needed for automated decision making. The ADK’s rugged, IP67 rated enclosure incorporates a heated window for all-weather driving. With the GMSL and USB interfaces, installation is plug-and-play easy.

Note: Only GMSL1 cameras work with the Ethernet BoB

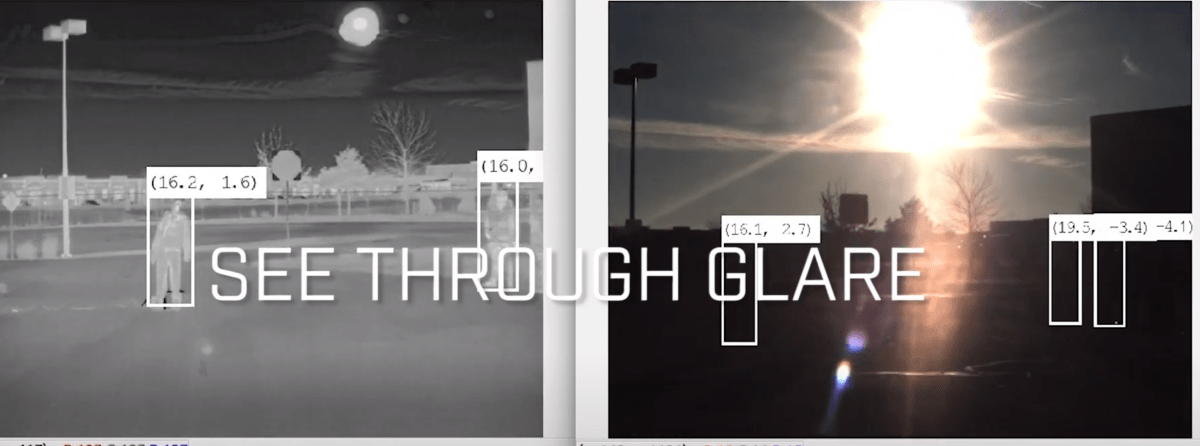

See Clearly, Even in Challenging Lighting Conditions

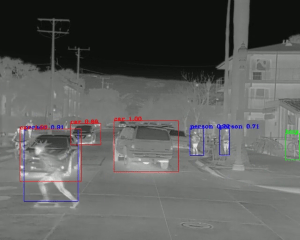

Thermal sensors create images from heat, not light, so they can detect pedestrians and oncoming vehicles regardless of lighting conditions.

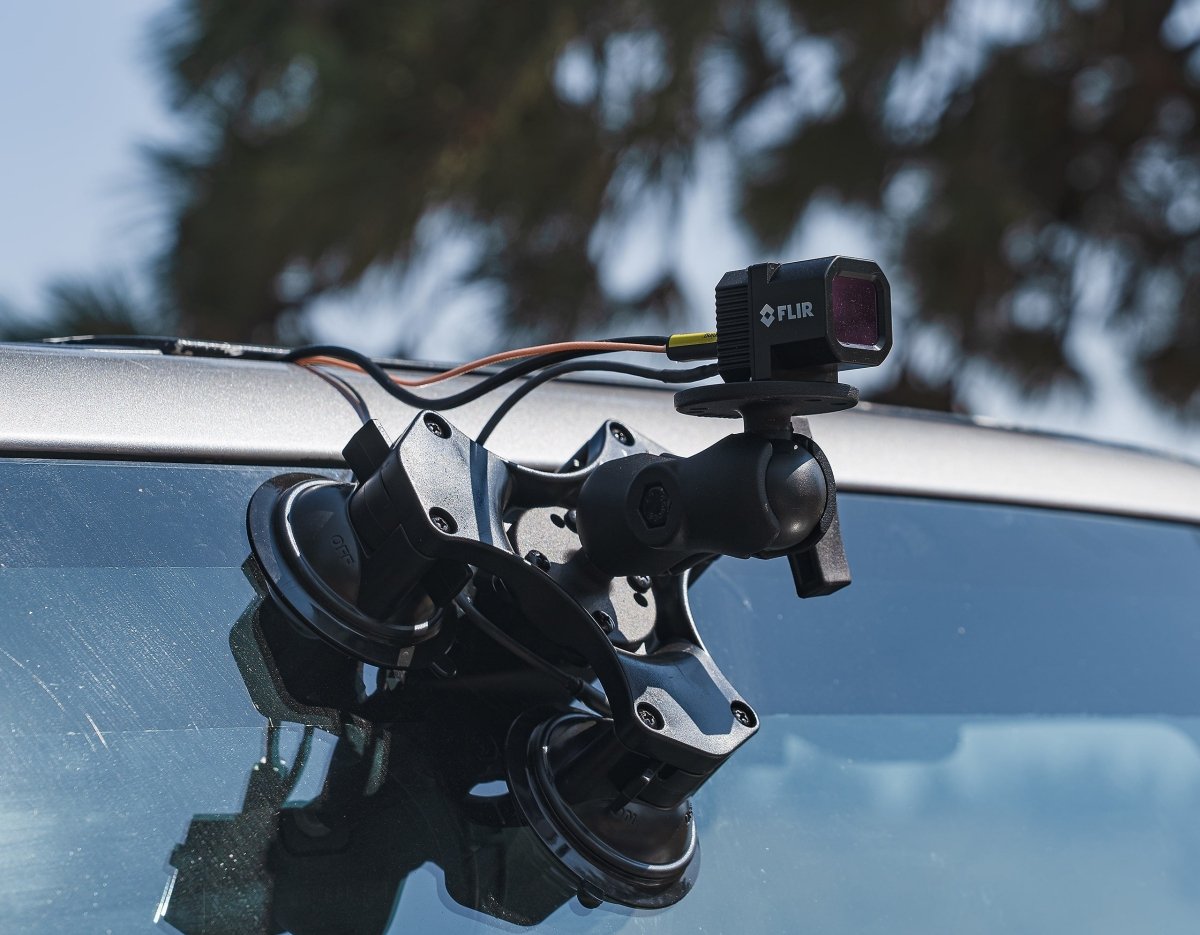

Next-Generation Thermal Vision is Plug-and-Play Easy

Start collecting thermal data in minutes.

Simple Interface Ports Data Directly into Analytics

Easy set-up, operation, and integration.

Specifications

Overview

Pixel Pitch: 12 µm
Spectral Band: 8-14 microns (LWIR)
Thermal Sensitivity: < 50 mK
Weight: ~100 gm (3.5 oz)

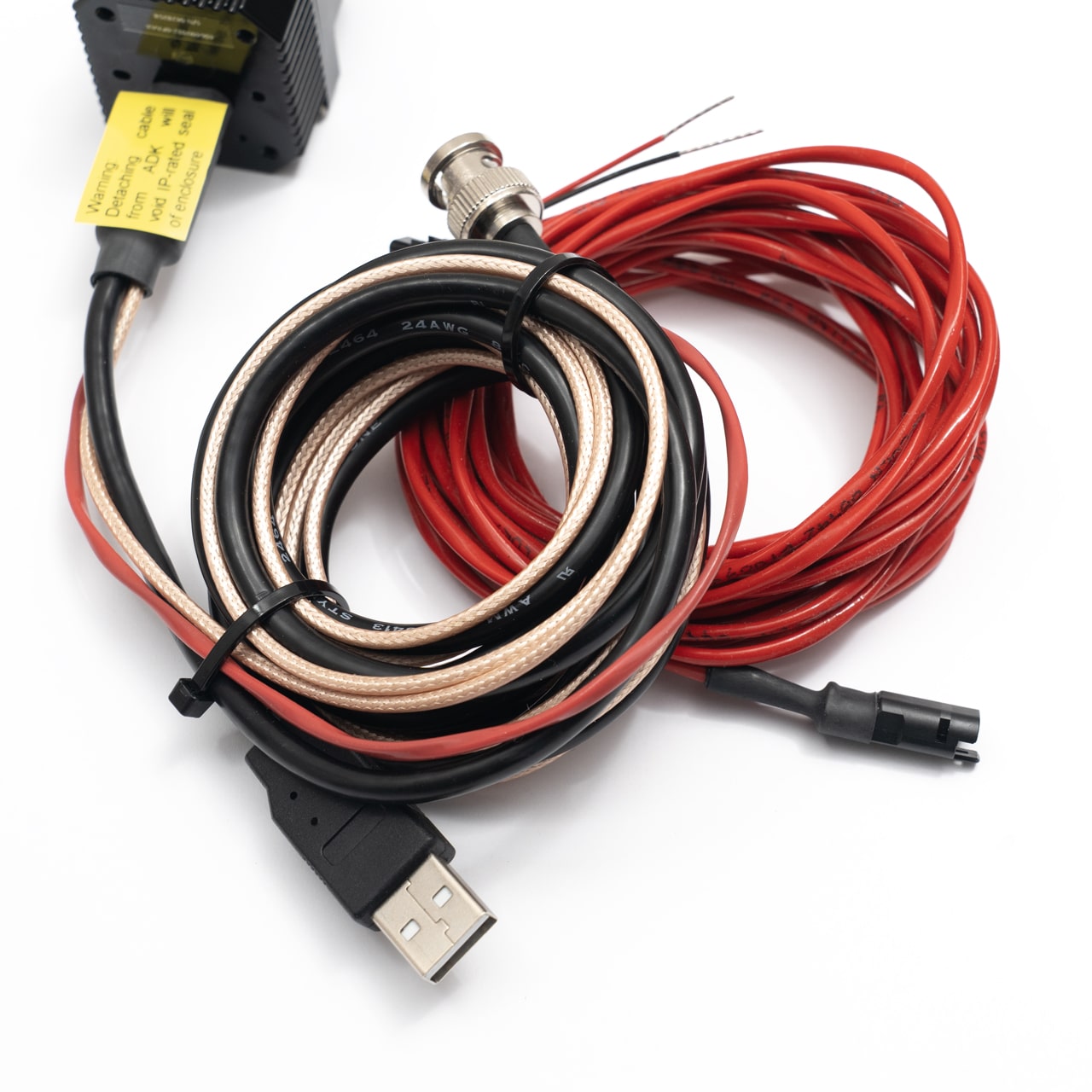

Camera Interface Options: USB, GMSL, Ethernet and FPD-link
Data Format: Software-selectable: 16-bit TIFF (raw sensor format) or compressed 8-bit

Environmental

Environmental Protection: IP67
Environmental & Approvals
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Shock: 1,500 G @ 0.4 msec
Imaging & Optical
Array format: 640 × 512
Frame Rate: Full Frame (30 & 60 Hz selectable), 9 Hz optional
Sensor Technology: Boson™ – Uncooled VOx microbolometer
Solar protection: Yes (sun will not damage sensor)

Physical

Dimensions (W x H x D): 35 × 40 × 47 mm (1.38 × 1.57 × 1.8 in)

Power

Power Consumption: 1 W (without heater); ~4 W average and 12 W maximum (with heater)
Power Requirements: Camera: 5 VDC (USB2) or 24 VDC (GMSL); Window Heater: 12 VDC (USB2) or 24 VDC (GMSL)

Resources

Important Notes

Removal of the camera from the housing will invalidate the warranty.
All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
All US orders will get 60Hz cameras unless you contact us (help@groupgets.com)
We can ship 60 Hz cameras to certain other countries (listed below) but it will require some additional documents before shipment. All other international orders will receive a 9Hz camera.
The authorized export, reexport and transfer countries for 60Hz cameras are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey, the United Kingdom.
