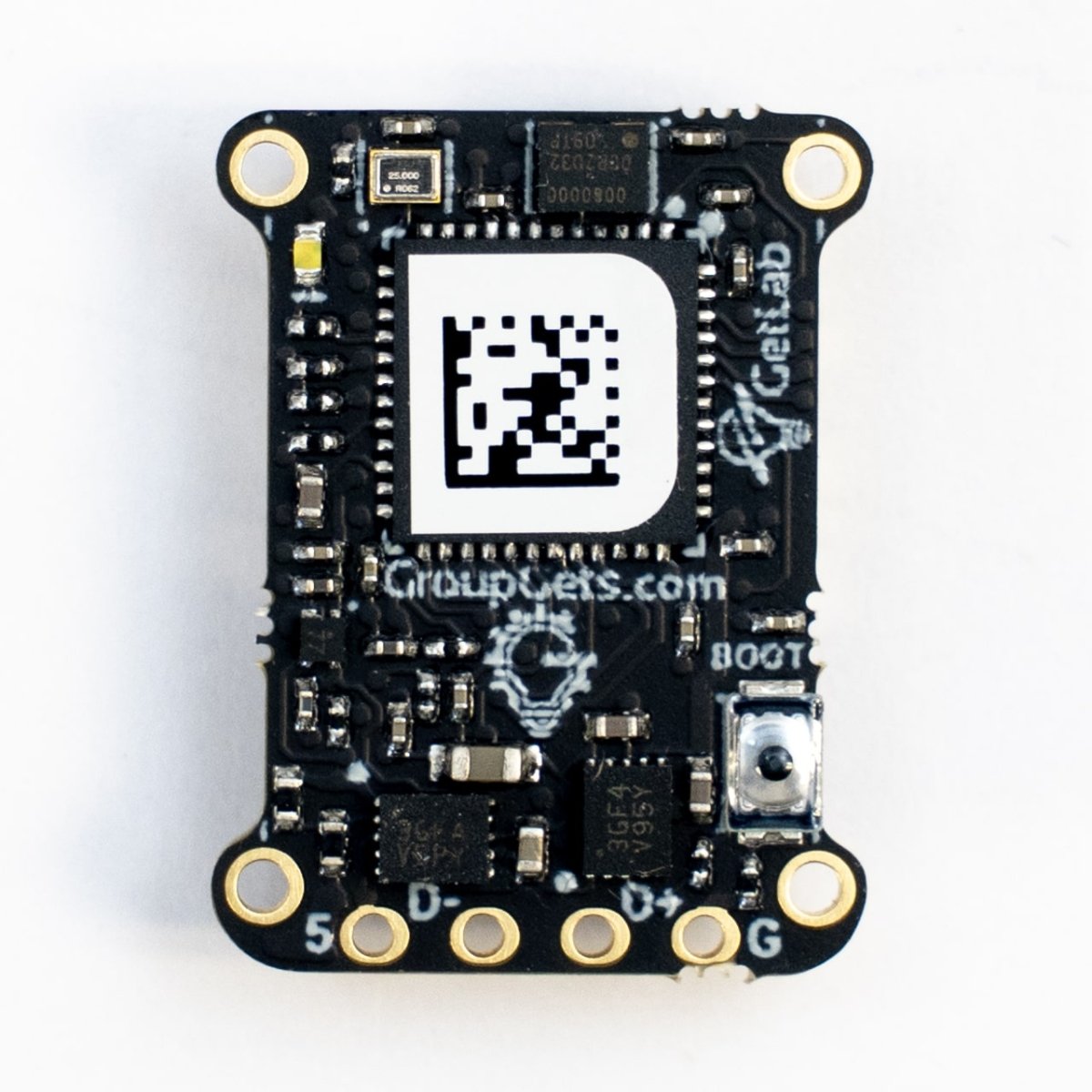

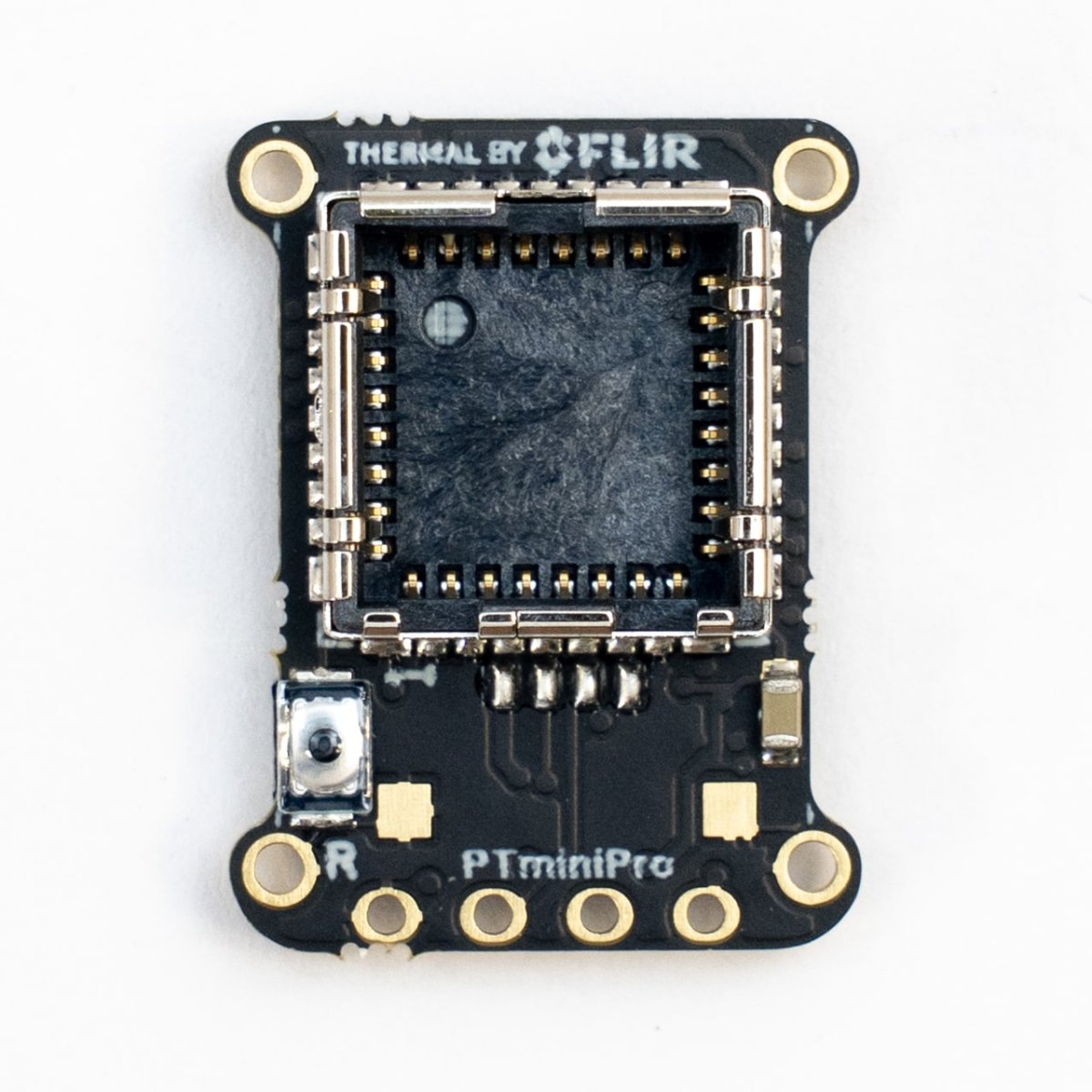

PureThermal Mini Pro No Connector

PureThermal Mini Pro is a hackable thermal webcam for the FLIR Lepton (2.x - 3.x) LWIR camera core. The No Connector version of this board is great if you plan to solder it to a different circuit board or solder wires straight onto the PTMini. The PTMini Pro also features four mounting holes, less complex circuitry, and perhaps best of all, USB DFU. This is a development kit ready to be embedded into a production system.

• STM32F412 ARM microprocessor. Execute on-board image processing without the need for an external system or SBC.
• USB UVC works on Windows, Linux, Mac, and Android.
• Open source reference firmware is on the GroupGets Github.
• Open source reference image viewer software for Linux and macOS.
• Solder straight to the board

We've been quietly working on the design for awhile and rest assured, we stuck with the same STM32F4 MCU so yours and our existing firmware will easily port.

Software

• GetThermal for x86 - Linux/macOS (open source)
• GetThermal for Raspberry Pi
• Multi PT1 Frame Grabber (beta, unofficial)
• FLIR Lepton Getting Started Guide and Windows GUI from FLIR

Export Information

• Part Number: PURETHERMAL-M-PRO-NOCONNECTOR
• ECCN: EAR99
• HTSUS: 9027.50.4020
• Country of Origin: USA

🕑Lead Time🕑

If you can add this item to your cart it is in stock and ready to ship
