PURE Engineering

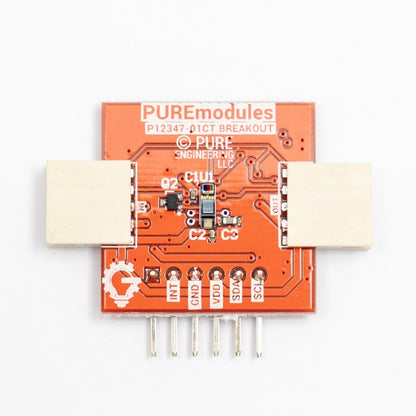

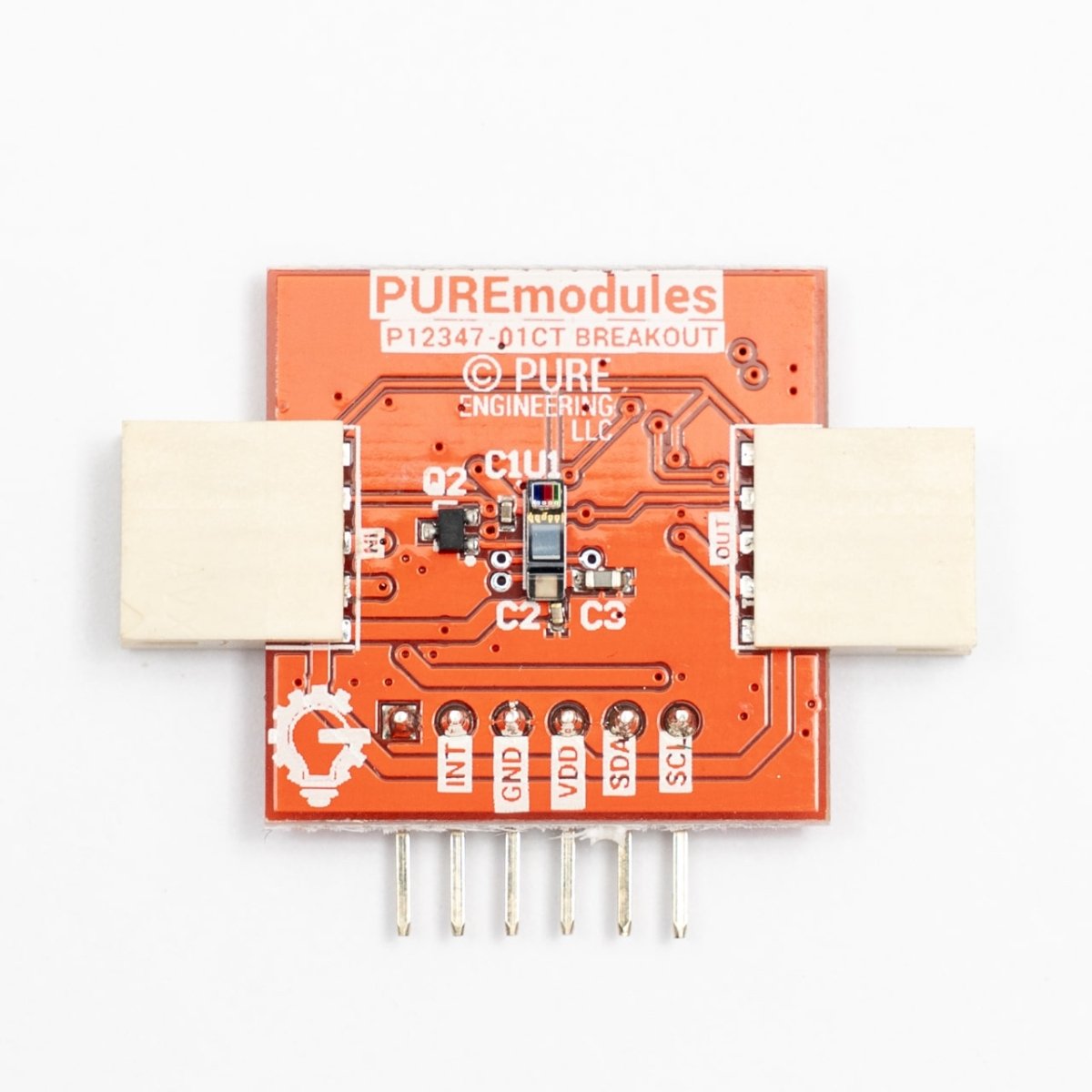

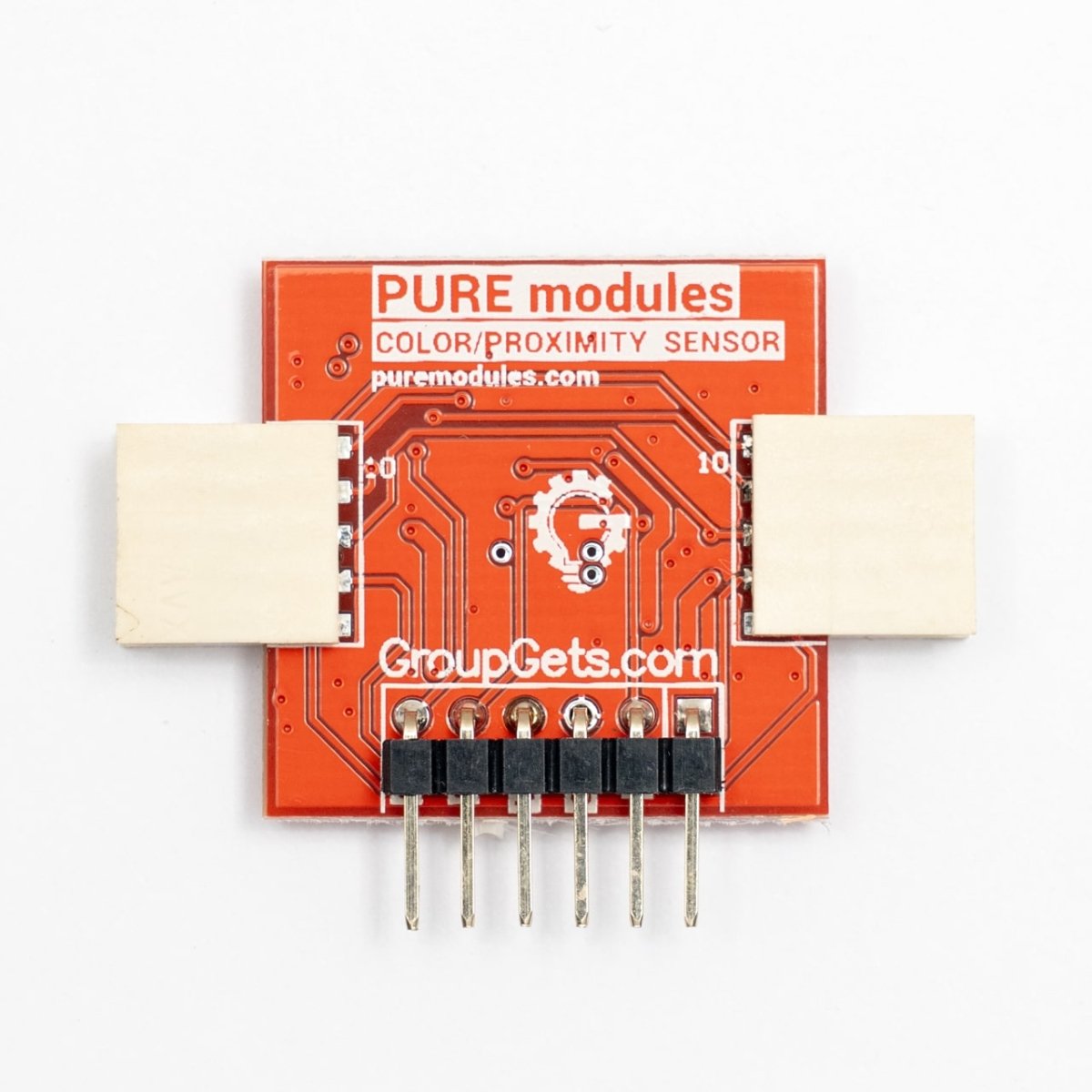

PUREmodules - Color/Proximity Sensor

PUREmodules - Color/Proximity Sensor


Regular price $24.99 USD
Regular price Sale price $24.99 USD
Discounted Sold out
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

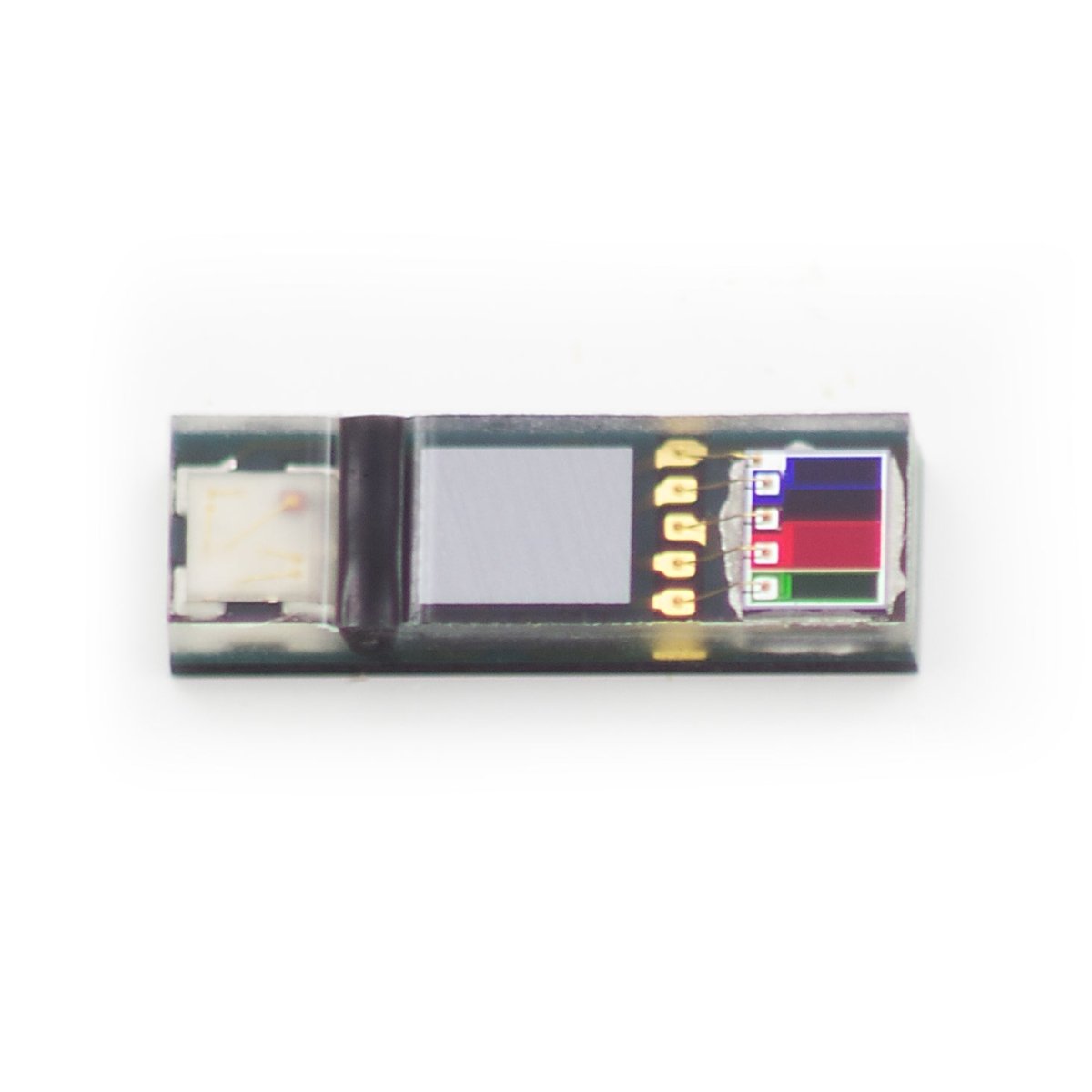

The Hamamatsu P12347-01CT sensor is a multifunctional sensor that incorporates a color sensor, proximity sensor, and 3-color LED in a small package (5.5 x 1.7 x 1.0 mm). It can be used to adjust the display image quality, perform touchscreen on/off control, indicate incoming calls, and so forth on smartphones and the like. The color sensor not only detects the RGB ratios of ambient light but also functions as an illuminance sensor. This feature enables image quality to be adjusted in fine detail. In smartphone applications, the proximity sensor detects when a face draws near turns off the touchscreen function and LCD backlight.



  • I2C interface 400 kHz, Fast mode
  • Low supply voltage: Vdd=2.25 V to 3.63 V
  • I2C bus voltage: 1.65 V
  • Low current consumption
  • Small package (5.5 x 1.7 x 1.0 mm)
  • Supports lead-free reflow soldering

Export Information

 Part Number: PM-COLORPROX
