PureThermal Breakout Board

The PureThermal Breakout Board is an easy to interface evaluation board used to quickly evaluate the FLIR Lepton® thermal camera modules.

Features

• Compatible with Lepton 2.x and 3.x
• Access to SPI and I2C camera module interfaces
• Provides 25-MHz reference clock
• Provides Power Regulation from 3.3-5V input
• 32-pin Molex camera socket for Lepton® Module
• PureModules compatible connector
• VSync and Enable Pins

Applications

• Thermal Imaging
• Non-contact temperature measurements
• Motion Sensing
• Night Vision
• Gesture Recognition

Specifications

• Power Inputs: 3.3-5V
• Maximum Input Voltage: 5V
• Lepton Core Support: Lepton 2.x and 3.x
• Thermal Video Outputs: SPI
• PureThermal Mini Part Number: GG-PURETHERMAL-BB1.0

Essential Resources

• PureThermal Breakout Board - Datasheet - 1.3 - October 5th 2020
• 3D STEP file

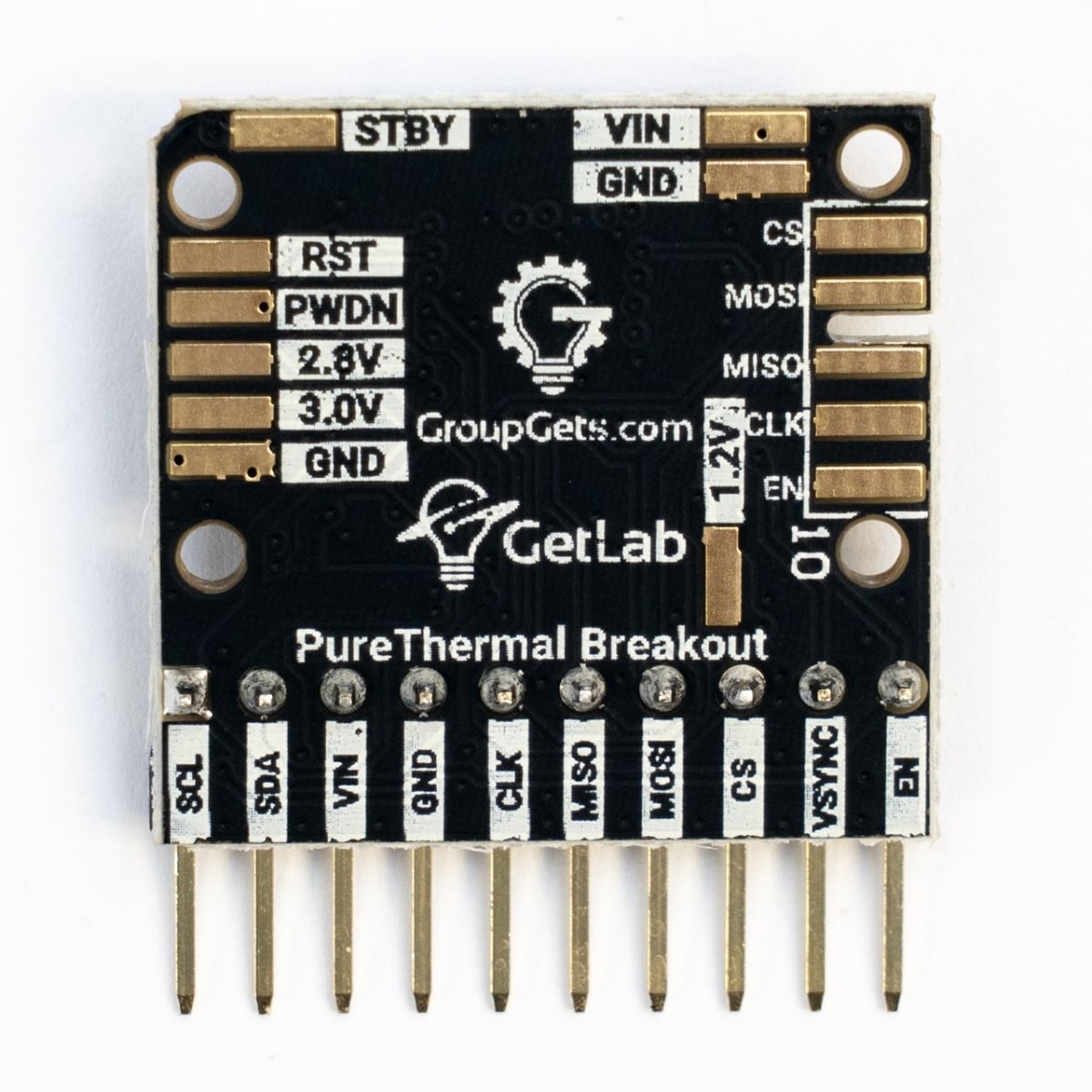

Pinouts

Pin 1 - SCL: Camera Control Interface Clock, I2C
Pin 2 - SDA: Camera Control Interface Data, I2C
Pin 3 - VIN: 3-5 V Supply input
Pin 4 - GND: Common Ground
Pin 5 - CLK: Video Over SPI Slave Clock
Pin 6 - MISO: Video Over SPI Slave Master In Slave Out
Pin 7 - MOSI: Video Over SPI Slave Master Out Slave In
Pin 8 - CS: Video Over SPI Slave Chip Select (active LOW)
Pin 9 - VSYNC: VSync
Pin 10 - EN: Enable, Active High

Export Information

• Part Number: GG-PURETHERMAL-BB1.0
• ECCN: EAR99
• HTSUS: 9027.50.4020
• Country of Origin: USA
