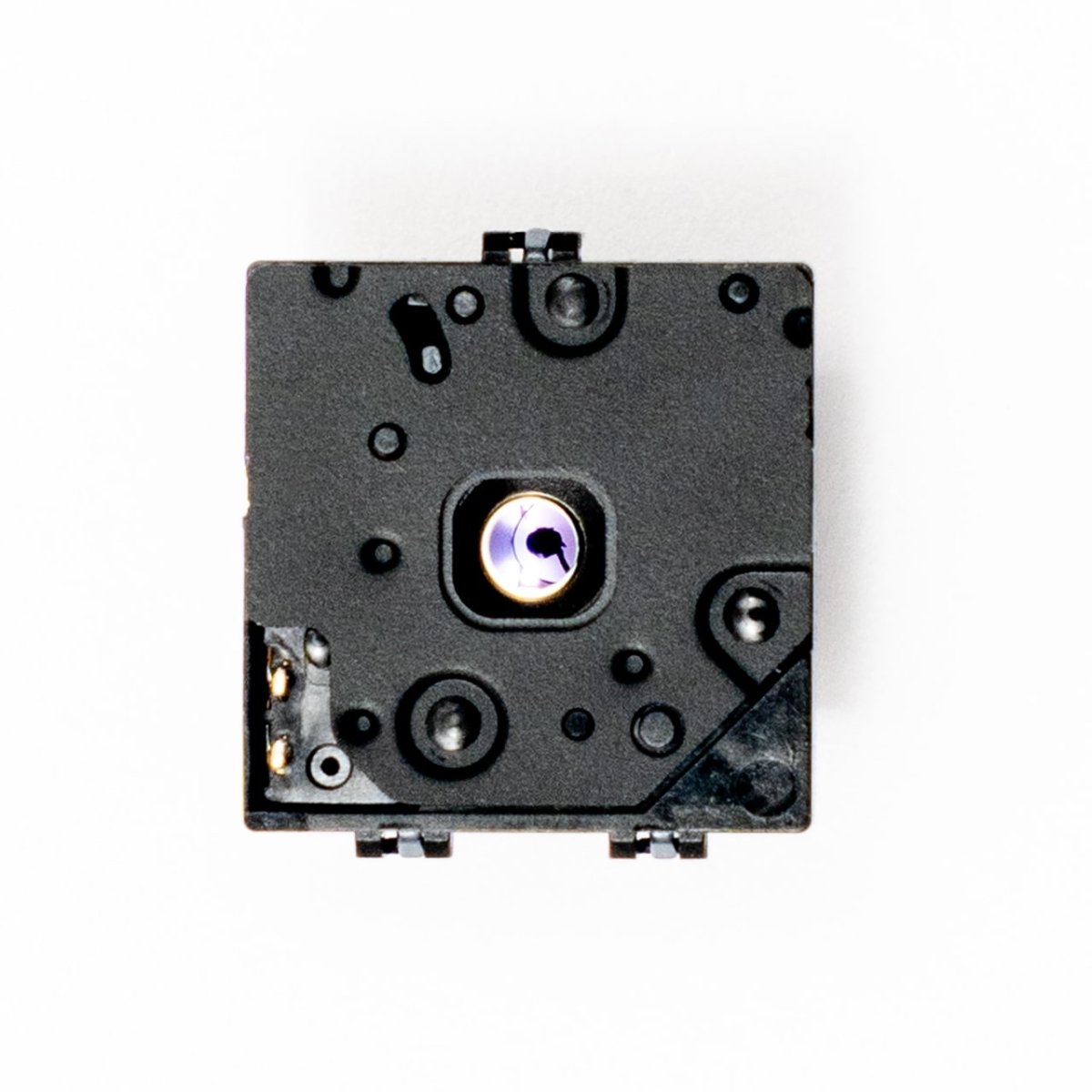

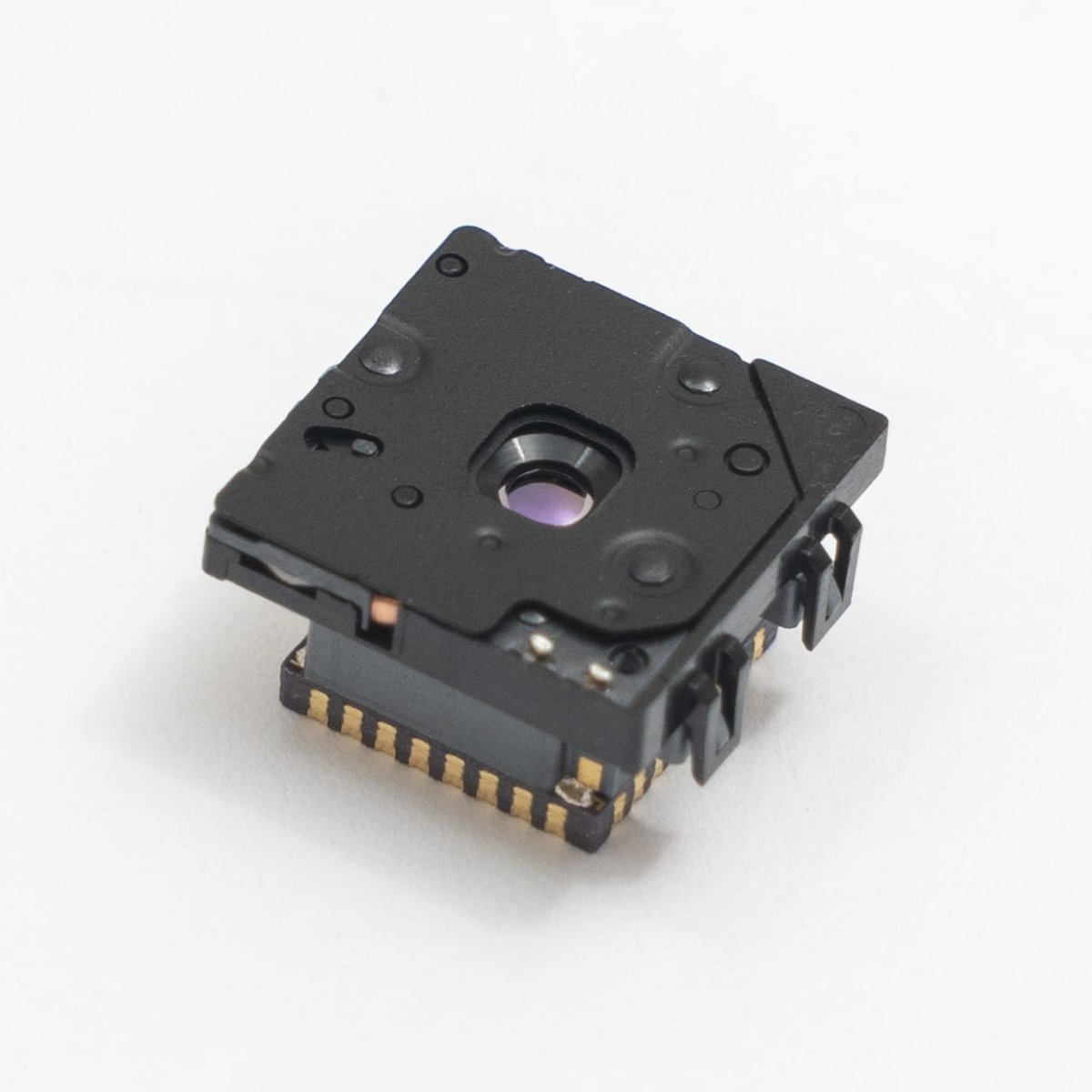

FLIR Lepton 3.5

The FLIR Lepton® is a radiometric-capable LWIR camera solution that is smaller than a dime, fits inside a smartphone, and is one tenth the cost of traditional IR cameras. Using focal plane arrays of either 160x120 or 80x60 active pixels, Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal imager. The radiometric Lepton captures accurate, calibrated, and noncontact temperature data in every pixel of each image.

This Model: Lepton 3.5, 160×120 pixels, 57° with shutter - Radiometric

Documentation

• Lepton Google Group
• Lepton Series Datasheet
• Lepton Engineering Datasheet Rev 400 (500-0659-00-09) - November 17th 2023
• Advanced Lepton Usage on Windows
• Getting Started with Lepton on Windows and PureThermal Basic Features
• Getting Started with the BeagleBone and Breakout Board V2.0
• Getting Started with the Raspberry Pi and Breakout Board V2.0
• Lepton with Radiometry Quick Start Guide
• Lepton vs Lepton 3-App Note

Mechanical

• IDD CAD data LEPTON 2.5, 80x60
• IDD CAD data LEPTON 3.5, 160x120
• IDD CAD data LEPTON 3.1R, 160x120

Software

• PureThermal Firmware
• FLIR Lepton SDK

Development Hardware

• GroupGets - PureThermal Mini Pro JST-SR
• GroupGets - PureThermal 3
• GroupGets - PureThermal Breakout Board
• GroupGets - PureThermal Micro Breakout Board
• GroupGets - PureThermal OpenMV
• FlyTron - DroneThermal v4
• Teledyne FLIR - FLIR Lepton Breakout Board v2.0
• danjuliodesigns LLC - tCam Mini v4
• danjuliodesigns LLC - gCore
• OpenMV - FLIR Lepton Adapter Module for OpenMV Cam H7

Tips for integrating Lepton into a Housing

• Recommended Material
  • PORON®
• Socket Stack
  • Socket > Lepton > Foam > Window > Enclosure
• Maximum Force
  • < 1Kg (more force will damage the shutter)
• The foam must be cut out so that it does not interfere with the mechanical shutter pins.
• Thickness
  • Depends on the enclosure and spacing, do not exceed 1Kg of force.

This Model: Lepton 3.5, 160×120 pixels, 57° with shutter - IS Radiometric

Important Information

• PureThermal 1/2/3/Mini/Pro with Radiometric FLIR Lepton 2.5, 3.5, 3.1R requires specialized software to show radiometry.
• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will email you with the document within a few business days.
• We can only ship FLIR Lepton to North America, Australia, United Kingdom, Switzerland, and the European Union Countries. Any orders with a FLIR Lepton with a delivery address other than those will be canceled and refunded. We are sorry for the inconvenience.
• RoHS Certificate of Compliance European Directive No 2015/863
• Declaration of Compliance REACH Regulation (EC) No. 1907/2006
• California Proposition 65 Declaration
• ECCN: CAM 6A993A
• HTSUS: 9027.50.4020
• Country of Origin: USA
• Part Number: 500-0758-03

🕑Lead Time🕑

If you can add this item to your cart it is in stock and ready to ship
