PureThermal Mini Pro JST-SR

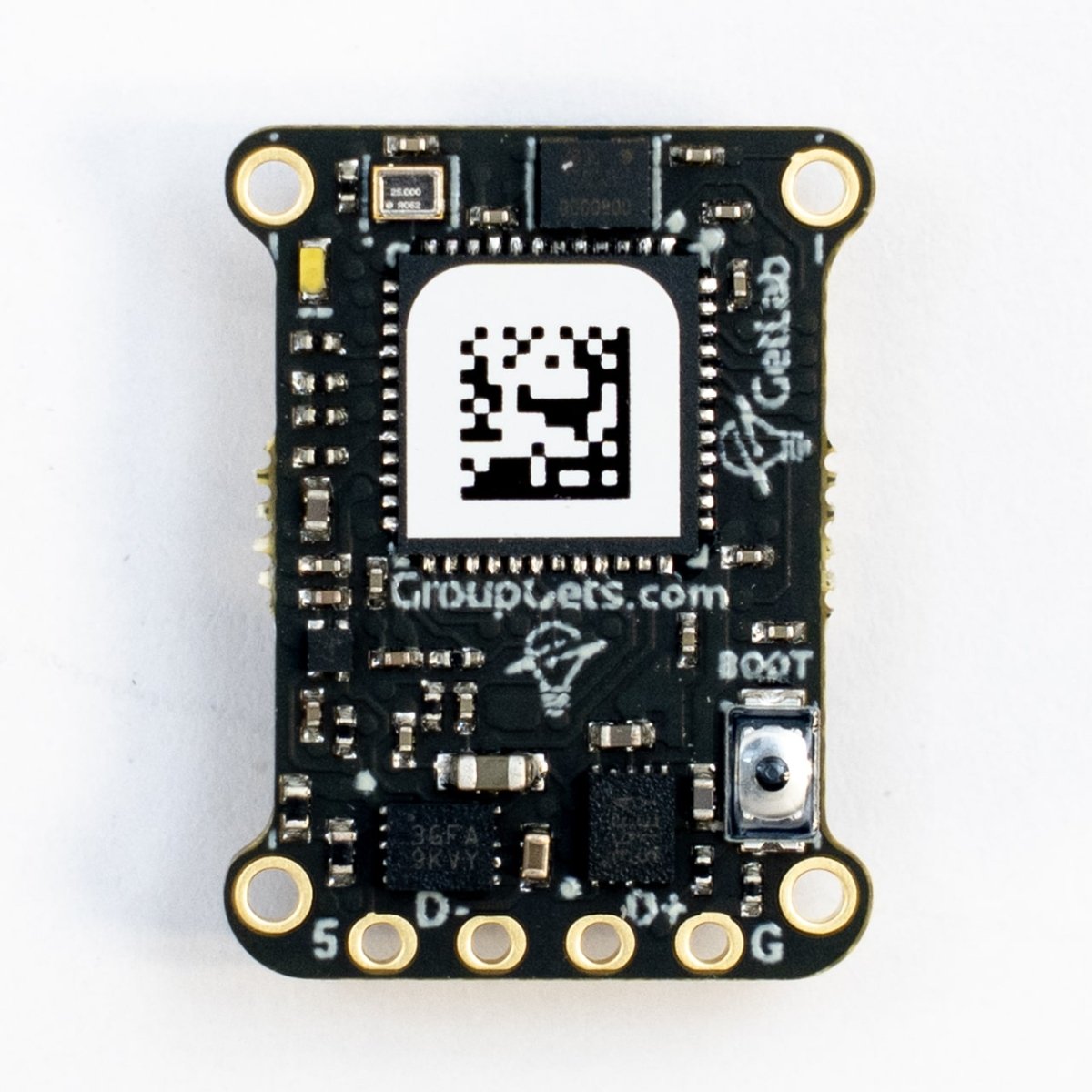

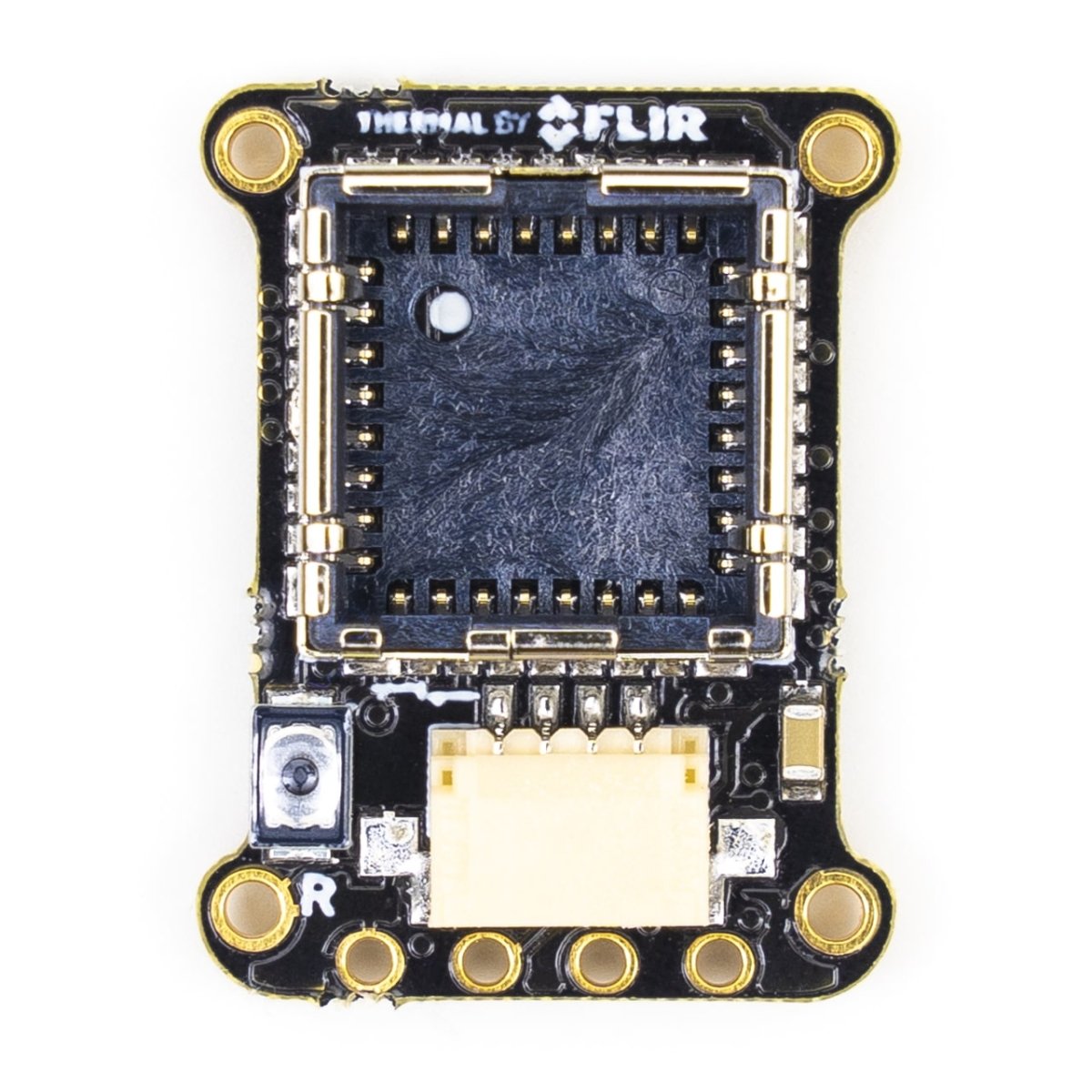

PureThermal Mini Pro JST is a hackable thermal webcam for the FLIR Lepton (2.x, 3.x, R, FS, and UW) LWIR camera cores. It has multiple connection options such as solder straight to the board or a custom cable using the JST-SR port. The PTMini Pro also features four mounting holes, and perhaps best of all, USB DFU. This is a development kit ready to be embedded into a production system.

Features

• Compatible with all FLIR Leptons 2.x, 3.x, R, FS, and UW
• 9 Hz color video over usb using the USB UVC class
• STM32F412 ARM microprocessor - execute on-board image processing without need for an external system
• Open source reference firmware: GroupGets PureThermal Github
• DFU over USB using a JST-SR port to USB cable, or a modified USB cable and the through holes.
• Four mounting holes
• Compact form-factor ready to be embedded into production systems

Hardware

• Schematic
• Dimensions: Board Height: 19.15mm, Board Width: 15.32mm, Mounting Hole Height: 16.5mm, Mounting Hole Width: 12.5mm

Resources

• PureThermal Mini Pro JST-SR - Datasheet v1.1 - January 28th 2021
• Lepton Engineering Datasheet Rev 400 - November 17th 2023
• Eclipse IDE and JTAG debugging setup
• PT2 UVC Capture Examples
• Android App Releases
• Setting up a Windows Development Environment for PureThermal 1/2
• Lepton Software Interface Description Document (IDD) Rev 303
• STEP File

Firmware & Software

• PureThermal Firmware Github

Export Information

• Part Number: PURETHERMAL-M-PRO-JST
• ECCN: EAR99
• HTSUS: 9027.50.4020
• Country of Origin: USA
