PureThermal Mini USB

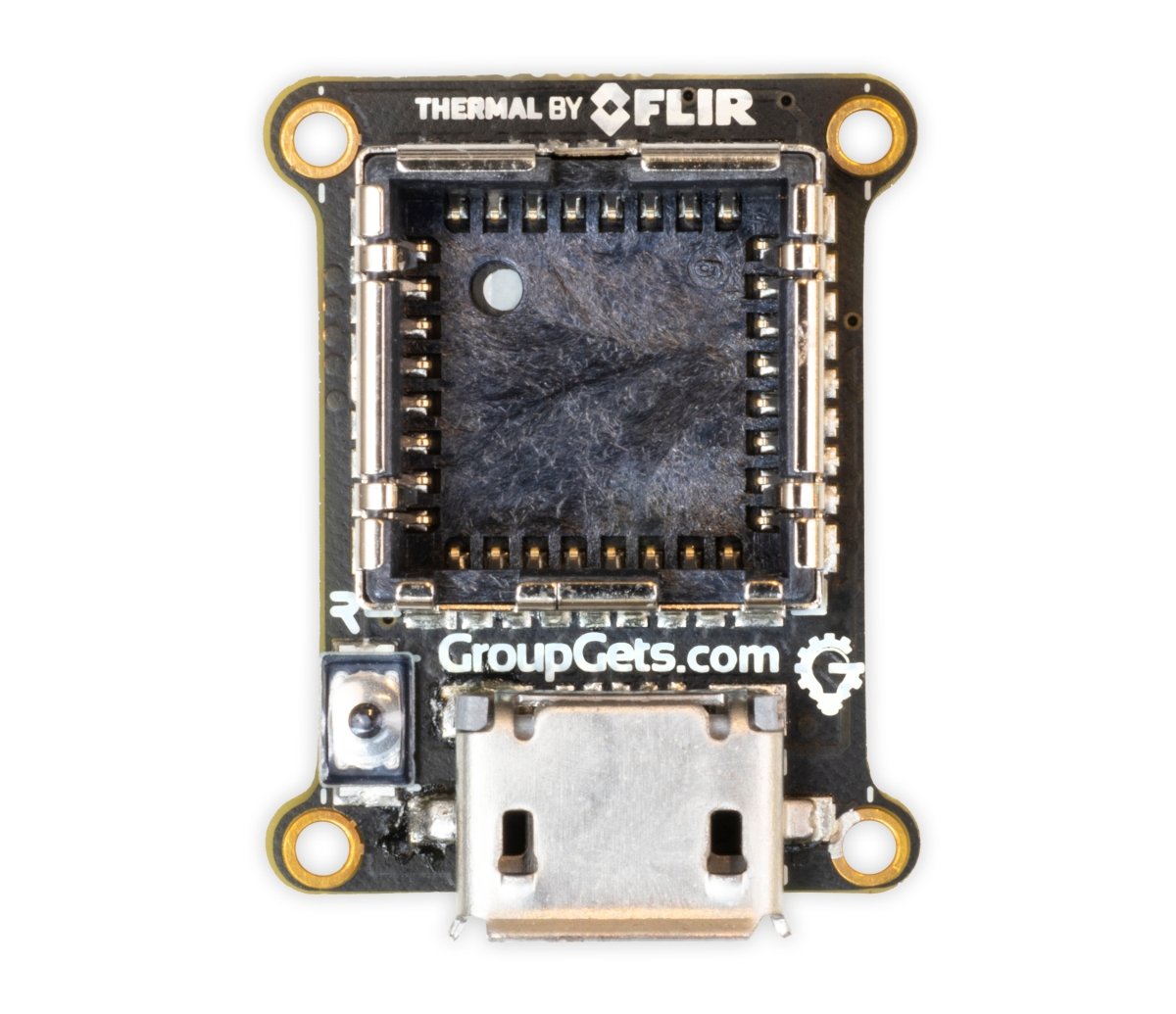

PureThermal Mini Smart I/O Module with Thermal by FLIR® is a hackable thermal USB webcam for the FLIR Lepton® thermal imaging camera core. It ships pre-configured to operate as a plug-and-play UVC 1.0 USB thermal webcam that will work with standard webcam and video apps on all major platforms.

Features

• Get Thermal video over USB right out of the box using common apps like VLC Media Player on Mac, Linux, PC, or even Android (see video below).
• Power Input, Video Output, and Firmware Updates All Over USB (micro B type connector)
• Compatible with all production FLIR Leptons, including radiometric 2.5 and 3.5 cores
• Use one standard and included USB type A to micro B cable for all major functions
• USB UVC works on Linux, macOS, Windows, and Android
• 9 Hz color video over usb using the USB UVC class

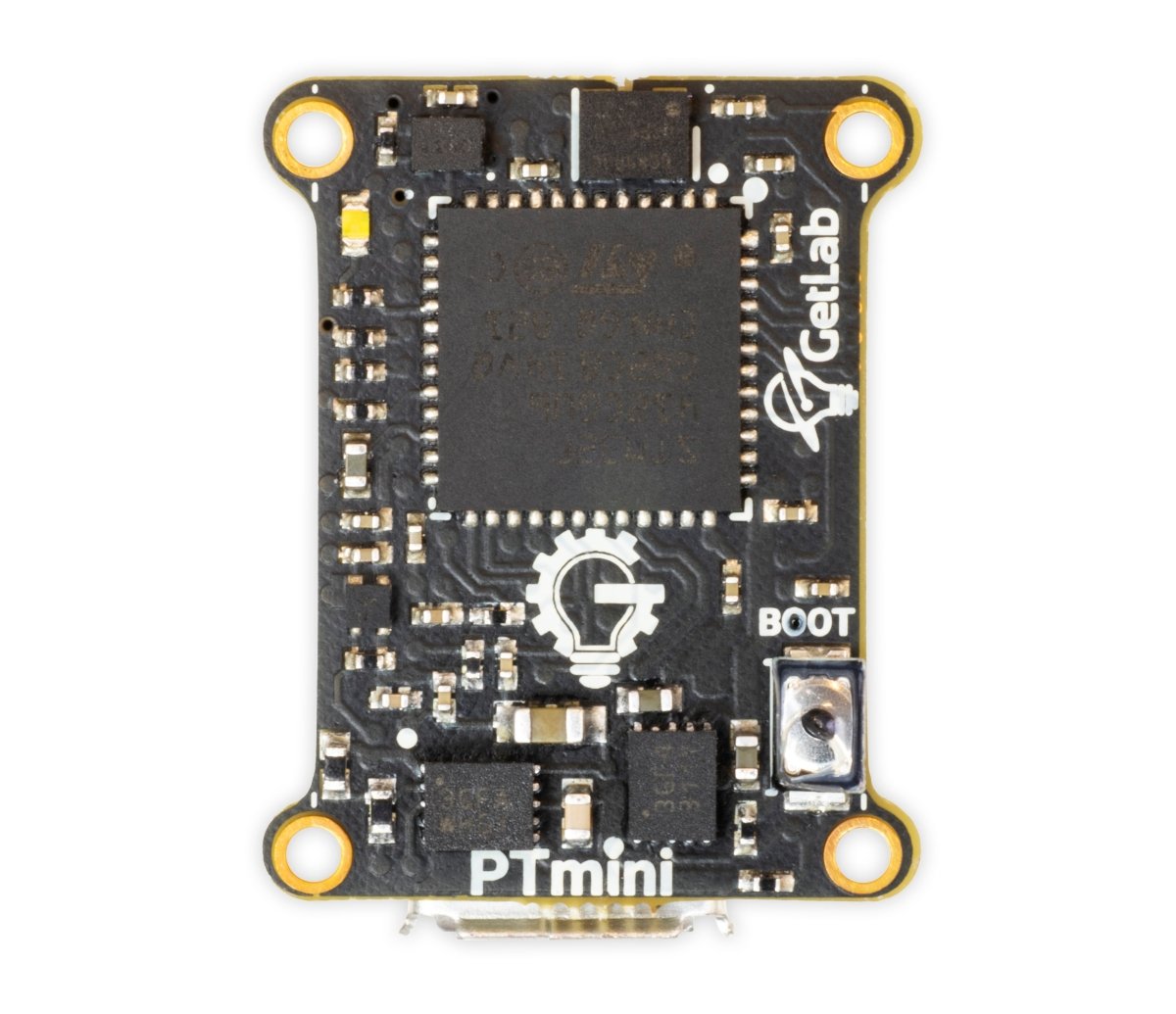

• STM32F412 ARM microprocessor - execute on-board image processing without need for an external system
• Open source reference firmware: GroupGets PureThermal Github
• Works with GetThermal - our custom open source thermal video display software for macOS and Linux with radiometric support
• DFU over USB
• Four mounting holes
• Compact form-factor ready to be embedded into production systems

Software

• GetThermal for x86 - Linux/macOS (open source)
• GetThermal for Raspberry Pi
• Multi PT1 Frame Grabber (beta, unofficial)
• FLIR Lepton Getting Started Guide and Windows GUI from FLIR

Export Information

• Part Number: PURETHERMAL-MINI-USB
• ECCN: EAR99
• HTSUS: 9027.50.4020
• Country of Origin: USA

🕑Lead Time🕑

If you can add this item to your cart it is in stock and ready to ship
