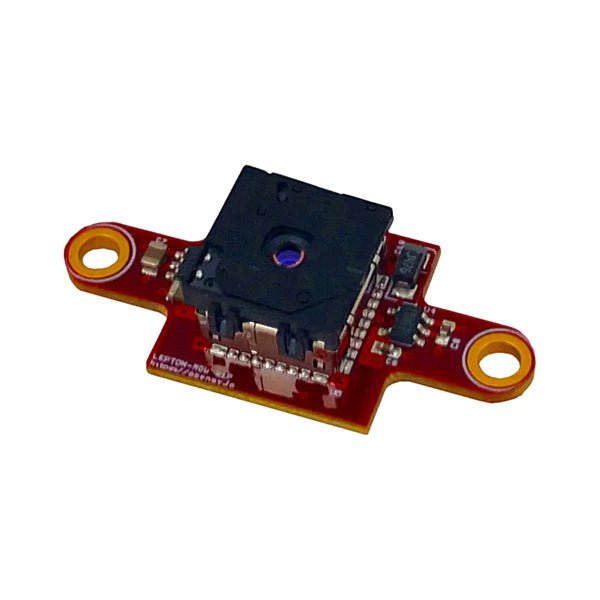

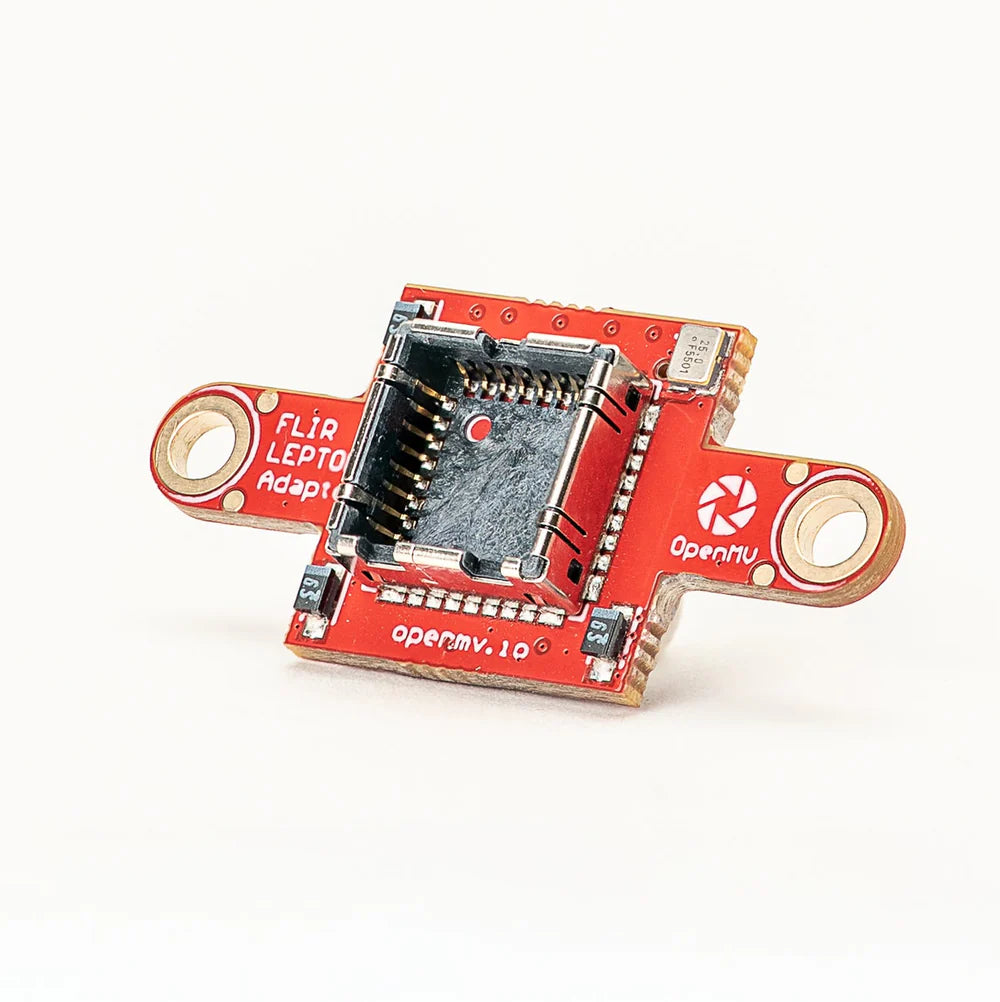

OpenMV - FLIR Lepton Adapter Module

The Teledyne FLIR® Lepton® Adapter Module allows your OpenMV Cam to interface with the FLIR® Lepton® 1/2/3 Thermal Imaging sensors for Thermal Vision applications.

FLIR Lepton Sold Separately

Applications

By using thermal imaging, your OpenMV Cam can see in the dark in conditions with no external lighting. FLIR® Lepton®s are extremely useful for tracking living things in environments and for measuring the temperature of objects.

Our API allows you to get either an AGC image, which can be used for computer vision but lacks exact thermal values, or a direct thermal image in which pixel values map directly to temperature. For the direct-mapped image, you must set a minimum and maximum temperature, which are used to clamp and scale all temperature values to the 0-255 grayscale pixel range. A color palette can be optionally applied in either mode to get a colorful image.

Schematic & Datasheets

• FLIR® Lepton® Adapter Module Schematic (.pdf)
• Eagle Schematic (.sch)
• Eagle Board (.brd)
• FLIR® Lepton® Data Sheet
• FLIR® Lepton® Application Note

Important Notes

• GroupGets does not provide software or coding support.
