Lepton® 3.5 by TELEDYNE FLIR

Description

The radiometric Lepton 3.5 is the latest addition to FLIR’s micro thermal camera family and brings with it some unexpected surprises such as an increased operating temperature range to +80˚C and a massively extended scene dynamic range from -10˚ to +400˚C in low gain mode. Leverage 19,200 (160x120) pixels worth of calibrated radiometric output from this tiny yet mighty microelectronic masterpiece. This significant technology upgrade over its predecessors maintains the same form-factor as the 1.x to 3.0 cores so existing Lepton-based hardware can be easily updated utilizing the same socket.

Lepton 3.5 is fit for prime-time products as demonstrated by the success of the FLIR One Pro and the new Cat S61 Rugged Smartphone that recently won PCMag’s Best of MWC 2018. See our extensive catalog of in-house developed hardware and software resources below to help you create your own prime-time product with Lepton 3.5.

Lepton 3.5 Uncooled VOx Microbolometer Specifications

• Thermal sensitivity: < 50 mK (0.050˚C)
• Spectral Range: 8 - 14 microns (nominal) Long Wave Infrared (LWIR)
• Resolution: 160h x 120v pixels
• Radiometric Accuracy - High Gain Mode: Greater of +/- 5°C or 5% (typical); Low Gain Mode: Greater of +/- 10°C or 10% (typical)
• Scene Dynamic Range - High Gain Mode: -10° to +140°C; Low Gain Mode: -10° to +400°C (at room temperature), -10° to +450°C (typical)
• Pixel Size: 12 micrometers
• Frame Rate: 8.7 Hz (effective)
• Output Format: User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)
• Horizontal Field of View (HFOV): 57°
• Lens Type: f/1.1
• Size (w x l x h): 10.50 x 12.70 x 7.14 mm
• Weight: 0.9 grams
• Power Consumption: 150 mW typical, 650 mW during shutter event, 5mW standby
• Optimum Operating Temperature Range: -10˚ to + 80˚C
• Get it Now!



Documentation

• Lepton Google Group
• Lepton Engineering Data Sheet rev 204
• Lepton Software Interface Description Document (IDD) rev 303
• Lepton on FLIR's Maker Site

Mechanical

• FLIR Lepton 2.5 and 3.5 3D Model (step)

Software

• GroupGets GetThermal Viewer (Linux and macOS)
• FLIR Lepton User App for Windows v1.3.2
• PureThermal Firmware
• FLIR Lepton SDK

Development Hardware

• PureThermal Mini Pro JST-SR

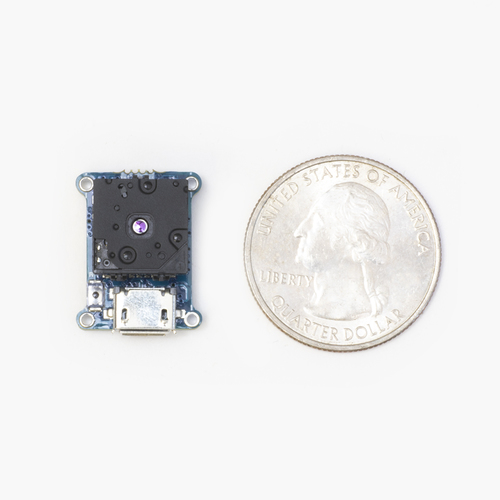

• PureThermal Mini - FLIR Lepton Smart I/O Module
• PureThermal 2 FLIR Lepton Smart I/O Module by GetLab
• PureThermal Breakout Board

Tips for integrating Lepton into a Housing

• Recommended Material
  • PORON®
• Socket Stack
  • Socket > Lepton > Foam > Window > Enclosure
• Maximum Force
  • < 1Kg (more force will damage the shutter)
• The foam must be cut out so that it does not interfere with the mechanical shutter pins.
• Thickness
  • Depends on the enclosure and spacing, do not exceed 1Kg of force.

Important Information

• PureThermal 1/2/Mini/Pro with Radiometric FLIR Lepton 3.5 requires specialized software to show radiometry such as GetThermal.
• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will email you with the document within one business day.
• Important information for customers in Russia. Due to recent US regulations we are no longer able to ship FLIR thermal camera cores to these countries/territories. Any orders containing these products from these countries will be canceled and refunded. We are sorry for the inconvenience.
• We can only ship this product with a Lepton to North America, Australia, and the European Union Countries. Any orders for this product with a Lepton placed in a country other than those will be canceled and refunded. We are sorry for the inconvenience.
