Lepton® 2.0 by TELEDYNE FLIR

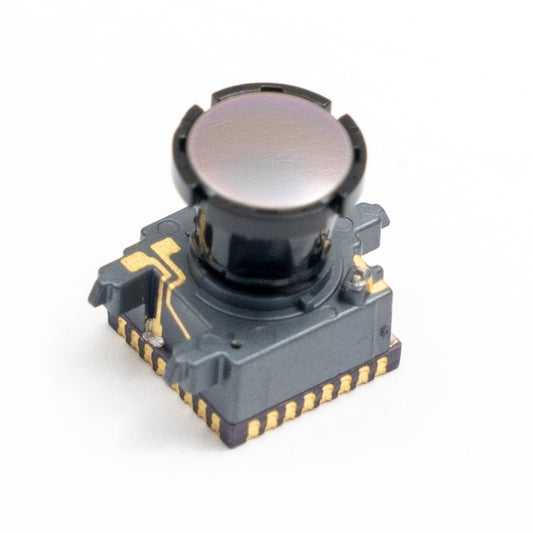

Description

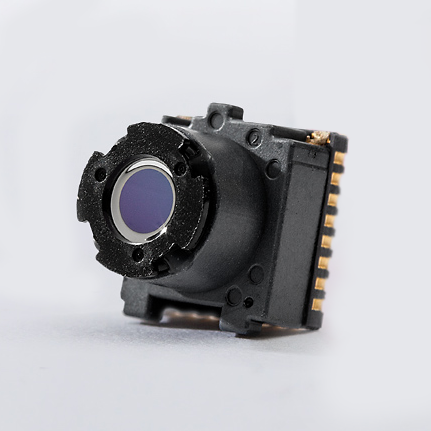

The FLIR Lepton 2.0 camera core is a long-wave infrared (LWIR) thermal imaging breakthrough in size, power consumption, and price. It currently packs a resolution of 80x60 pixels into a 8.5 x 11.7 x 5.6 mm package that draws only 150 mW nominally. The frame rate is 9 Hz at a spectral response wavelength range of 8 - 14 microns (nominal) and it can be purchased for under $200 in single quantities. Lepton 2.0 is the same thermal imager inside of the first generation FLIR One and the CAT S60 Rugged Smartphone. The new Lepton 3.0 with twice the resolution is available now in our store. Looking for a radiometric Lepton? The Lepton 2.5 is the only radiometric Lepton core available at this time.

Critical Specifications (Lepton 2.0)

• Spectral Response: 8 - 14 microns (nominal) Long Wave Infrared (LWIR)
• Resolution: 80h x 60v pixels
• Frame Rate: 9 Hz. 30 Hz variants are available to select parties
• Horizontal Field of View (HFOV): 25˚, 50˚, and 50˚ with shutter
• Size: 8.5 x 11.7 x 5.6 mm
• Required Digital Interfaces: I2C for command and control register get/set, SPI for image frame grab
• Required System Voltages: 1.2 V Core, 2.8 V Sensor, I/O tolerant from 2.5 V to 3.1 V
• Power Consumption: 150 mW
• Get it Now



Try our new GetThermal App for any Lepton using a PureThermal 1 on the Mac OS & Linux. Example Image below:

The FLIR Lepton is enabling new innovations in industry, science, smartphones, and medicine worldwide. We are proud to have enabled thousands of developers worldwide by being first to make Lepton available in sub-1000 quantities in 2014. We also aim to lower its technical barrier of entry with our custom hardware and open-source software and firmware. Below is a thermal image from Lepton using our latest, the PureThermal 1 FLIR Lepton Smart I/O Module, a hackable USB thermal webcam.

Why use a thermal imager?

1. Contactless temperature measurement over relatively long distances
2. Human or animal presence detection in day or night
3. Finding hot spots on circuit boards without burning your finger (our favorite)
4. Human position detection in day or night with more privacy offered than a daylight camera (you don't see EVERY detail)
5. Gesture recognition for contactless control in apps like gaming and smart homes
6. Human vs. robot detection
7. Disease and distress detection
8. Search, rescue, and collision avoidance with UAV/UAS and robotics platforms
9. Detecting "motorized doping"
10. Detecting air and fluid leaks

The list above barely scratches the surface of Lepton's potential which is what makes this product special. This technology used to only be available at 10x the cost and in larger package size, heavier weight, and greater power consumption making it not suitable for low-cost and portable solutions.

50 degree Lepton DOF/Distance test

The FLIR Lepton 2.0 currently comes in three major variants:

1. 50˚ HFOV
2. 50˚ HFOV with shutter and automatic flat-field correction (FFC) ideal for low-noise images especially with static scenes
3. 25˚ HFOV



This video compares the three different Lepton variants

Documentation

• Lepton Google Group
• Lepton Series Datasheet
• Lepton Engineering Data Sheet rev 204
• Lepton Software Interface Description Document (IDD) rev 303 Advanced Usage
• Advanced Lepton Usage on Windows
• Getting Started with Lepton on Windows and PureThermal Basic Features
• Getting Started with the BeagleBone and Breakout Board V2.0
• Getting Started with the Raspberry Pi and Breakout Board V2.0
• Lepton with Radiometry Quick Start Guide
• Lepton vs Lepton 3-App Note

Mechanical

• FLIR Lepton 2.5 and 3.5 3D Model (step)
• IDD CAD data LEPTON 2.5, 80x60
• IDD CAD data LEPTON 3.5, 160x120
• IDD CAD data LEPTON 3.1R, 160x120

Software

• GroupGets GetThermal Viewer (Linux and macOS)
• FLIR Lepton User App for Windows v1.3.2
• PureThermal Firmware
• FLIR Lepton SDK

Development Hardware

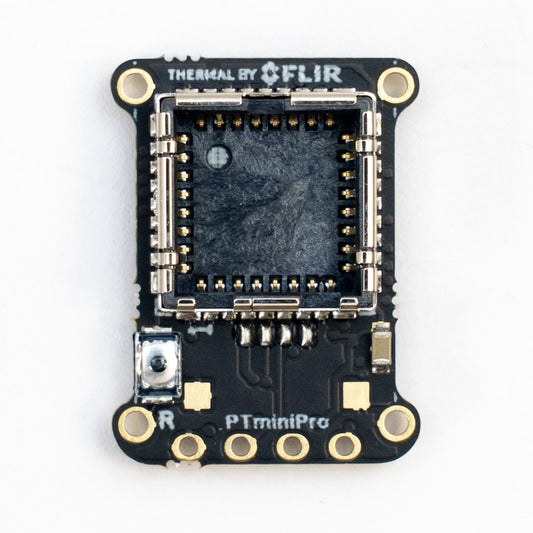

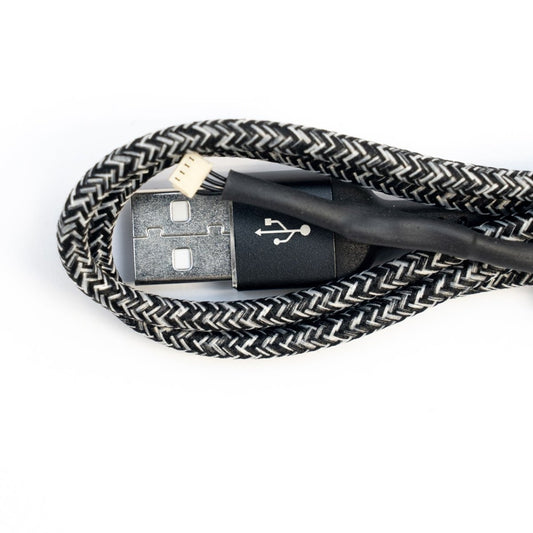

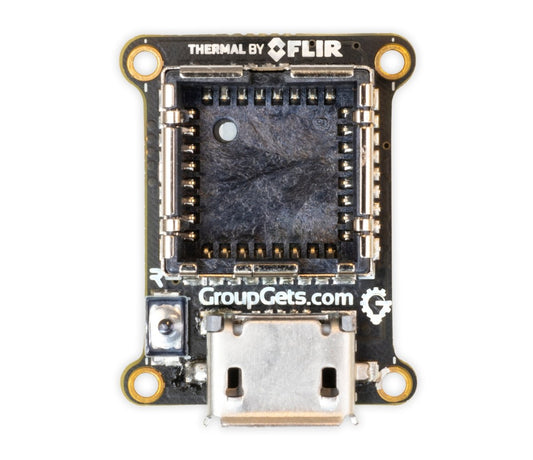

• GroupGets - PureThermal Mini Pro JST-SR
• GroupGets - PureThermal 3

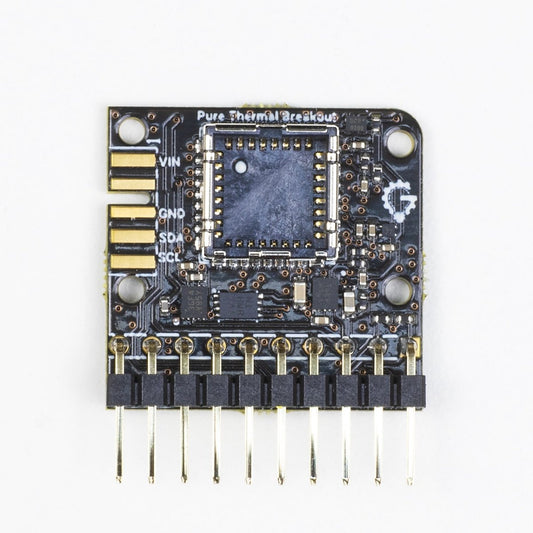

• GroupGets - PureThermal Breakout Board

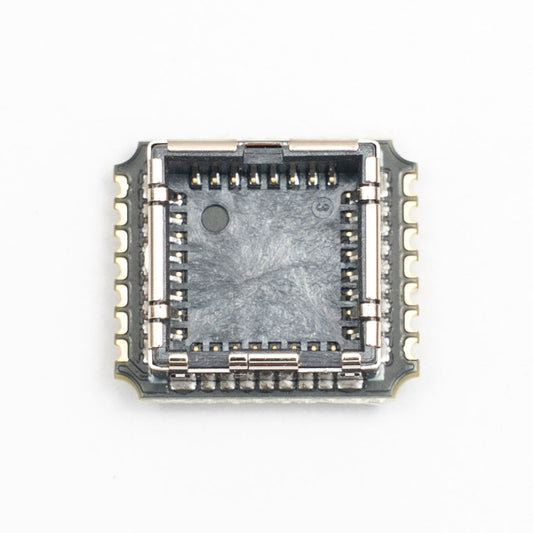

• GroupGets - PureThermal Micro Breakout Board
• GroupGets - PureThermal OpenMV

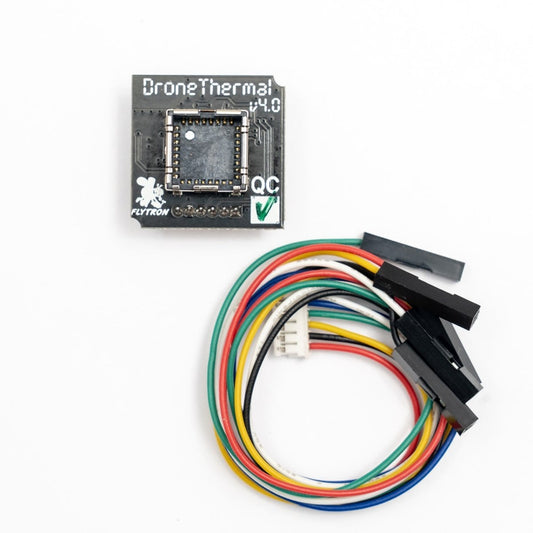

• FlyTron - DroneThermal v4
• Teledyne FLIR - FLIR Lepton Breakout Board v2.0

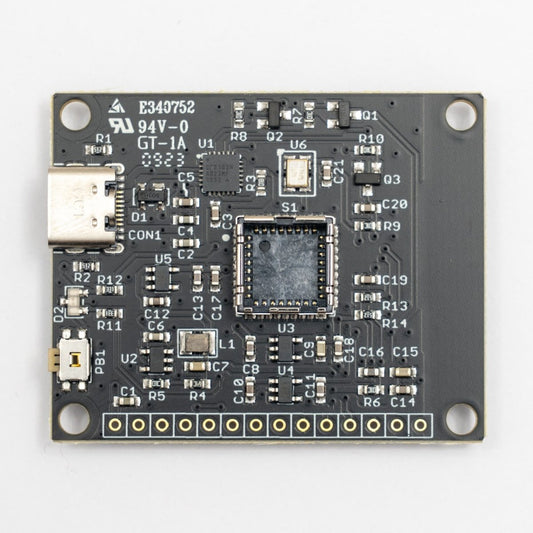

• danjuliodesigns LLC - tCam Mini v4
• danjuliodesigns LLC - gCore
• OpenMV - FLIR Lepton Adapter Module for OpenMV Cam H7

Tips for integrating Lepton into a Housing

• Recommended Material
  • PORON®
• Socket Stack
  • Socket > Lepton > Foam > Window > Enclosure
• Maximum Force
  • < 1Kg (more force will damage the shutter)
• The foam must be cut out so that it does not interfere with the mechanical shutter pins.
• Thickness
  • Depends on the enclosure and spacing, do not exceed 1Kg of force.

This Model: Lepton 2.0, 80×60 pixels, 50° with shutter - NOT Radiometric

Important Information

• PureThermal 1/2/3/Mini/Pro with Radiometric FLIR Lepton 2.5, 3.5, 3.1R requires specialized software to show radiometry such as GetThermal.
• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will email you with the document within a few business days.
• We can only ship FLIR Lepton to North America, Australia, United Kingdom, Switzerland, and the European Union Countries. Any orders with a FLIR Lepton with a delivery address other than those will be canceled and refunded. We are sorry for the inconvenience.
• RoHS Certificate of Compliance European Directive No 2015/863
• Declaration of Compliance REACH Regulation (EC) No. 1907/2006
• California Proposition 65 Declaration
• ECCN: CAM 6A993A
• HTSUS: 9027.50.4020
• Country of Origin: USA
• Part Number: 500-0659-01
