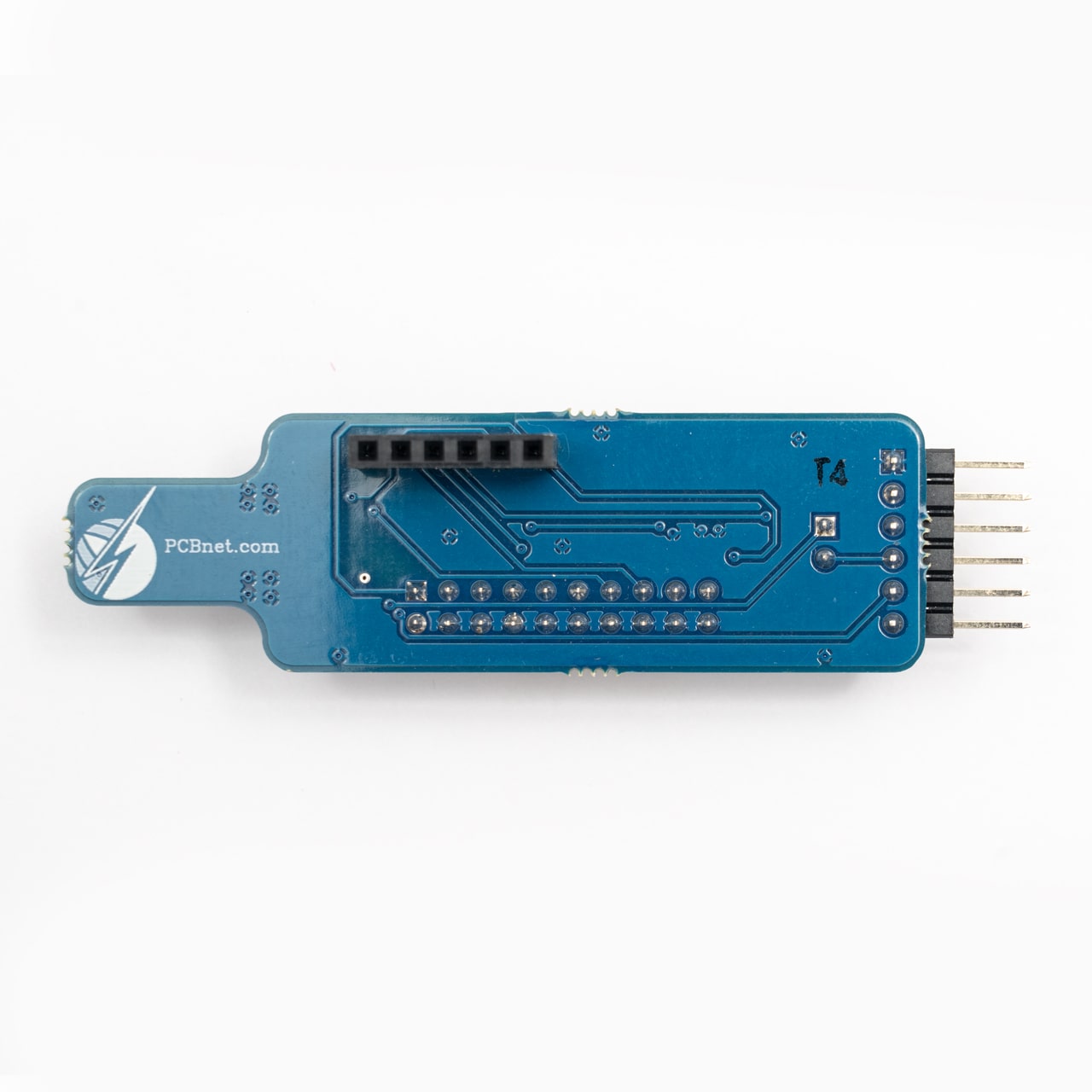

ARM MCU JTAG Adapter
ARM MCU JTAG Adapter
If you’re still using your PureThermal 1, the ARM MCU JTag Adaptor is perfect for you. Its made to flash and debug the PT1 system via JTAG.
SKU:
Couldn't load pickup availability

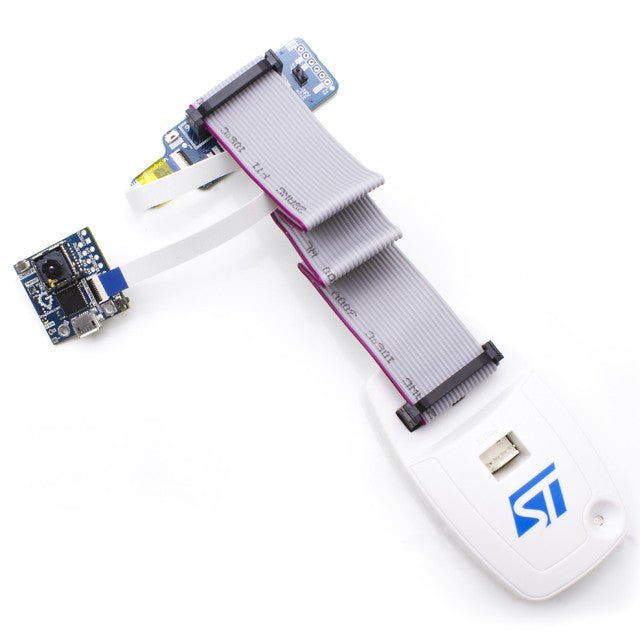

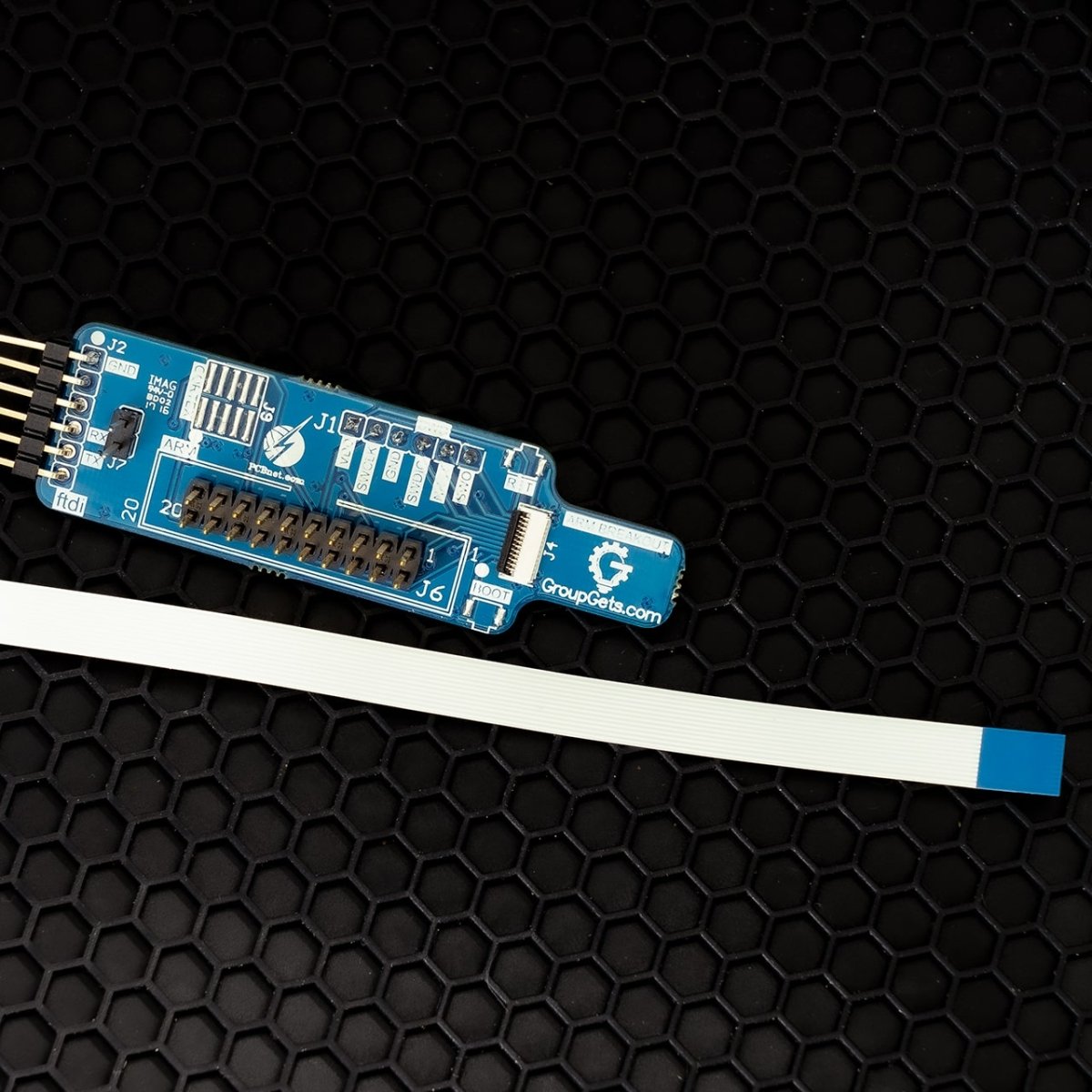

This ARM MCU JTAG Adapter can be used to flash and debug the PureThermal 1 system via JTAG by connecting the included ribbon cable to both board’s flat flex connectors (FFC). You will also need an ST-Link/V2 around (which costs about $22 at Digi-Key) connected over USB to flash/debug PT1. If you are planning on using this for another project make sure that it uses the same flat flex connector as this adapter (Molex Part #: 5034801200).

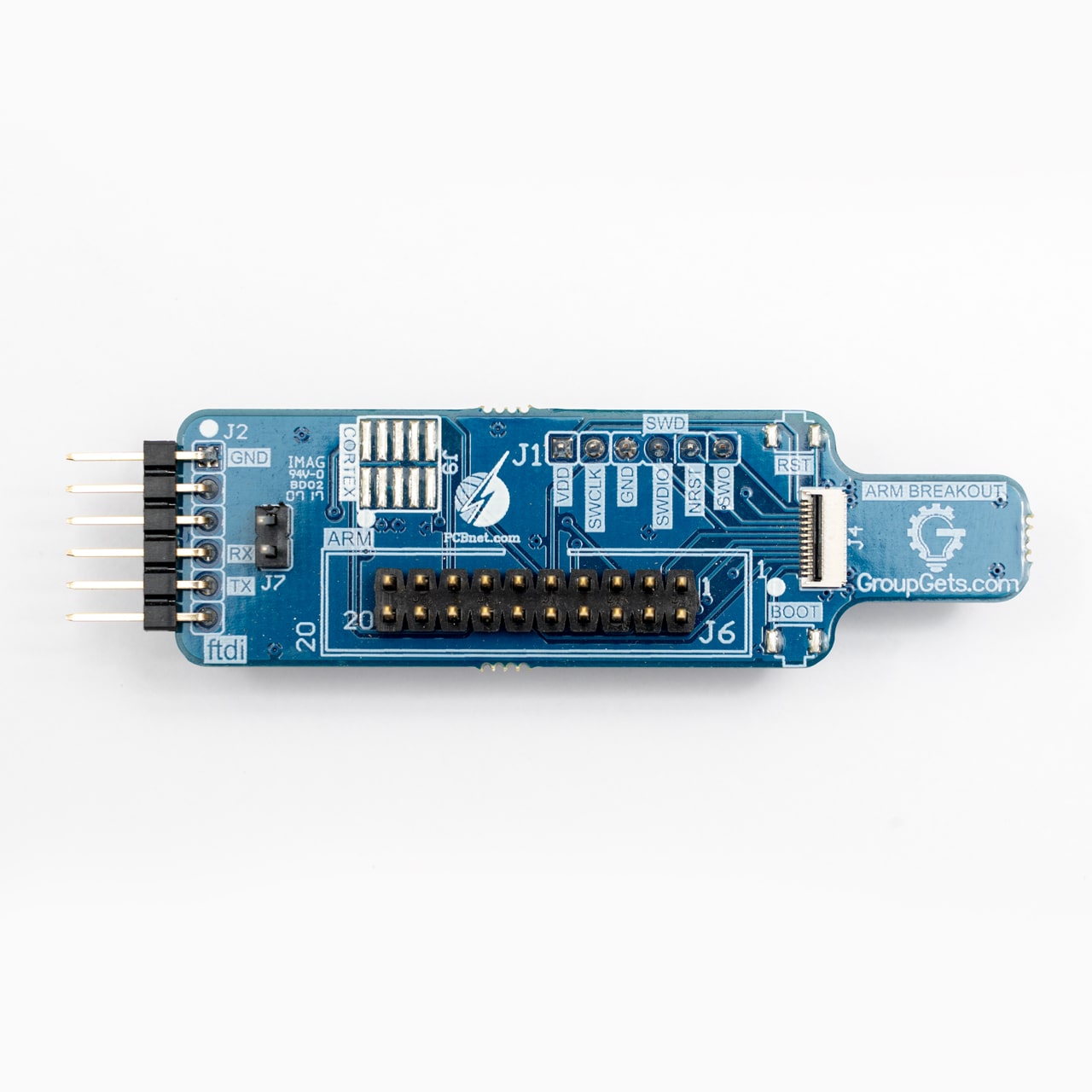

This adapter also has a SWD port and conveniently breaks out ARM Cortex JTAG along with FTDI serial and power signals so it can be used on your other projects as a handy multi-purpose debugging tool for anything with an FTDI serial port.
Resources
- Schematic PDF
- The ribbon connector type is a Molex 5034801200
Export Information
Part Number: GG-28
