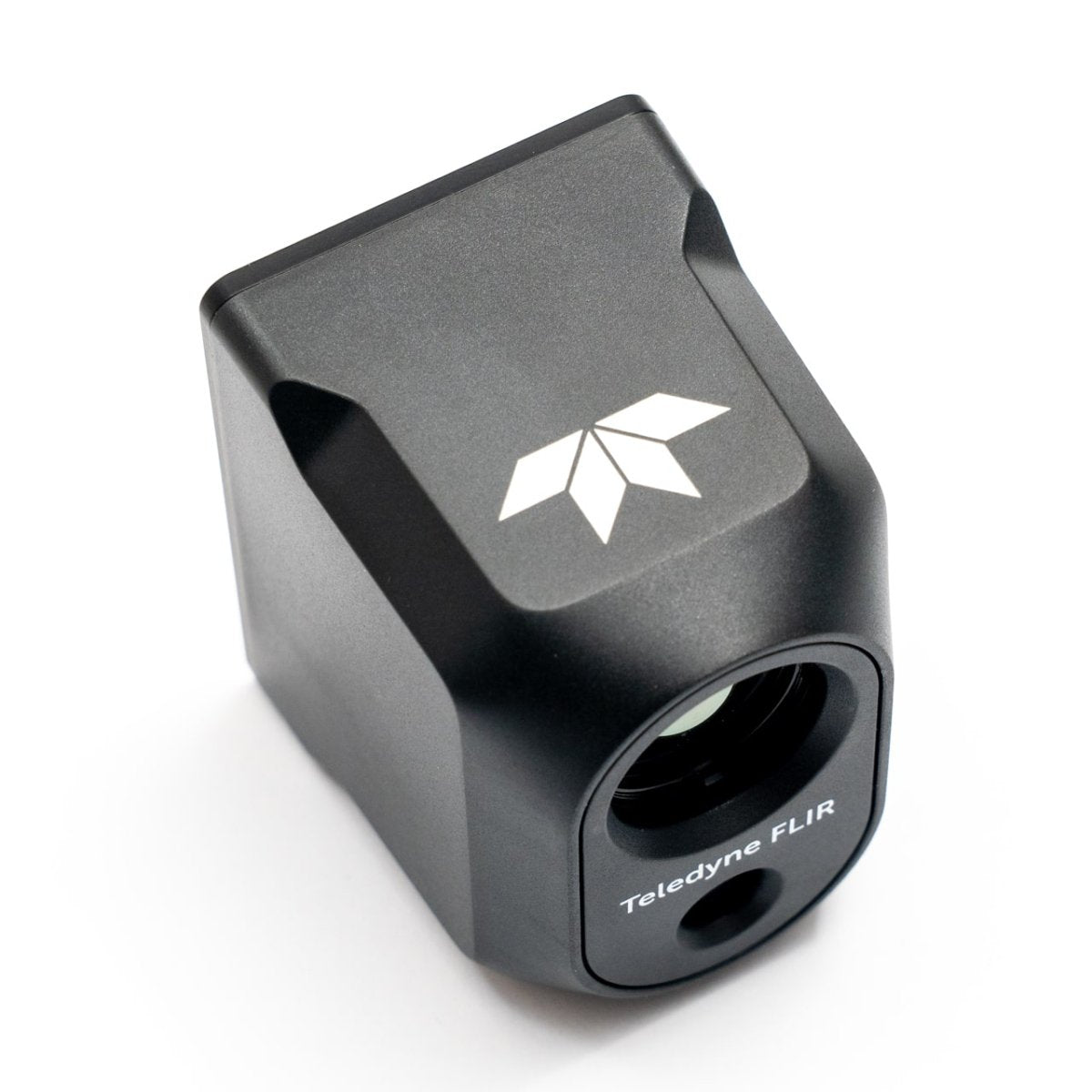

Teledyne FLIR Hadron™ 640R

The NDAA compliant and ITAR free Hadron™ 640 series pairs a 64MP visible camera with a performance-leading 640x512 resolution radiometric Boson® or Boson+ thermal camera in a single easy-to-integrate module. With a size, weight, and power (SWaP) optimized design, it is an ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and emerging AI applications utilizing Teledyne FLIR Prism™ software.

Hadron 640 models share mechanical and electrical interfaces simplifying design. Compatible with Teledyne FLIR’s Prism AI detection, tracking, and classification models and Prism ISP libraries for super-resolution, turbulence mitigation, contrast enhancement, and more, Hadron 640 series enables effective AI-based applications. With drivers available for market leading processors from NVIDIA®, Qualcomm®, and more plus industry-leading integration support, Hadron 640 also reduces development cost and shortens time to market.

• Industry-Leading Thermal and Visible Camera Performance

  Collect high-speed, VGA radiometric thermal and HD visible imagery.

• Built for Integrators

  Reduce development cost and time to market with solution from a single, reliable supplier.

• Size, Weight, and Power (SWaP) Optimized Design

  Optimize design and operation time with compact, lightweight, and low-power module.

Specifications

• Thermal Imaging Detector
  • Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI, Radiometric
• Temperature Accuracy
  • ±5 °C less, over 0 °C to 100 °C range.

Radiometry

• Temperature Accuracy
  • ±5 °C less, over 0 °C to 100 °C range.

Imaging & Optical

• EO Camera Optics
  • Kontatsu B0623D01-0, EFL 4.8mm, 67° HFOV, F/# 1/2.3
• EO Camera Sensor
  • 9248 x 6944 pixels (64.2 MP), 0.7 µm pitch, 4-lane MIPI
• EO Camera Video
  • Full resolution @ 60 Hz
• IMU
  • ICM20602, I2C or SPI (selectable)
• IR Camera Optics
  • EFL 13.6mm, 32° HFOV, F/# 1.0
• IR Camera Video
  • Full resolution @ 60Hz
• Sensitivity [NEdT]
  • <40 mK
• Thermal Imaging Detector
  • Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI, Radiometric


Connections & Communications

• Software Drivers
  • for NVIDIA Jetson Nano
  • for Qualcomm Snapdragon rb5
  • for Qualcomm Snapdrago 865
• *Contact Teledyne FLIR for latest software drivers

Electrical

• Electrical Interface
  • Hadron connector: Hirose DF40C-50DP-0.4V(51)
  • Example of mating connector: DF40HC(2.5)-50DS-0.4V(51)
• Power Consumption
  • 5V supply voltage.
  • Typical power dissipation < 1800mW, Max < 2900mW

Mechanical

• Mechanical Interface
  • Screw mount to back plate
  • Size (L x W x H)
  • 35 x 49 x 45 mm
• Weight
  • 56g

Environmental & Approvals

• Compliance and Certifications
  • NDAA compliant
• Environmental Sealing
  • IP54 (with the rear interfaces sealed)
• Operational & Storage Temperature
  • -20°C to +60°C
• Tested EMI Performance
  • FCC part 15 Class B

Resources

• FAQ - Everything You Need to Know About the Hadron 640R

Export Information

• ECCN: 6A003.b.4.b
• HTSUS: 9027504020

Important Notes

• This camera is only available in 60Hz
• We can ship 60 Hz cameras to certain other countries (listed below) but it will require some additional documents before shipment. All other international orders will receive a 9Hz camera.
• The authorized export, reexport and transfer countries for 60Hz cameras are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey, the United Kingdom.

🕑Lead Time🕑

All Lead times are approximate.

• Approx. 8 Weeks
