Neutrino® SWaP Series - SX8

The ITAR-free VGA-resolution Neutrino LC and SXGA-resolution Neutrino SX8 provide best-in-class MWIR imagery and data in a small, lightweight package. Based on Teledyne FLIR’s High Operating Temperature (HOT) FPA technology and linear micro-cooler, SWaP series OEM camera modules are designed for ruggedized products requiring long life, low-power consumption, and quiet, low-vibration operation. Both are ideal for small gimbals and airframes, handheld devices, security cameras, targeting devices, and asset monitoring applications.

The Neutrino SWaP Series is simply the best technical solution available. With nearly off-the-shelf delivery, industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it also offers the lowest risk solution. The Neutrino SWaP is an OEM camera module that is intended to be integrated into a higher level system.

• Multiple Resolution SWAP Optimized MWIR Camera Cores

  VGA/15 µm and SXGA/8 µm HOT FPA camera modules in a SWaP-optimized envelope offer low-power consumption, rugged construction, and a wide operating temperature range.

• Designed for Integrators

  Small, light, and powerful, the Neutrino SWaP Series camera modules come with common interfaces and support documentation/accessories to shorten time-to-market and reduce project risk.

• Performance, Reliability, and Support

  The Neutrino SWaP Series cameras offer best-in-class image quality, an industry-leading two-year warranty, superior SWaP performance, high reliability, long lifetime, and come with Teledyne FLIR’s well-known product support.

Specifications

• Resolution
  • 1280 × 1024
• Sensitivity [NEdT] < 38mK (50% well fill at TBB=30°C flood mode)
  • Spectral Band 3.4 to 5.1 µm Standard

Imaging & Optical

• Cold Shield Height
  • 19.4 mm from FPA
• Color Palettes
  • Yes, RGB888 mode
• Digital Zoom
  • Yes, up to 8x (digital zoom)
• Discrete I/O Controls Available
  • Yes, Three available
• f-number
  • f/4, f/3 & f/2.5 options
• Frame Rate
  • 1-60 Hz, configurable
• Image Optimization
  • Linear, Histogram Equalization, DDE
• Invert/Revert
  • Yes
• Optical Continuous Zoom
  • Yes, up to 8x (digital zoom)
• Parallel (24-bit/16-bit/8-bit)
  • Yes
• Pixel Pitch
  • 8 µm
• Resolution
  • 1280 × 1024
• Sensitivity [NEdT]
  • < 38mK (50% well fill at TBB=30°C flood mode)
• Sensor Technology
  • HOT MWIR
• Spectral Band
  • 3.4 to 5.1 µm Standard
• Symbology
  • Yes, RGB888 mode
• Zoom and Focus Controls
  • Yes

Connections & Communications

• Communication Protocol
  • UART (115.2K baud)
• External Sync Input/Output
  • Master or Slave
• Primary Electrical Connector
  • 80-pin SAMTEC, ST4-40-2.50-L-D-P-TR
• USB
  • Yes
• User Configurability via SDK & GUI
  • Yes

FPA Control

• Direct Injection Snapshot Prog operation
  • Yes
• Programmable Integration Time
  • Yes (.01ms - 16ms) at 60 Hz
• ROIC
  • ISC1601
• ROIC Modes
  • Free Run, Readout Priority, & Integration Priority
• Well Capacity
  • 2.6 × 10⁶ electrons

Electrical

• Input Voltage
  • +5.0 VDC Camera, +12 VDC Cryocooler
• Power Consumption
  • <12 W cooldown, <8 W steady state @ 23°C

Mechanical

• Size (L x W x H)
  • 7.9 × 5.3 × 6.1 cm (3.1 × 2.1 × 2.4 in)
• Weight
  • <420 grams (<15 oz)

Environmental & Approvals

• Humidity
  • Non-condensing between 5% - 95%
• Non-Operating Temperature Range
  • -57 °C to +80 °C (-70.6 °F to +176 °F)
• Operating Temperature Range
  • -40 °C to +71 °C (-40 °F to +160 °F)
• Operational Altitude
  • ~12km (40,000 ft)
• Shock
  • Lateral 190 Grms @ .55 ms
  • Vertical 320 Grms @ .55 ms
  • Axial 550 Grms @ .8 ms
• Vibration
  • 5.8 Grms 3-axis, 1hr each

Important Notes

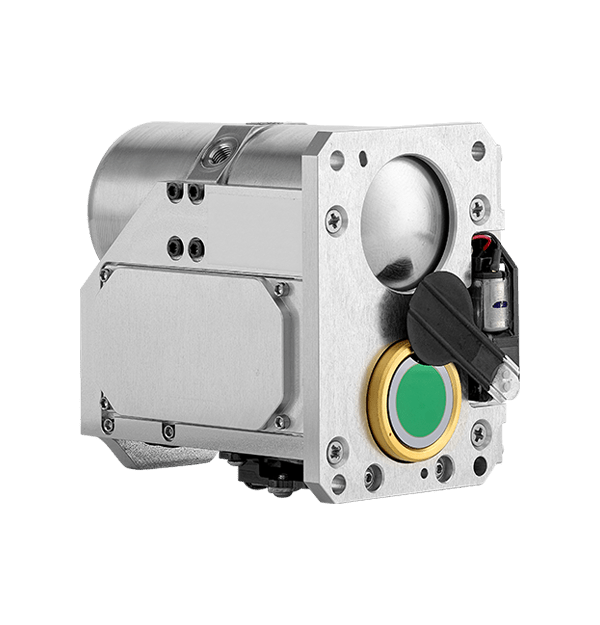

• Your Neutrino may look different than pictured.

• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
• We can only ship Neutrino to: United States, Australia, Canada, United Kingdom.

Export Information

• ECCN 60Hz: 6A003.b.4.a

• HTSUS: 9013.80.9100
• Country of Origin: USA
• This item is export restricted. See "Important Notes" section above.

🕑Lead Time🕑

• Contact us for lead time and pricing sales@groupgets.com
•
