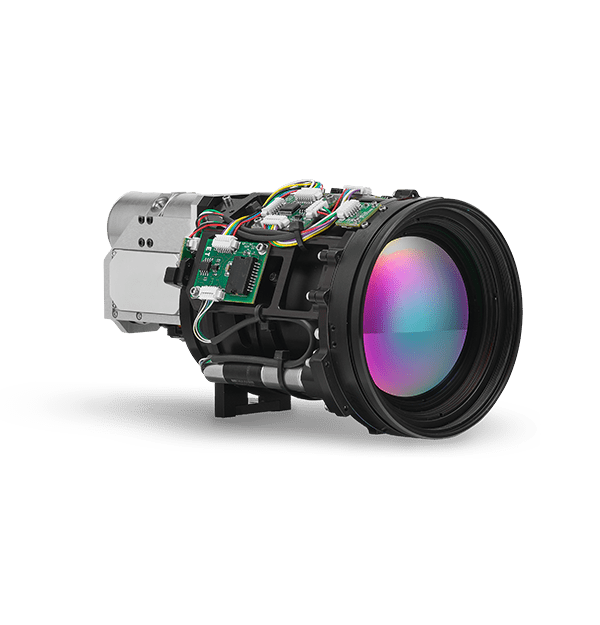

Neutrino® IS Series - Continuous Zoom 15-300mm - f/4.0

The ITAR-free Neutrino IS series combines Teledyne FLIR’s world-class mid-wavelength infrared (MWIR) OEM camera modules and continuous zoom (CZ) lenses to offer high–performance imaging solutions with various FPA resolutions and CZ zoom/FOV ranges. Neutrino IS lowers development and manufacturing risk and improves time-to-market. Cutting-edge HOT FPAs, long life and low vibration linear coolers, common camera interfaces, and fully athermalized lenses make for the best-in-class solution. Each camera module and lens are designed for each other, providing optimal performance not achievable when buying and integrating cameras and lenses from multiple sources.

Teledyne FLIR Neutrino IS series is simply the best technical solution available. With nearly off-the-shelf delivery, industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it offers the lowest risk solution. The Neutrino IS is an OEM camera module that is intended to be integrated into a higher level system.

• Multiple MWIR Imaging Solutions

  Multiple configurations from one manufacturer simplifies product development and production, providing higher value and lower risk.

• Seamless Opto-Mechanical Integration

  Cameras and lenses designed for each other for optimum performance and compatibility.

• Market Leading MWIR CZ Optics and Cameras

  World class performance, industry-leading two-year warranty, and affordable MWIR solutions from the market leader.

Specifications

• Resolution
  • 640 x 512, (15 µm pitch) HOT MWIR
• FPA - Digital Video Display Format
  • 640 × 512
• Sensitivity [NEdT]
  • <30mK
• Spectral Band
  • 3.4 - 5.1 µm Standard

Imaging & Optical

• CMOS
  • CMOS (16-bit, 16-bit color encoded YCbCr, 8-bit)
• Color Palettes
  • Yes

• Detection Recognition and Identification
  • D = 16.2 km, R = 6.4 km, I = 5.0 km
  • The ranges at which there is a 50% probability of achieving the task for the V50 measured task of difficulties of 2.0 (detection), 9.0 (recognition), and 13.0 (identification).
• Digital Zoom
  • Yes
• Discrete I/O Controls Available
  • None
• EFL_Zoom Range [mm]
  • 15 to 300 mm compact, continuous zoom lens
• f-number
  • f/4.0
• FPA - Digital Video Display Format
  • 640 × 512
• Frame Rate
  • 60Hz, adjustable 1Hz to 60 Hz
• Horizontal Field of View [HFOV]
  • 1.8° to 35.5°
• Image Optimization
  • Histogram Equalization, DDE+
• Invert/Revert
  • Yes
• Polarity Control [black hot & white hot]
  • No
• Resolution
  • 640 x 512, (15 µm pitch) HOT MWIR
• Sensitivity [NEdT]
  • <30mK
• Special Features
  • Active athermalization and auto focus capable
• Spectral Band
  • 3.4 - 5.1 µm Standard
• Symbology
  • Yes
• Zoom and Focus Controls
  • Yes

Connections & Communications

• Analog Video Output
  • Yes, accessory board required
• Communication Protocol
  • USB or UART (camera)
  • RS-232, nominal 38400 Baud (lens)
• Digital Output Format
  • Yes, accessory board required
• Primary Electrical Connector
  • 80-pin Hirose (camera), 4-pin Molex (cooler), 6-pin Molex (lens)
• RS-232 Compatible Communication
  • RS-232, Nominal 38400 Baud
• User Configurability via SDK & GUI
  • Yes, Camera only.

FPA Control

• Direct Injection Snapshot Prog operation
  • Yes
• Programmable Integration Time
  • Yes (0.01 ms - 16.6 ms)
• ROIC
  • ISC0403
• ROIC Modes
  • Free run, readout & integration priority

Electrical

• Input Voltage
  • Camera Only
  • 3.3 VDC (camera), 12 VDC (cryocooler), 12 VDC (lens)
• Power Consumption
  • Camera Only
  • <4.5 W (camera/cooler) steady state
  • <2.5 W (lens) steady state
  • <15.0 W (camera/cooler) peak power
  • <9 W (lens) peak power


Mechanical

• Size (L x W x H)
  • 19.25 x 9.91 x 10.59 cm (7.58 × 3.90 × 4.17 in)
• Weight
  • 1324 grams

Environmental & Approvals

• Humidity
  • 5% to 95% non-condensing
• Non-Operating Temperature Range
  • -54°C to +85°C
• Operating Temperature Range
  • -32°C to +71°C
• Operational Altitude
  • 12km altitude equivalent

Important Notes

• Your Neutrino may look different than pictured.

• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
• We can only ship Neutrino to: United States, Australia, Canada, United Kingdom.

Export Information

• ECCN 60Hz: 6A003.b.4.a

• HTSUS: 9013.80.9100
• Country of Origin: USA
• This item is export restricted. See "Important Notes" section above.
