FLIR Boson SX8

NDAA-compliant, US-made SXGA thermal. The Boson SX8 delivers 1280×1024 resolution at an 8µm pixel pitch, 4x the detail of VGA in a low-SWaP package.

SKU: SKU:801280A0050-6PXAAA

$9,999,999.00 USD

~~$5,289.00 USD~~ $9,999,999.00 USD

Sale Sold out

Out of Stock - Available on Backorder - Lead Times

The Teledyne FLIR Boson SX8 is the first NDAA-compliant, volume-production uncooled LWIR thermal camera module to combine SXGA (1280 × 1024) resolution with an 8-micron pixel pitch. It delivers four times the resolution of standard VGA modules in a compact, low-SWaP package (31.6 x 31.6 x 19.9 mm, 22.5 g without lens), giving your platform greater situational awareness and longer effective range. US-made and ITAR-free.

Featuring Silent Shutterless NUC (SSN) for uninterrupted imaging with no shutter pauses, a 60 Hz frame rate, and under 2.25 W power draw, the SX8 is built for UAS, counter-UAS, perimeter security, robotics, handheld devices, and ISR platforms.

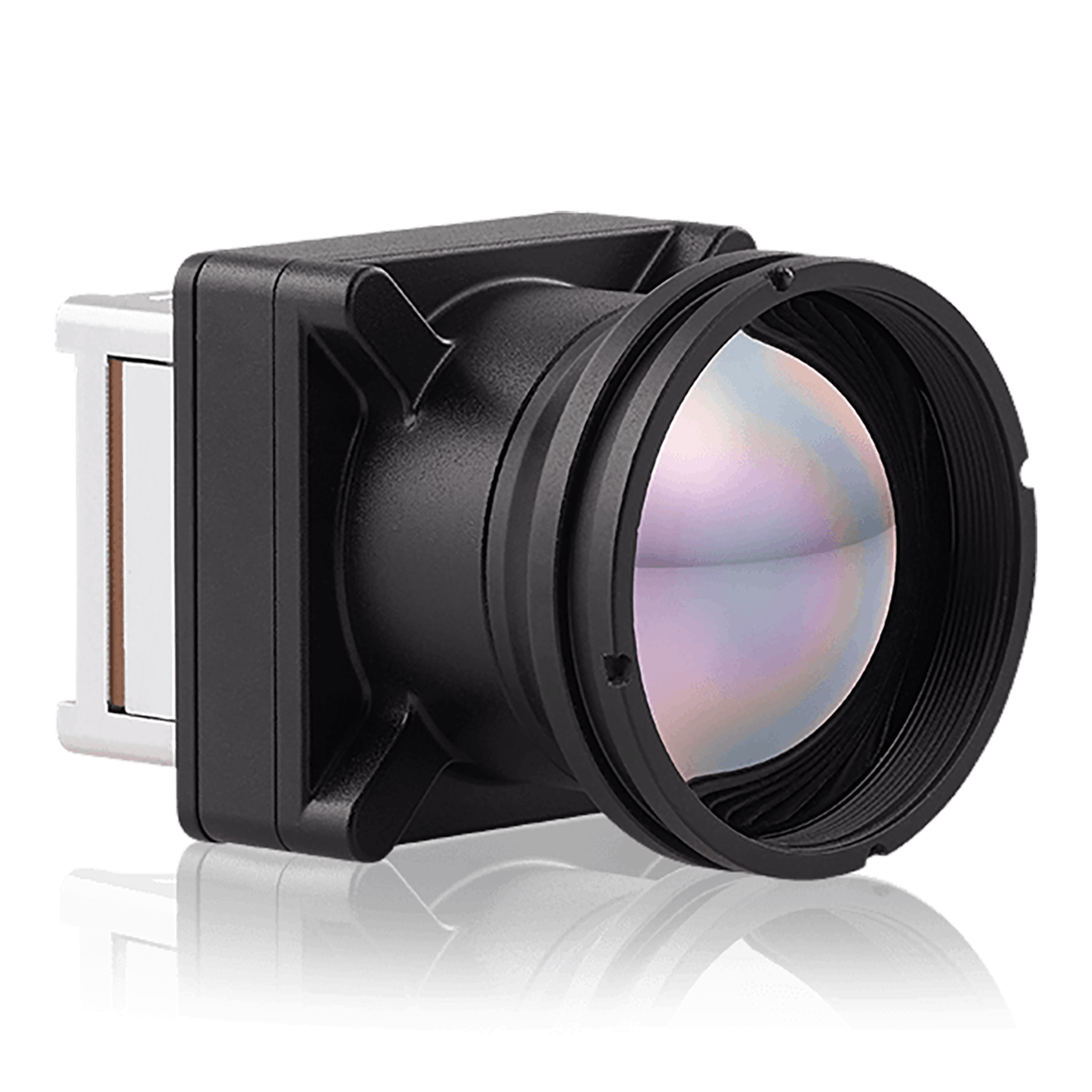

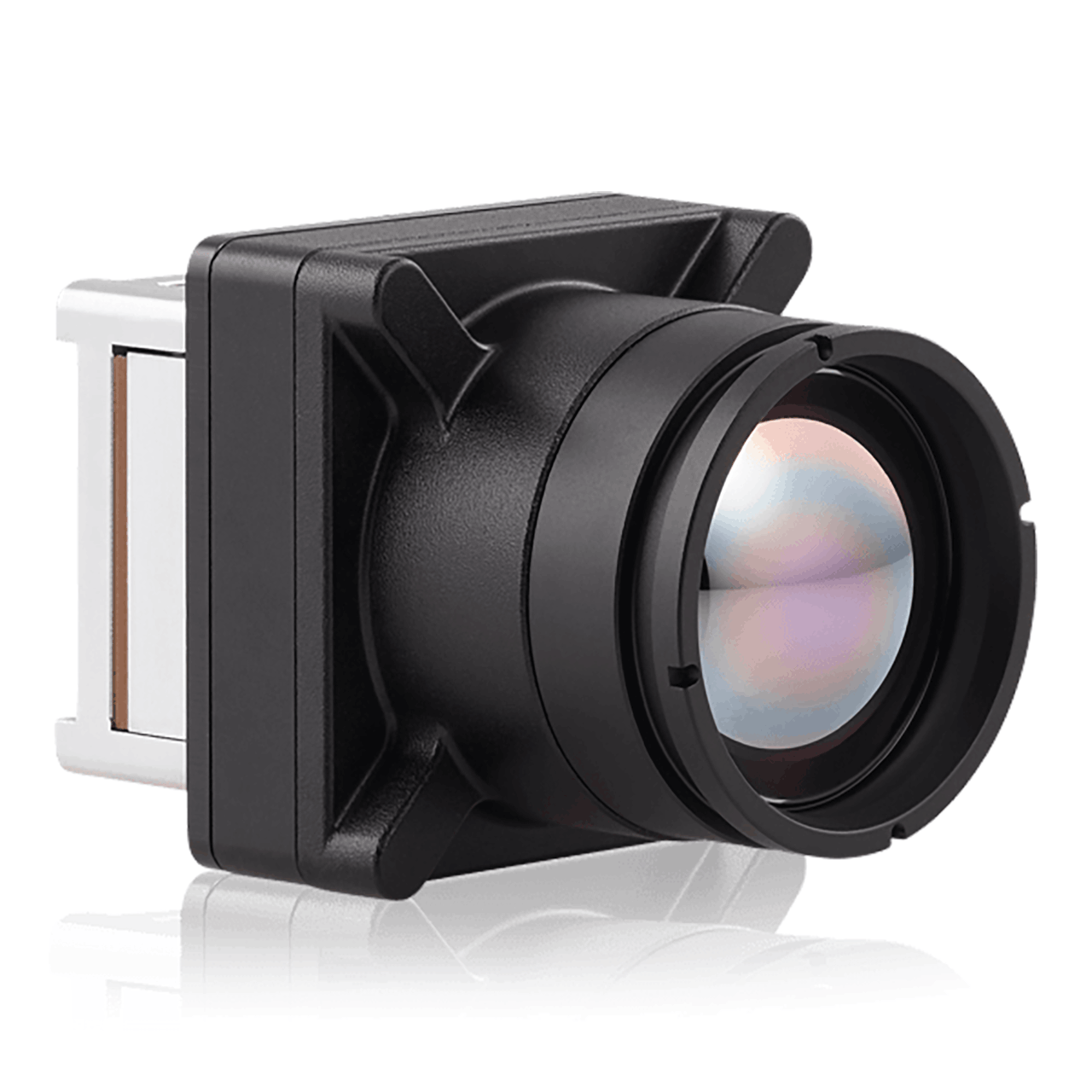

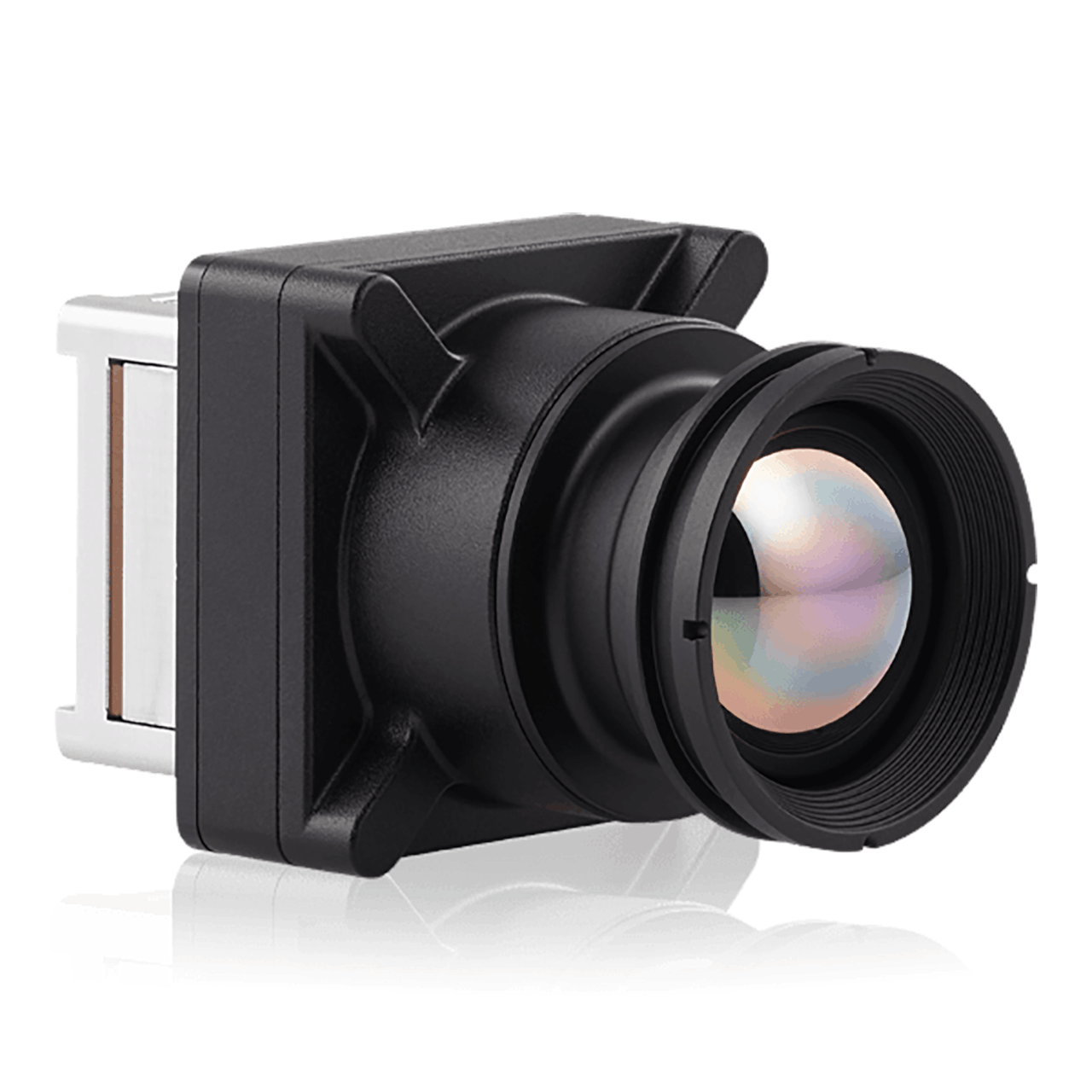

Available in two sensitivity grades (Industrial ≤35 mK and Professional ≤45 mK) and three lens options (12mm, 18mm, and 24mm). Use the selector to choose the configuration that fits your application. Shorter focal lengths give a wider field of view for close-in awareness, while the 24mm extends detection and recognition range.

Specifications

Spec	Value
Resolution	1280 × 1024 (SXGA)
Pixel pitch	8 µm
Spectral band	LWIR, 8 to 14 µm
Sensitivity (NEdT)	Industrial ≤35 mK / Professional ≤45 mK
Temperature measurement	No
f-number	1.0
Horizontal FOV	50° (12mm) / 32° (18mm) / 24° (24mm)
Frame rate	60 Hz (30 Hz using averager or frame-skip)
NUC	Factory calibrated; Silent Shutterless NUC (SSN)
Video output	MIPI CSI-2 v1.2 (D-PHY v1.2), 2 data lanes @ 720 Mbps/lane
Peripheral channels	I2C
Input voltage	3.3 VDC (nominal, ±5%)
Power consumption	< 2.25 W
Precision mounting holes	Heatsink M1.2 x 0.25; Accessory M1.6 x 0.35
Size (L x W x H)	31.6 × 31.6 × 19.9 mm (without lens)
Weight	22.5 g (without lens, shuttered)
Operating temperature	-40 °C to +80 °C
Non-operating temperature	-50 °C to +85 °C
Operational altitude	12 km
Shock	1,500 g @ 0.5 ms; 500 g @ 0.8 ms; 250 g @ 1.5 ms (half-sine, all 6 axes)
Solar protection	Yes, when integrated with factory lens
Compliance	ITAR-free, NDAA-compliant, EAR 6A003.b.4.b, RoHS, REACH

Resources

Important Notes

All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
We can ship 60 Hz cameras to certain other countries but it will require some additional documents before shipment. See Export Control page.
Accessories and Interfaces are sold separately.
