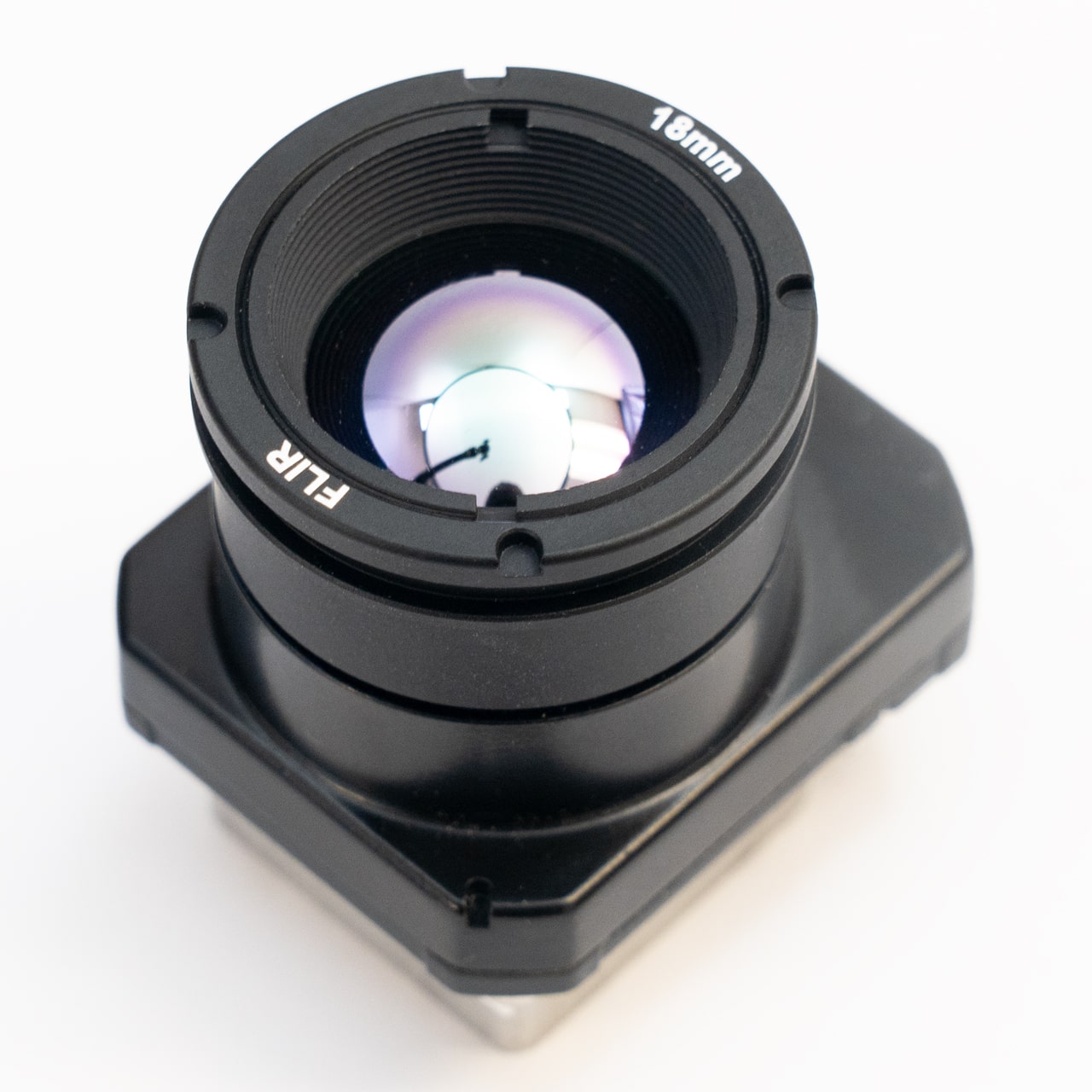

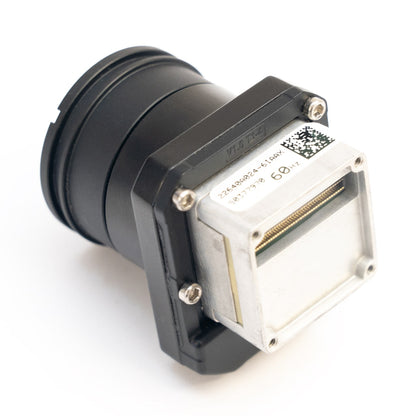

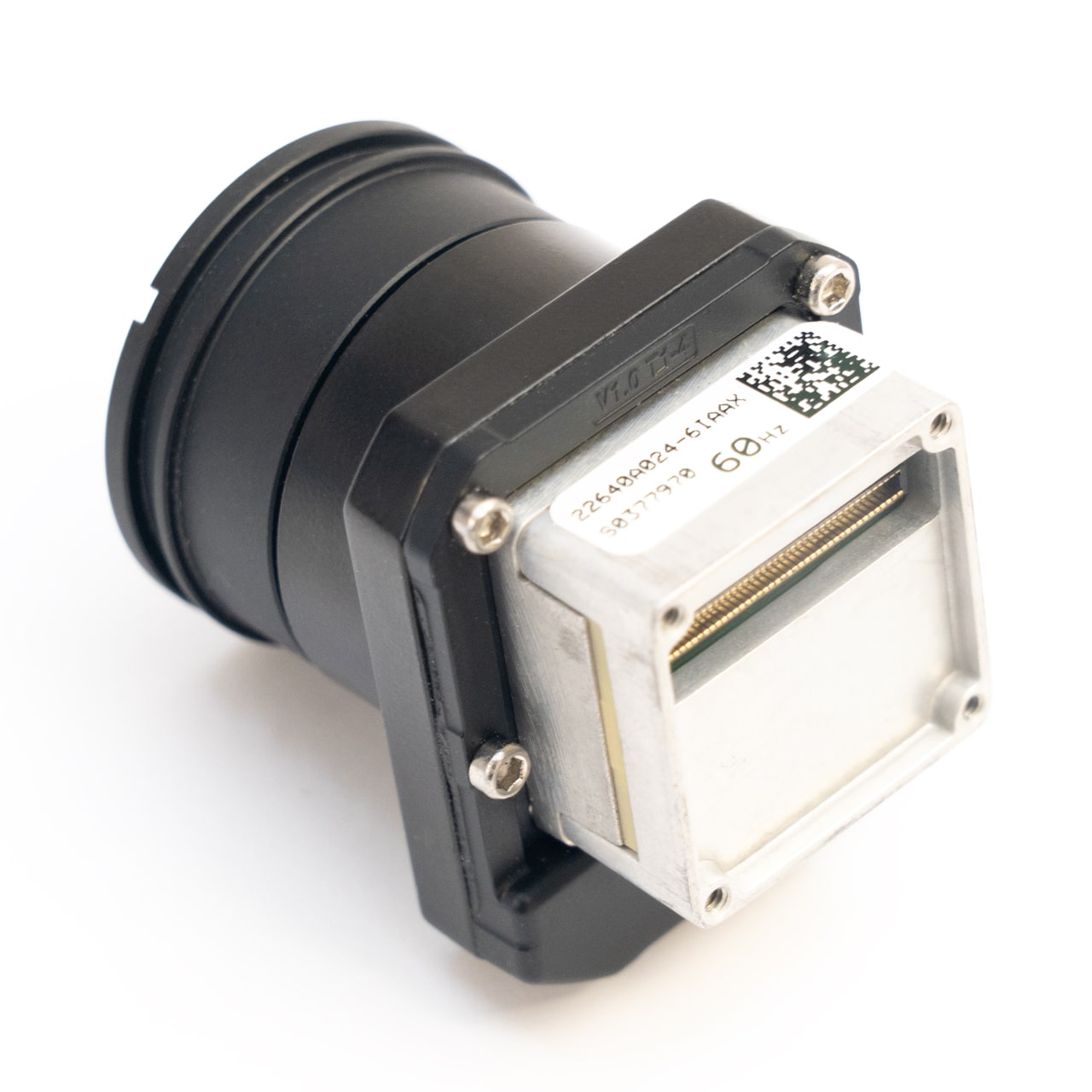

FLIR Boson+ 640

Made in USA, the Boson+ sets a new industry standard for longwave infrared (LWIR) OEM thermal camera performance and size, weight, and power (SWaP). It features an industry-leading thermal sensitivity of less than or equal to (≤)20 mK and an upgraded automatic gain control (AGC) filter delivering dramatically enhanced scene contrast and sharpness in all environments. Improved video latency enhances tracking, seeker performance, and decision support. With an optimized 12 µm 640 x 512 focal plane array (FPA) and AGC, Boson+ is now even more the go-to thermal camera module for defense, industrial, and commercial integrators.

Boson+ maintains the widely deployed and real-world-proven Teledyne FLIR Boson mechanical, electrical, and optical interfaces allowing plug-and-play with existing designs. The easy-to-use Boson SDK, user-friendly GUI, and comprehensive product integration documentation further simplify OEM integrated into a new system designs. Enhanced LWIR thermal performance and industry-leading reliability provide low-risk development, making Boson+ the ideal dual use thermal camera module for integration into unmanned ground vehicles (UGV), unmanned aircraft systems (UAS), wearables, security applications, handhelds, and thermal sights.

ADVANCED PERFORMANCE WITH IMPROVED THERMAL SENSITIVITY CONTRAST, AND LATENCY
Industry leading NEDT of ≤20 mK extends thermal scene details and detection, recognition, and identification (DRI) performance

INDUSTRY-LEADING SIZE, WEIGHT, AND POWER (SWAP)
A full-featured VGA LWIR thermal camera module just 7.5 grams and less than 4.9 cm³

DESIGNED FOR INTEGRATORS
Shared mechanical/electrical compatibility across all Boson provides plug-and-play with existing designs

Resources

Boson+ Datasheet

SPECIFICATIONS

• Pixel Size
• 12 µm
• Frame Rate Options
• 60Hz baseline; 30 Hz runtime selectable

PERFORMANCE

• Thermal Spectral Range
• Longwave infrared; 8 µm – 14 µm

IMAGING & OPTICAL

• Array format
• 640 x 512
• Continuous Electronic Zoom
• 1X to 8X zoom
• f-number
• 1.0
• Frame Rate Options
• 60Hz baseline; 30 Hz runtime selectable
• Image Orientation
• Adjustable (vertical flip and/or horizontal flip)
• Non-Uniformity Correction (NUC)
• Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
• Pixel Size
• 12 µm
• Scene Dynamic Range
• to 120 °C (high gain)
• Snapshots
• Full-frame snapshot via Boson GUI
• Symbol overlay
• Re-writable each frame; alpha blending for translucent overlay
• Thermal Sensitivity
• <20 mK (Industrial); <30 mK (Professional)

CONNECTIONS & COMMUNICATIONS

• Control Channels
• UART or USB
• Peripheral Channels
• I2C, SPI, SDIO
• Video Channels
• CMOS or USB2

ELECTRICAL

• Input Voltage
• 3.3 VDC
• Power Dissipation
• Varies by configuration; starting at 900 mW

MECHANICAL

• Precision Mounting Holes
• Four tapped M1.6x0.35 (rear cover)
• Size (w/o lens)
• 21 × 21 × 11 mm
• Weight
• 7.5 g without lens (configuration dependent)

ENVIRONMENTAL & APPROVALS

• Non-Operating Temperature Range
• -50°C to 85°C
• Operating Temperature Range
• -40°C to 80°C
• Operational Altitude
• 12 km (max altitude of a commercial airliner or airborne platform)
• Shock
• 1,500 g @ 0.4 msec
• Solar protection
• Integral

Important Notes

• Your Boson may look different than pictured.
• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
• All US orders will get 60Hz cameras unless you contact us (help@groupgets.com)
• We can ship 60 Hz cameras to certain other countries (listed below) but it will require some additional documents before shipment. All other international orders will receive a 9Hz camera.
• The authorized export, reexport and transfer countries for 60Hz cameras are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey, the United Kingdom.

🕑Lead Time🕑

All Lead times are approximate.

• 10 Weeks for all models other than below:
• 55mm - 27 Weeks
• 73mm Lens - 27 Weeks
