OpenMV - POE Shield

Important Note: The PoE Shield headers do not come pre-soldered.

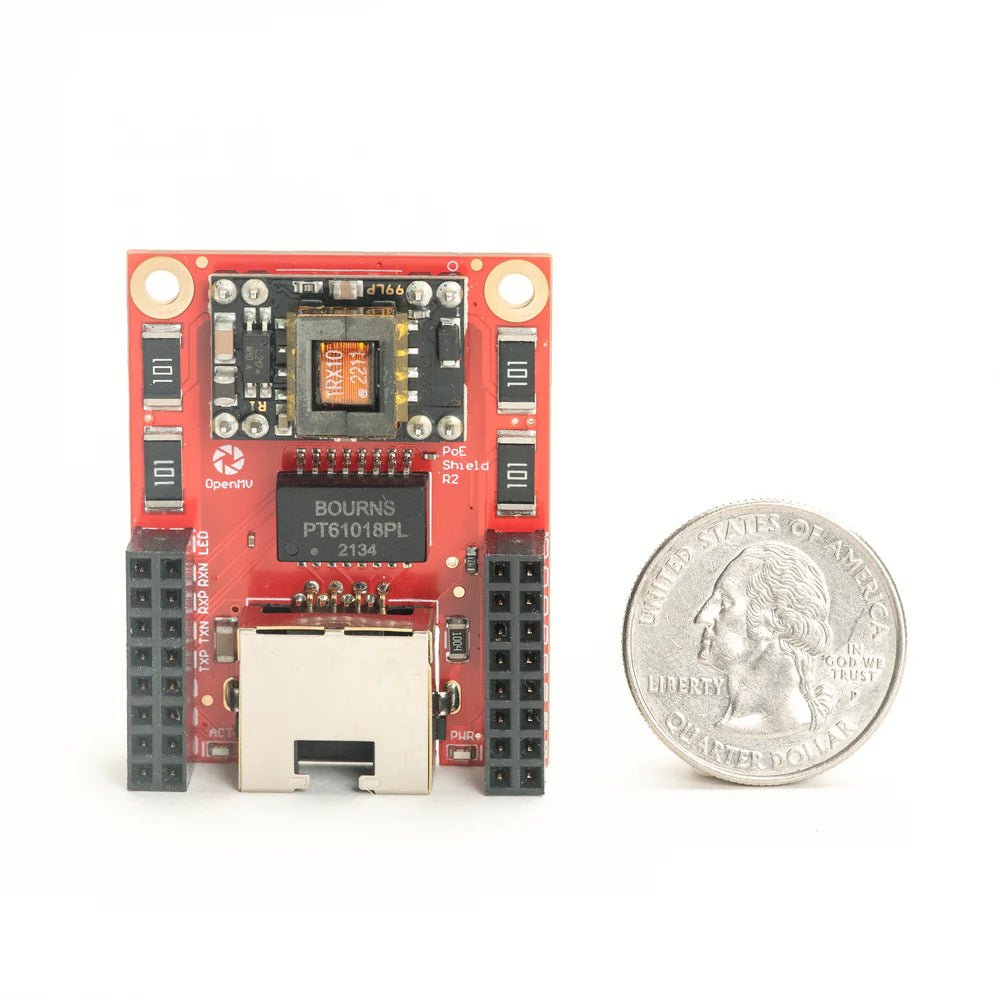

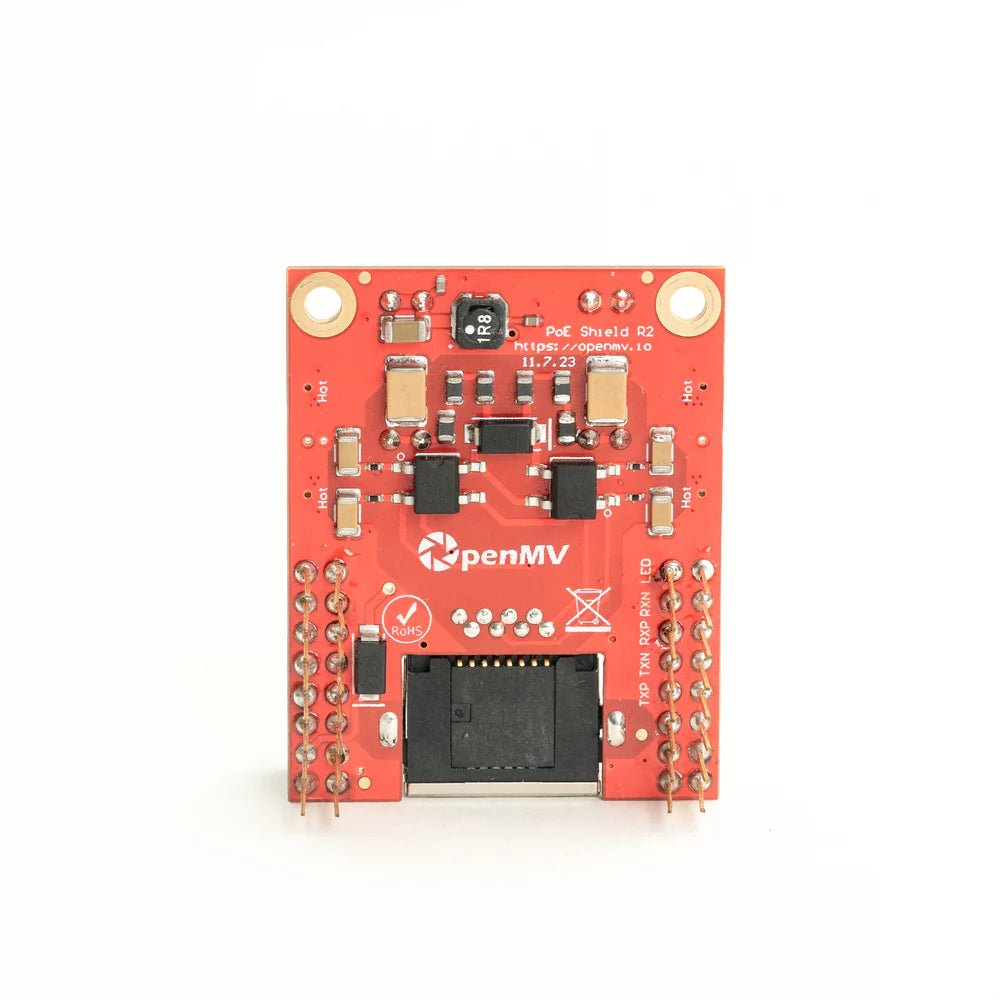

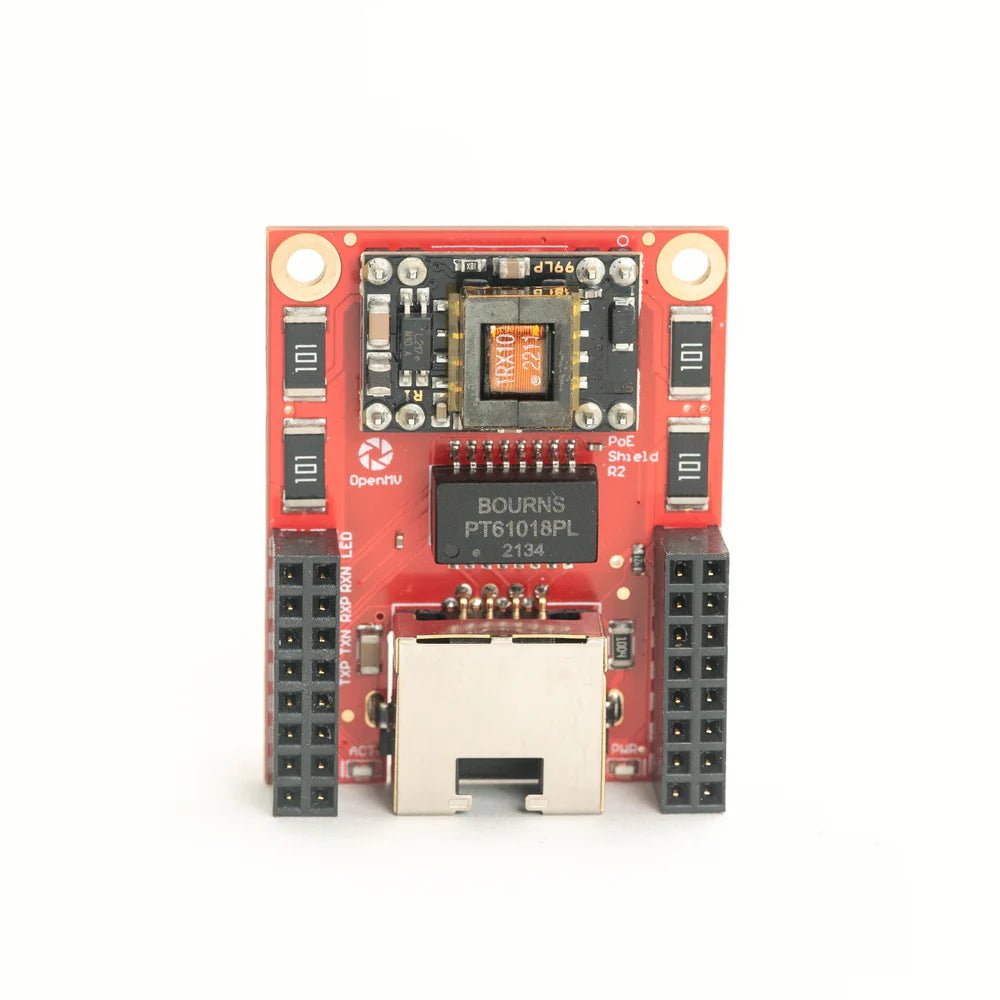

The PoE shield lets you connect your OpenMV Cam to PoE Ethernet. This gives you a one-cable solution for power and connectivity. The PoE Shield features a 10/100 Mb/s capable ethernet jack with IEEE802.3af PoE support capable of providing up to 6W of power to your OpenMV Cam. The PoE Shield supplies 5.4V via VIN through an OR'ing diode, allowing it to be combined with any of our dual header column shields that supply VIN via an OR'ing diode.

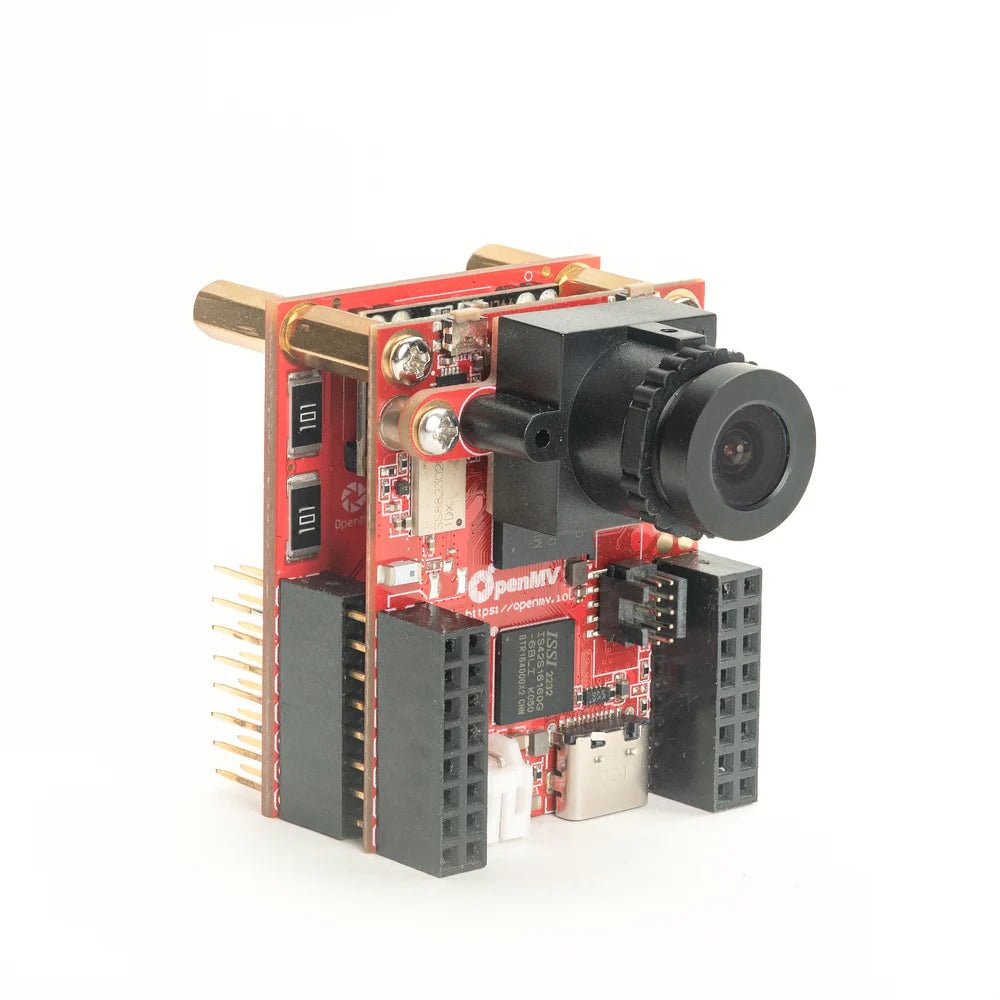

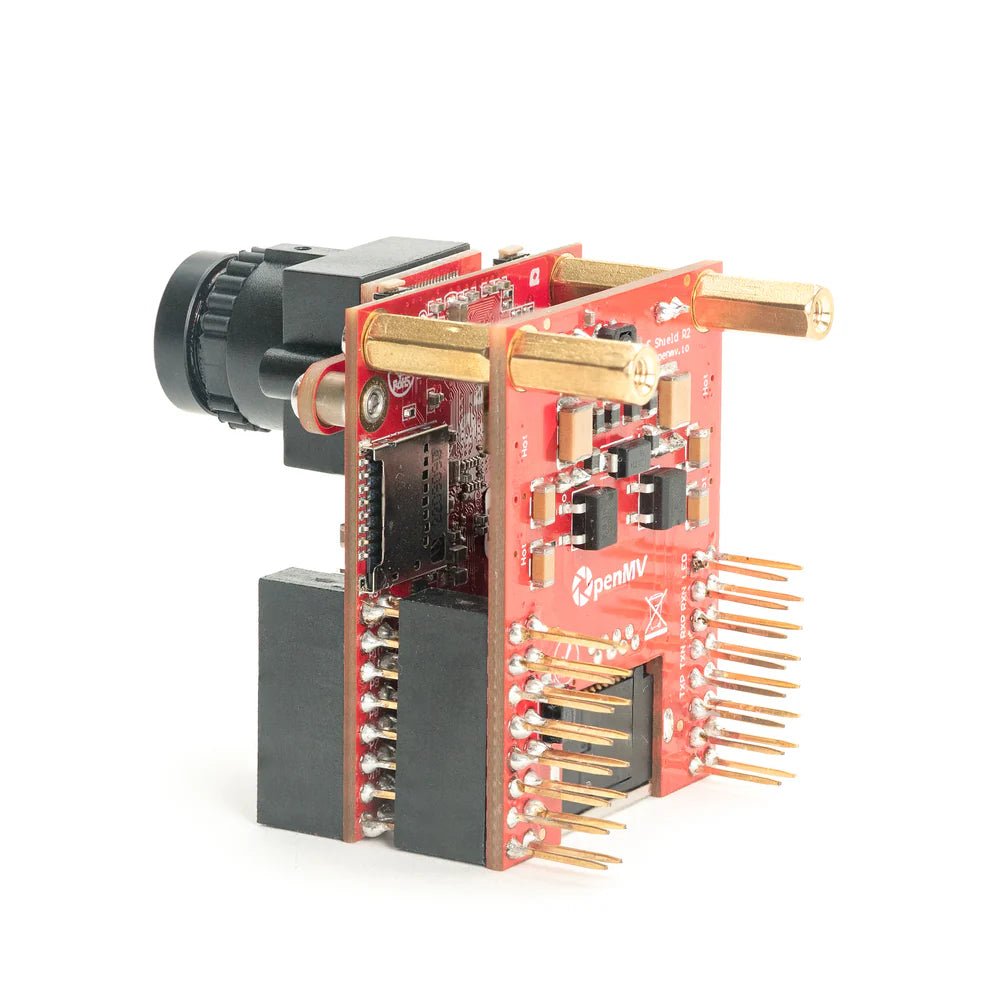

Note that the PoE shield will only work with OpenMV Cams with onboard ethernet, such as the OpenMV Cam RT1062. Also, the PoE Shield comes with the mounting hardware and screws pictured.

Applications
With the PoE Shield you can now wire your OpenMV Cam into your network and turn your OpenMV Cam into a smart IP camera.

Specifications

• 10/100 Mb/s Ethernet
• IEEE802.3af PoE
• 1500V isolated
• Input PoE voltage range 36V to 57V
• The PoE Shield comes with 2x 12mm female-female M2.5 standoffs, 2x 12mm male-female M2.5 standoffs, 2x M2.5 screws, and 2x M2.5 nuts.

Power Consumption

• Draws 1W at minimum loading (0.2A @ 5V)
• Can provide up to 6W of power (1.2A @ 5V)


Dimensions

• Length: 45 mm
• Width: 36 mm
• Height: 20 mm
• Weight: 23g

Temperature Range

• Storage Temperature: -40°C to 85°C
• Operating Temperature: -30°C to 85°C


Resources

3D CAD

• PoE Shield Model (.step)

Case

• OpenMV Cam and Poe Shield 3D Printable Case (.stl)

Mount

• Tripod 1/4-20 Styled Board Mount (.stl/.step)
• Tripod 1/4-20 Flat Board Mount (.stl/.step)
• GoPro Board Mount (.stl/.step)

Datasheets

• PoE Module: AG9905LP (.pdf)

Certificates

• RoHS Certification (.pdf)
• RoHS Report (.pdf)

Export Information

• Country of Origin: China
• HTSUS: 8542.90
• UPC: 712179433434
• SKU: OMV-SHIELD-POE
