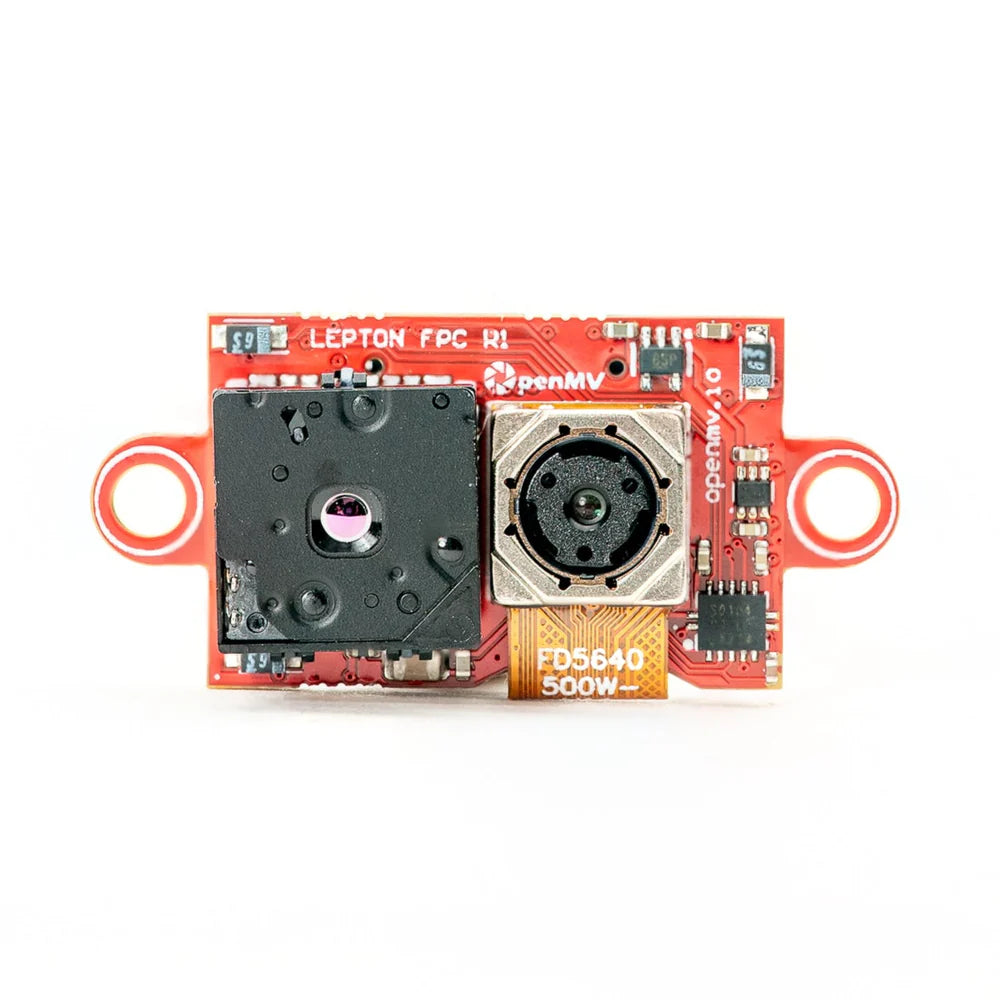

OpenMV - Multispectral Thermal Camera Module

The Multispectral Thermal Camera Module allows your OpenMV Cam to interface with the FLIR® Lepton® 1/2/3 Thermal Imaging sensors for Thermal Vision applications and interface with the PAG7936 1MP 120 FPS Color Global Shutter or OV5640 5MP Color Rolling Shutter sensor at the same time. Now you can process thermal images mixed with color at the same time!

• This camera module is compatible with the OpenMV Cam RT1062
• FLIR Lepton is NOT included

Applications

By using thermal imaging your OpenMV Cam can see in the dark in conditions with no external lighting. FLIR® Lepton®s are extremely useful for tracking living things in environments along with being able to measure the temperature of objects.

Specifications

Supports the FLIR® Lepton® 1.x/2.x/3.x sensors.

Camera Info (OV5640):

• Focal Length: Variable
• Aperture: F2.0
• Format: 1/4"
• IR Cut Filter: 650nm
• Horizontal Resolution: 1944 pixels (2.7384mm) 1.4um pixel pitch
• Vertical Resolution: 2592 pixels (3.6746mm) 1.4um pixel pitch

Estimated FoV and EFL with OV5640 image sensor:

• D72° H60.3° V47.1°
• EFL: 3.1mm

Power Consumption

• Normal - Shutter Open (no FCC): 42mA @ 3.3V
• Calibrating - Shutter Closed (FCC): 242mA @ 3.3V

Dimensions

• Length: 35 mm
• Width: 16 mm
• Height: 14 mm

Temperature Range

• Storage Temperature: -30°C to 85°C
• Operating Temperature: -20°C to 60°C


Export Information

• Country of Origin: China
• HS Code: 8473.30.11.80
• Weight: 3 g
• UPC: 608275911177 (OV5640)
• ECCN: EAR99

Important Notes

• GroupGets does not provide software or coding support.
