OpenMV LCD Shield

OpenMV LCD Shield

SKU:

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Discounted Sold out
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

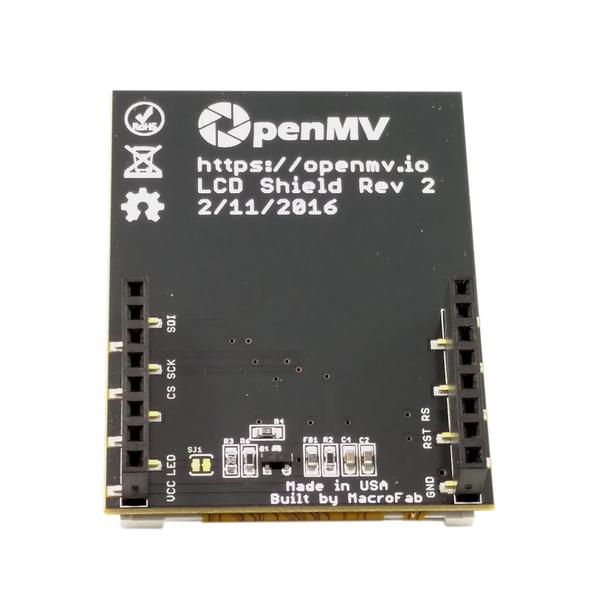

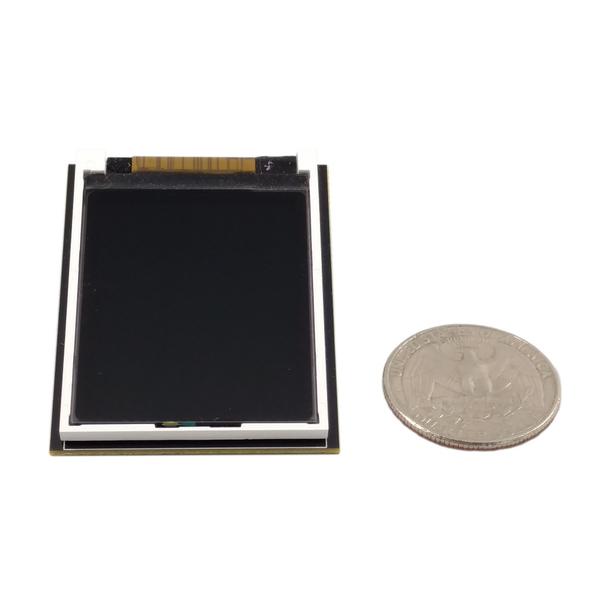

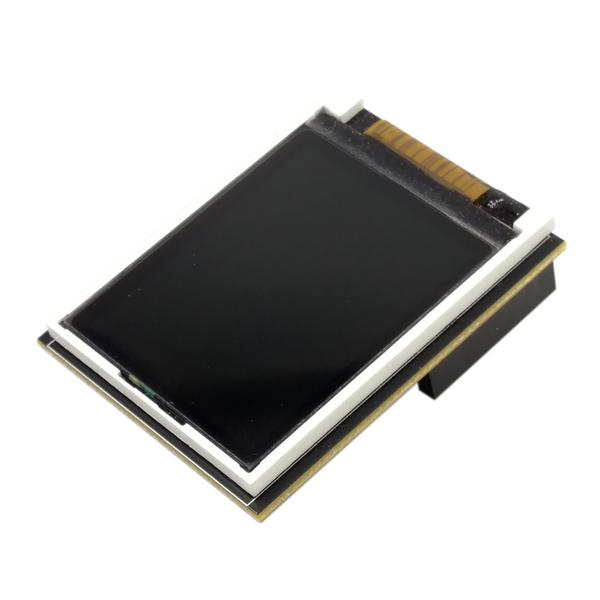

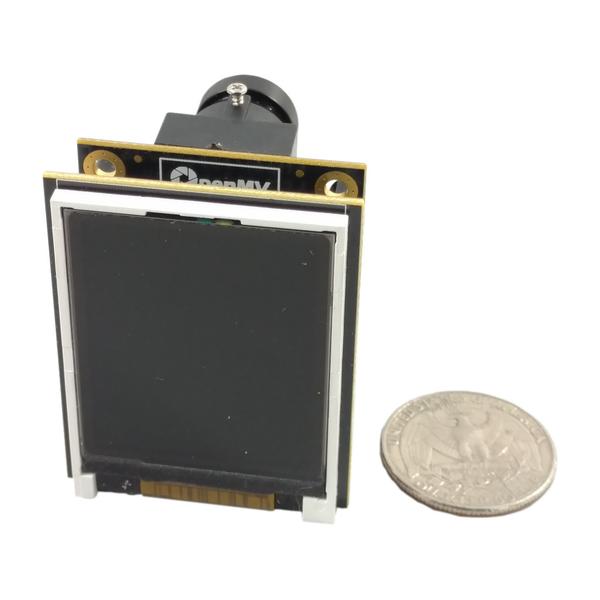

The LCD Shield gives your OpenMV Cam the ability to display what it sees on-the-go while not connected to your computer. It features a 1.8" 128x160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam's firmware has built-in support for controlling the LCD Shield using the lcd module.

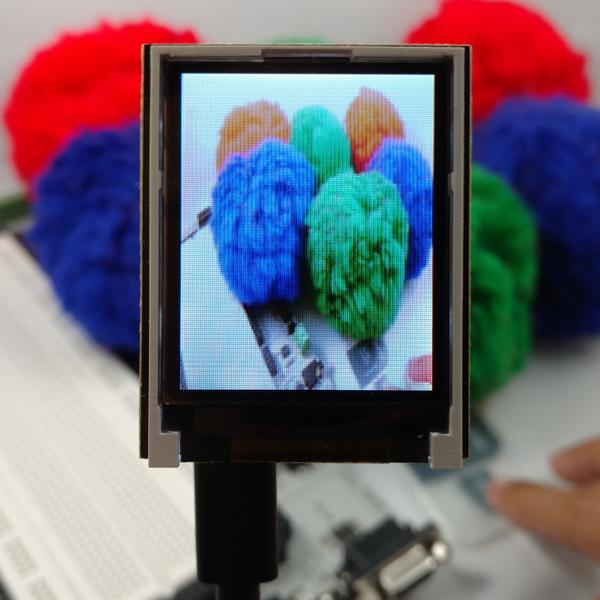

The LCD Shield is great for robotic applications where you need to debug your OpenMV Cam in the field - like when debugging a line following robot. For example, you can use the LCD Shield to display the frame buffer after you've thresholded and drawn markups on an image.


Specifications

  • Screen Type
    • 1.8" TFT LCD
  • Horizontal Resolution
    • 128 pixels (28.03mm) 0.18mm pixel pitch
  • Vertical Resolution
    • 160 pixels (35.04mm) 0.18mm pixel pitch
  • Display Colors
    • 64K 16-bit RGB565
  • Weight
    • 13g
  • Length
    • 48mm
  • Width
    • 38mm
  • Height
    • 13mm
Power Consumption
  • Idle Backlight Off < 1mA @ 3.3V (> 100mA w/ Cam)
  • Idle Backlight On 30mA @ 3.3V (130mA w/ Cam)
  • Active Backlight Off 10mA @ 3.3V (150mA w/ Cam)
  • Active Backlight On 40mA @ 3.3V (180mA w/ Cam)

Temperature Range

  • Storage
    • -30°C to 80°C
  • Operating
    • -20°C to 70°C


Export Information

  • Part Number: OpenMV-LCD


    🕑Lead Time🕑

    If you can add this item to your cart it is in stock and ready to ship
