OpenMV

OpenMV - Cam RT1062 - r5

OpenMV - Cam RT1062 - r5

The OpenMV Cam is a low-power microcontroller for machine vision. Program it in Python via MicroPython, making complex vision tasks easier. Control I/O pins, capture images/videos, and run vision algorithms with ease.

SKU: OMV-CAM-RT1062-V2 (V5)

Regular price $120.00 USD
Regular price Sale price $120.00 USD
Discounted Sold out
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

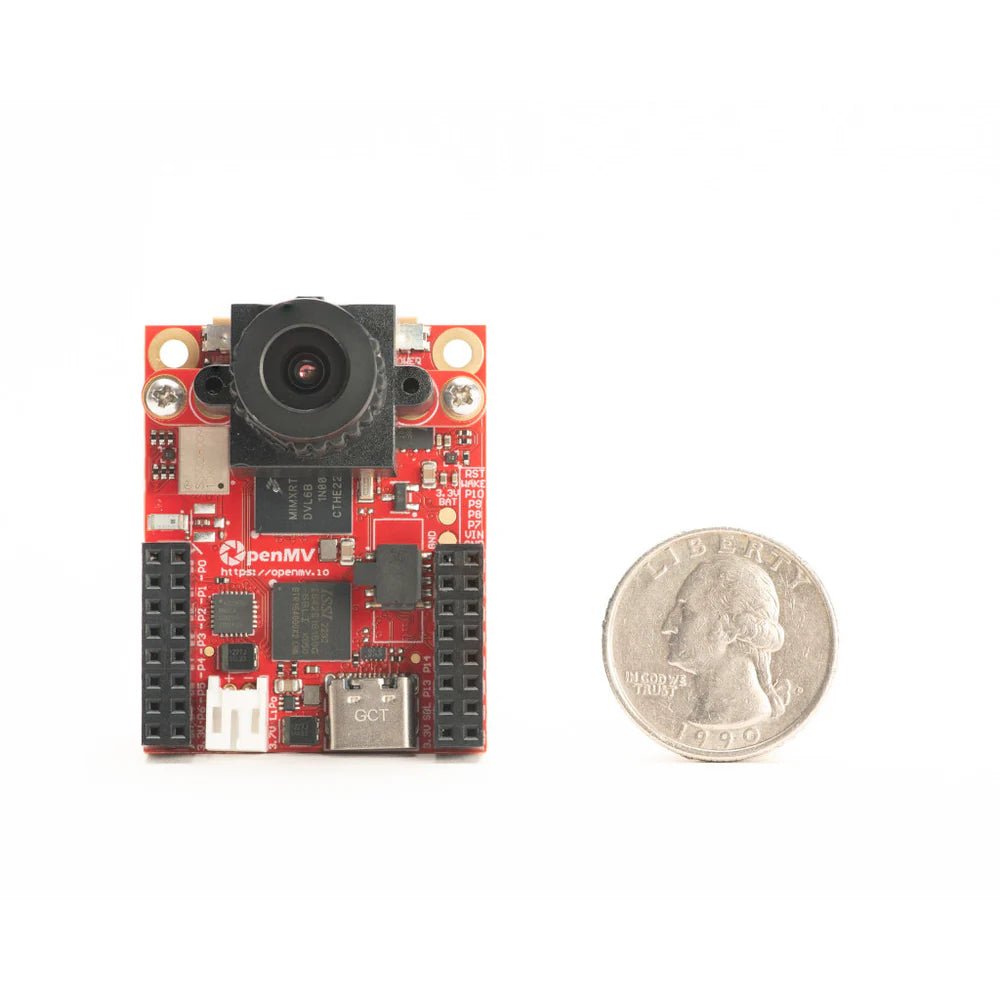

The OpenMV Cam is a small, low power, microcontroller board which allows you to easily implement applications using machine vision in the real-world. You program the OpenMV Cam in high level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python. You can easily trigger taking pictures and video on external events or execute machine vision algorithms to figure out how to control your I/O pins.

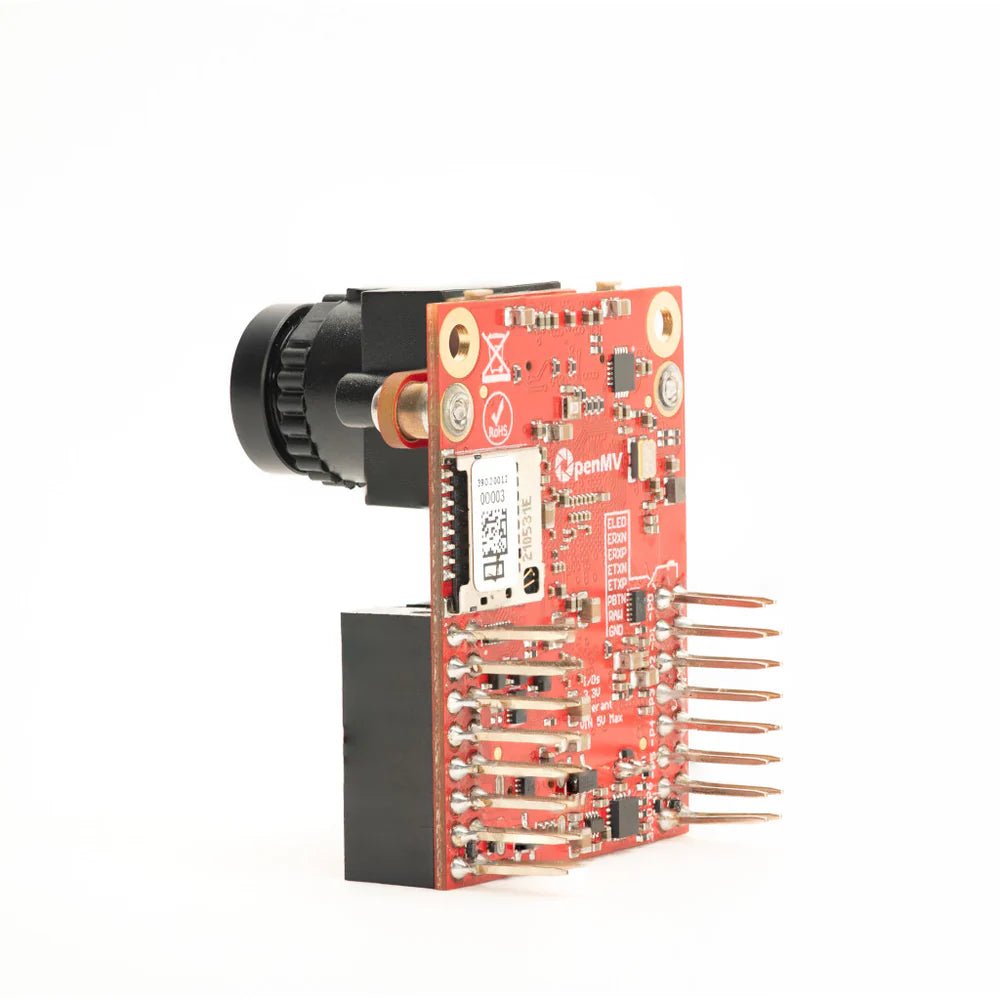

NOTE: The OpenMV Cam headers do not come pre-soldered.

The OpenMV Cam features:

  • The RT1062 ARM Cortex M7 processor running at 600 MHz with 32MBs SDRAM + 1MB of SRAM and 16 MB of program/storage flash. All I/O pins output 3.3V and are 3.3V tolerant. The processor has the following I/O interfaces:
    • 1.5A current limited.
    • With EMI Filtering and TVS protection.
    • With EMI Filtering and TVS protection.
    • One I/O pin for low power wakeup.
    • There is also a pin for device power button ON/OFF support.
    • With EMI Filtering and TVS protection.
    •  Option to use a U.FL antenna instead.
    • Ethernet Jack with PoE support via an external shield.
    • A high speed USB-C (480Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in.

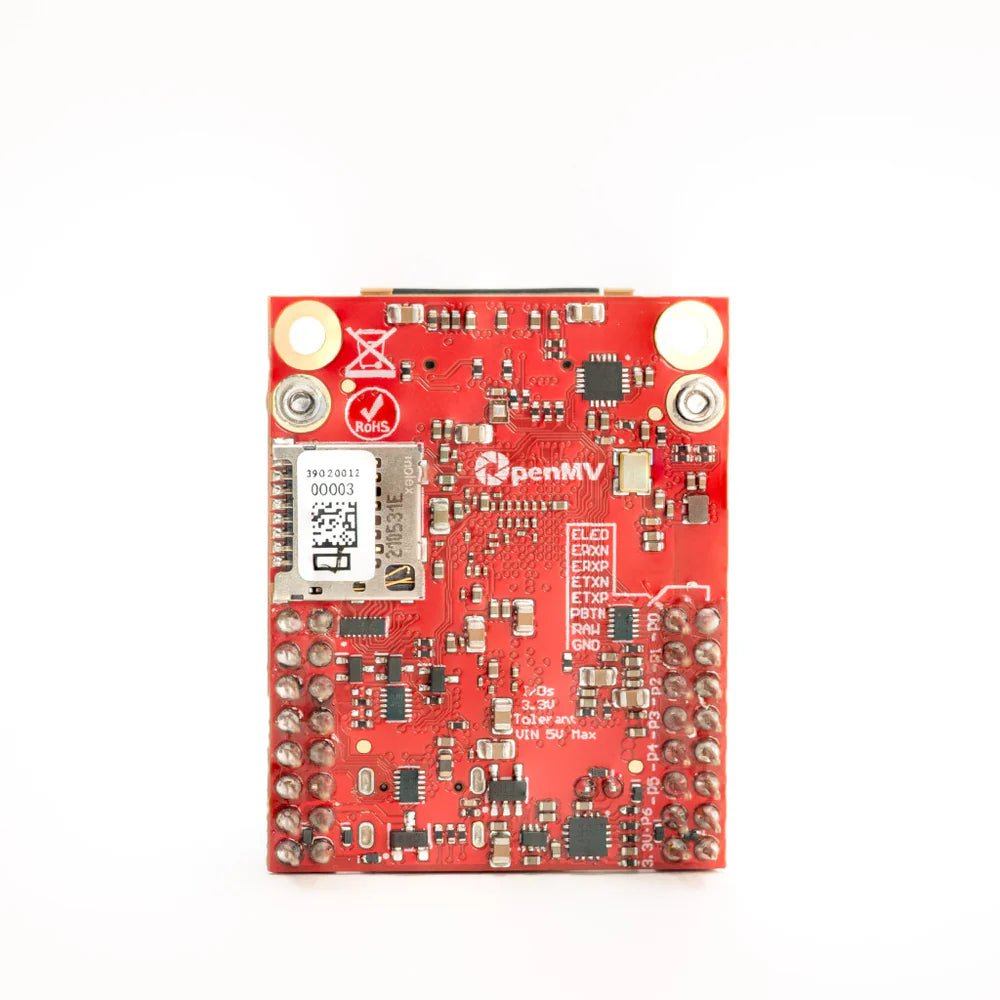

    • A μSD Card socket capable of 25MB/s reads/writes which allows your OpenMV Cam to take pictures and easily pull machine vision assets off of the μSD card.
    • A SPI bus that can run up to 60Mb/s allowing you to easily stream image data off the system to either the LCD Shield or another microcontroller.
    • An I2C Bus (up to 1Mb/s), CAN Bus (up to 1Mb/s), and an Asynchronous Serial Bus (TX/RX, up to 20Mb/s) for interfacing with other microcontrollers and sensors.
    • A 12-bit ADC (3.3V Tolerant).
    • Three I/O pins for servo control.
    • One I/O pin for frame sync/triggering (or servo control).
    • An onboard RTC which keeps running when the system is in low-power mode (the system draws less than 30uA in low-power mode).
    • Interrupts on all I/O pins (there are 14 I/O pins on the board).
    • A user controllable/dimmable RGB LED.
    • Another RGB LED for Charging, USB Power, VIN Power indication.
    • 32 MB of external 16-bit SDRAM clocked at 160 MHz for 320 MB/s of bandwidth.
    • 16 MB of program/storage quadspi flash clocked at 133 MHz in 4-bit SDR mode for 66 MB/s of bandwidth (read speed).
    • A 12-bit X/Y/Z accelerometer (2/4/8g) centered underneath the camera module.
    • Onboard WiFi (a/b/g/n - 11/54/65 Mb/s) and Bluetooth (v5.1 - BR/EDR/BLE) module with a chip antenna.
    • Onboard 10/100 Mb/s Ethernet
    • Strong Cryptographic Authentication Secure Element support via the SE050C1HQ1.

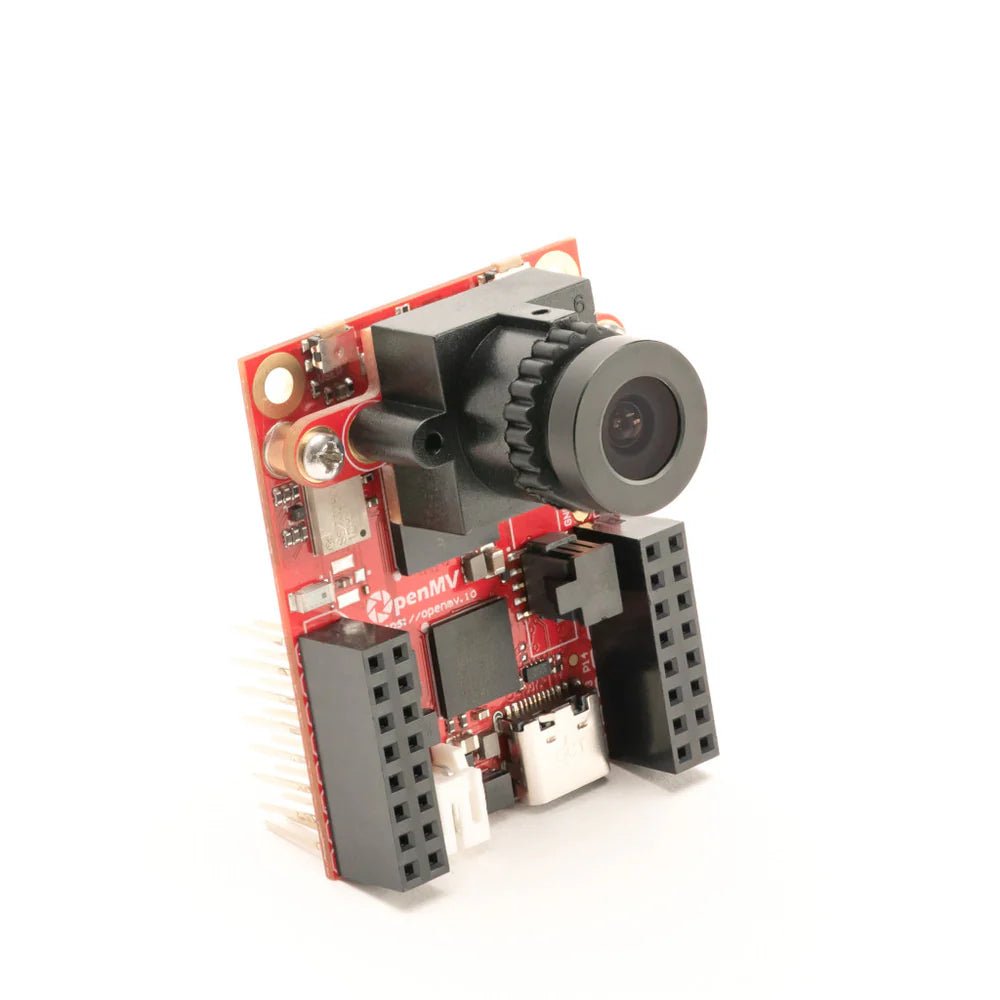

  • A removable camera module system allowing the OpenMV Cam RT1062 to interface with different sensors:
    • The OpenMV Cam RT1062 comes with a OV5640 image sensor is capable of taking 2592x1944 (5MP) images. Most simple algorithms will run about 40 FPS on QVGA (320x240) resolutions and below. If you want to use more specialized lenses with your image sensor you can easily buy and attach them yourself.
    • For professional machine vision applications you can buy our Global Shutter Camera Module.
    • For thermal machine vision applications you can buy our FLIR Lepton Adapter Module.
  • A LiPo battery connector compatible with 3.7V LiPo batteries commonly sold online for hobbyist robotic applications with battery charging support via USB.
    • 100 mA Fast Charge Current
    • With TVS Protection.
  • An ARM 10-pin JTAG Header Compatible with SEGGER J-Link Devices for debugging and programming.
    • With EMI Filtering and TVS protection.
  • External 5V VIN with reverse supply protection.
    • With TVS Protection.

Specifications

Processor:

  • ARM® 32-bit Cortex®-M7 CPU w/ Double Precision FPU
  • 600 MHz (1284 DMIPS)
  • Core Mark Score: 3020 (compare w/ Raspberry Pi 3: 3800)

RAM Layout (33MB Total):

  • 32KB Stack
  • 480KB .DATA/.BSS/Heap/DMA
  • 32MB Frame Buffer/Stack
  • 512KB SDRAM Cache

Flash Layout (16MB Total):

  • 256KB Bootloader
  • 3.768MB Firmware
  • 4MB Embedded Flash Drive
  • 8MB Reserved

Supported Image Formats:

  • Grayscale
  • RGB565
  • JPEG (and BAYER/YUV422)

Maximum Supported Resolutions:

  • Grayscale: 2952x1944 (5MP) and under
  • RGB565: 2952x1944 (5MP) and under
  • Grayscale JPEG: 2952x1944 (5MP) and under
  • RGB565 JPEG: 2952x1944 (5MP) and under

Lens Info:

  • Focal Length: 2.8mm
  • Aperture: F2.0
  • Format: 1/3"
  • HFOV = 70.8°, VFOV = 55.6°
  • Mount: M12*0.5
  • IR Cut Filter: 650nm (removable)

Electrical Info:

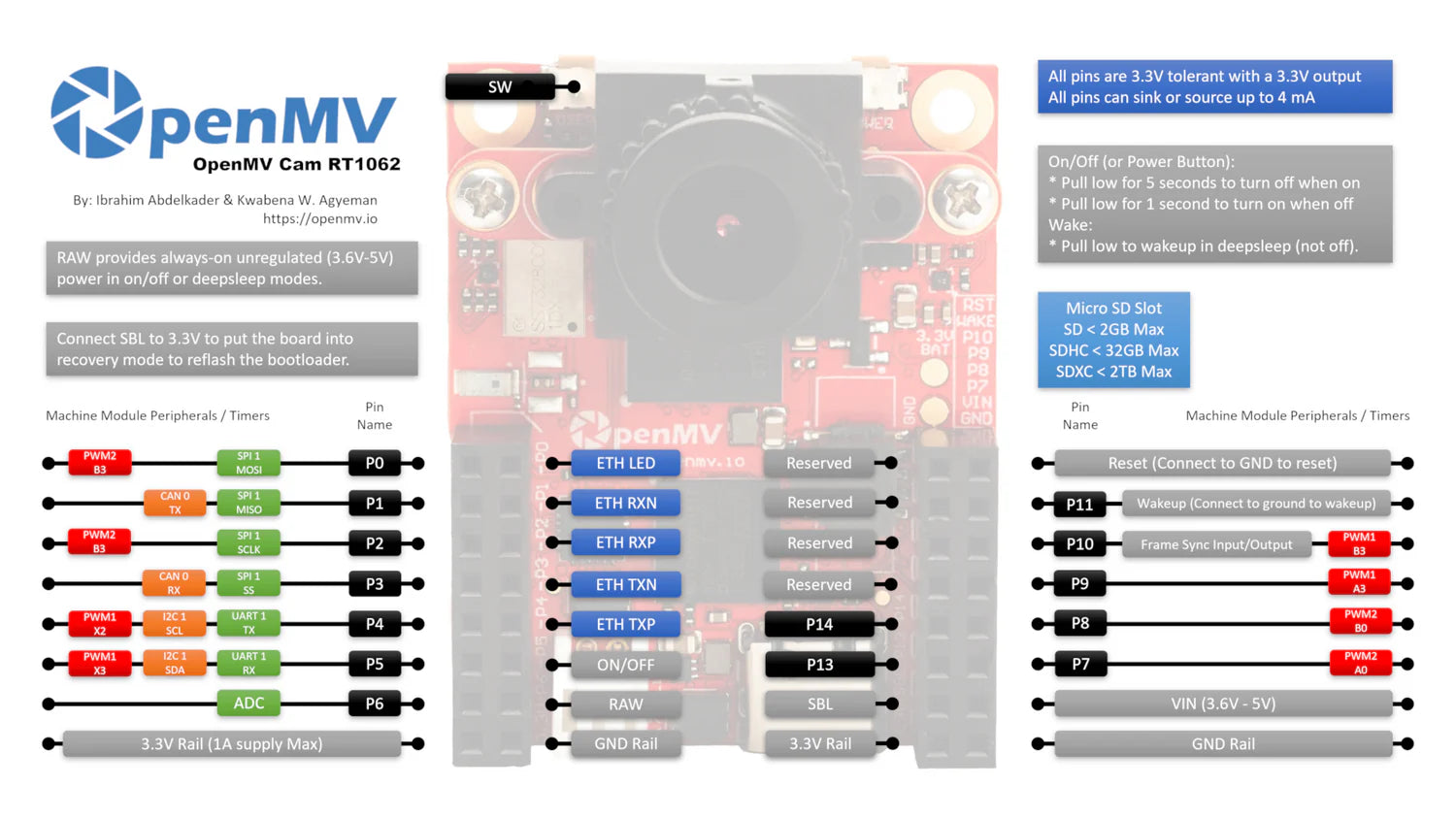

All pins are 3.3V tolerant with 3.3V output. All pins can sink or source up to 4mA. VIN may be between 3.6V and 5V. Do not draw more than 250mA from your OpenMV Cam's 3.3V rail.

Power Consumption

  • Deep Sleep: 30µA @ 3.7V (Powered only via LiPo Battery)
  • Deep Sleep: 1.6mA @ 5V
  • Idle: 100mA @ 5V
  • Active: 130mA @ 5V



Resources

3D Model
Case
Mount
Power and Battery Guides
Datasheets
Certificates



Dimensions

  • Length: 45 mm
  • Width: 36 mm
  • Height: 29 mm

Temperature Range

  • Storage Temperature: -25°C to 85°C
  • Operating Temperature: 0°C to 70°C

Export Information

  • Country of Origin: China
  • HS Code: 8542.90
  • Weight: 20 g
  • UPC: 608275911122 (V5)
  • SKU: OMV-CAM-RT1062-V2 (V5)
