OpenMV - Boson® Adapter Module

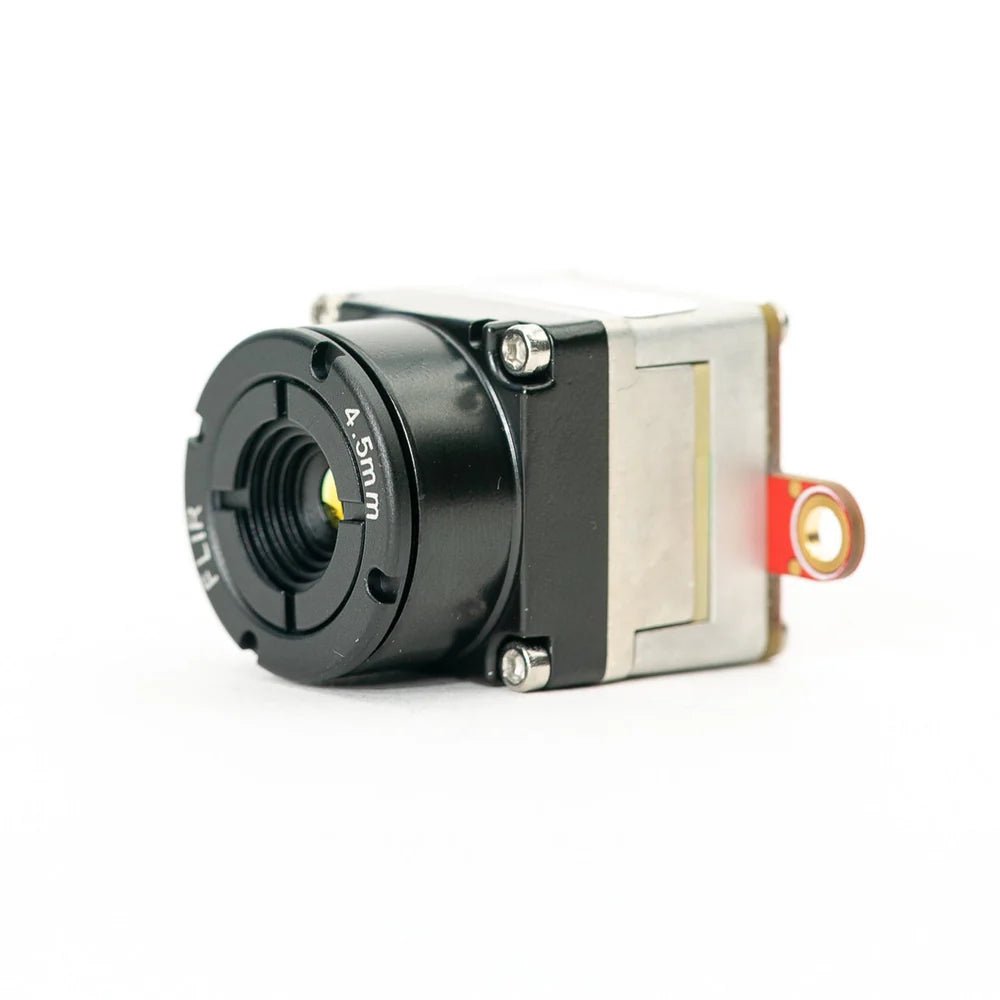

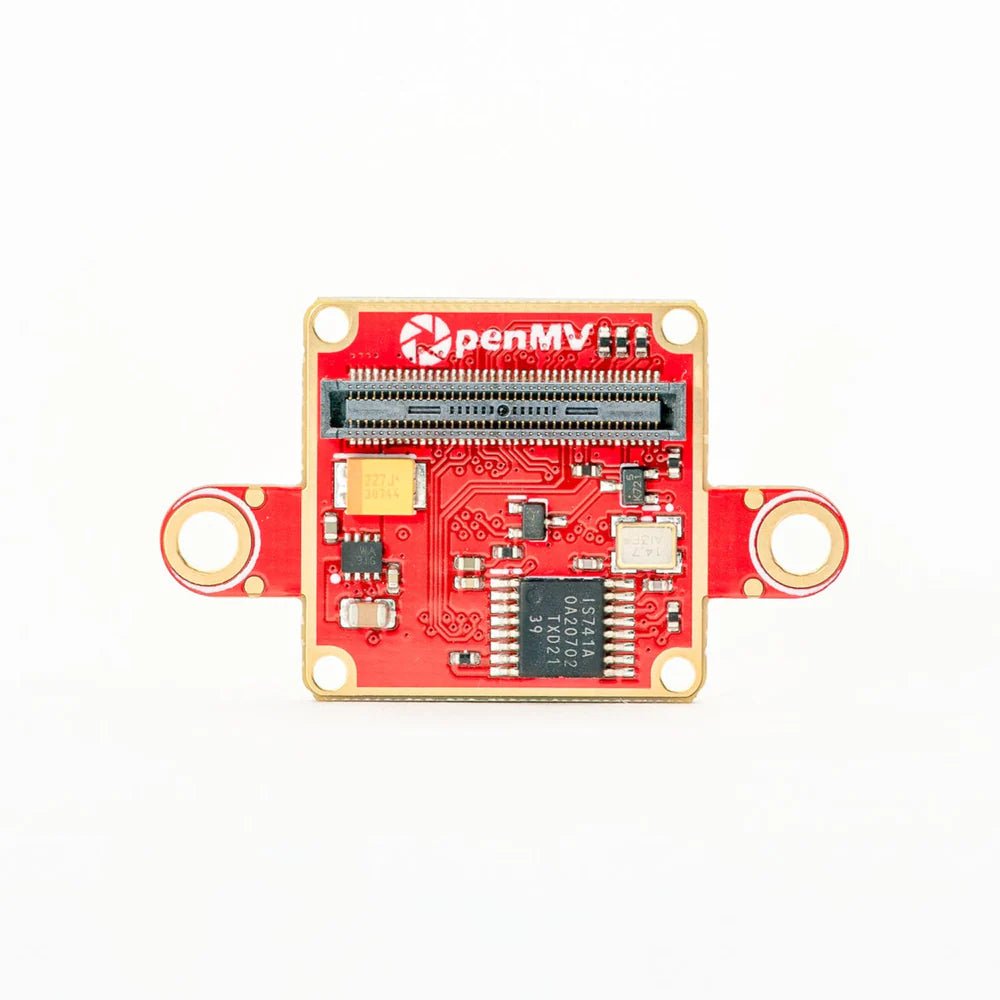

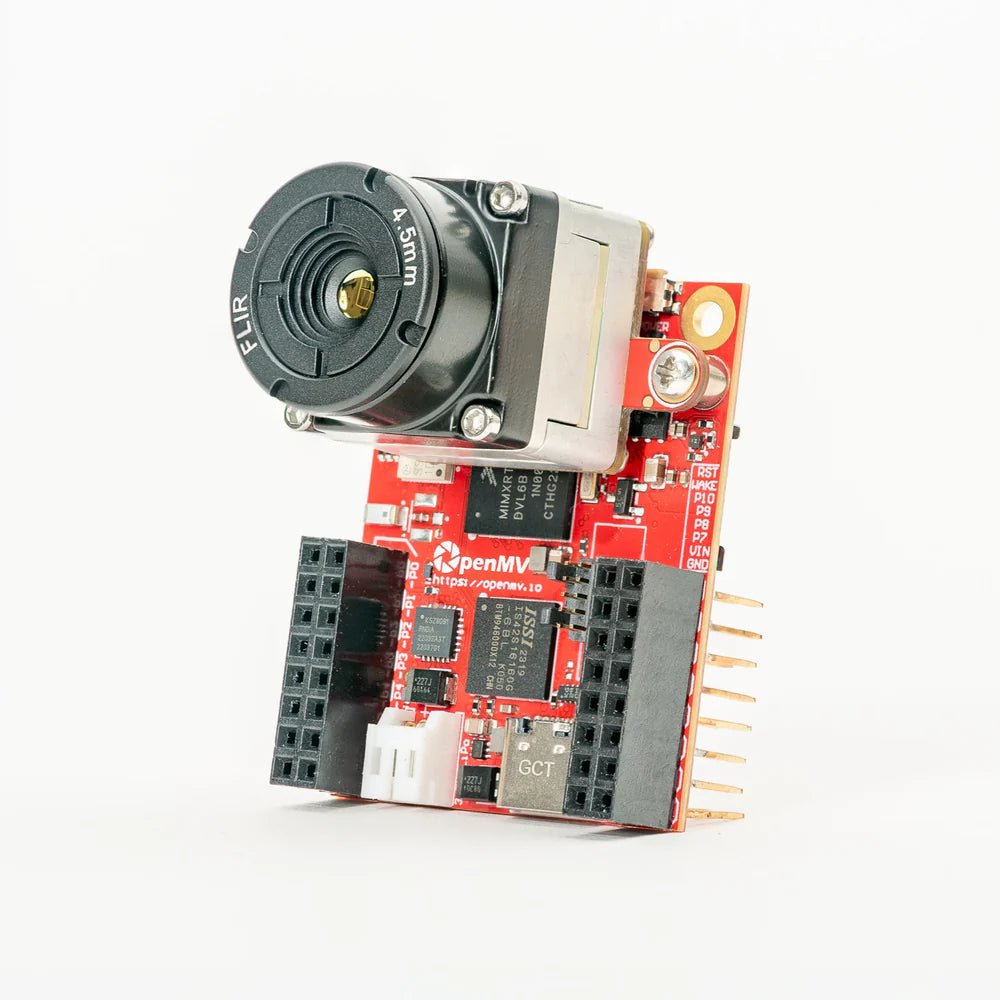

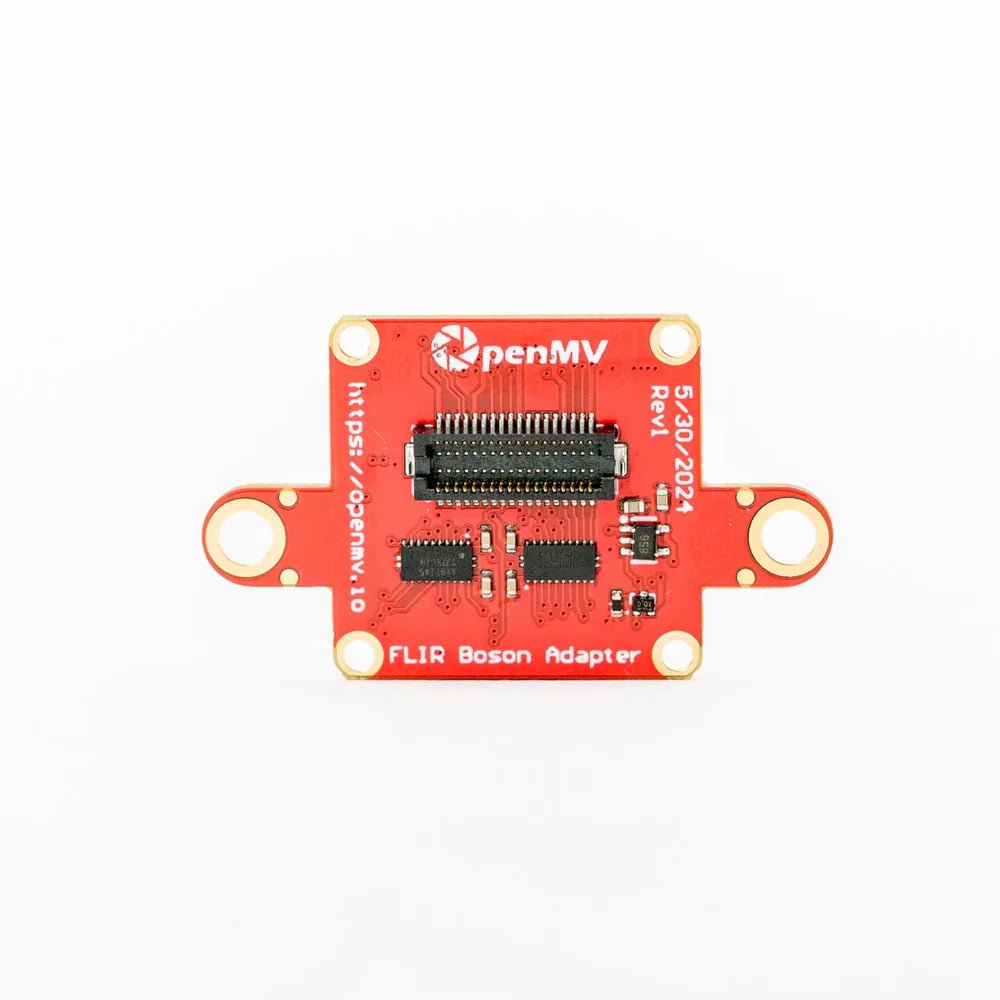

The OpenMV Boson Adapter Module allows your OpenMV Cam to interface a Teledyne FLIR Boson or Boson+ Thermal Imaging sensors for Thermal Vision applications (Boson sold separately) . This adapter module is compatible with RT1062 or newer OpenMV Cam models (sold separately).

Specifications

• Compatible with Boson and Boson+ sensors.

Power Consumption

• Normal - Shutter Open (no FCC): 400 @ 3.3V
• Calibrating - Shutter Closed (FCC): 750mA @ 3.3V

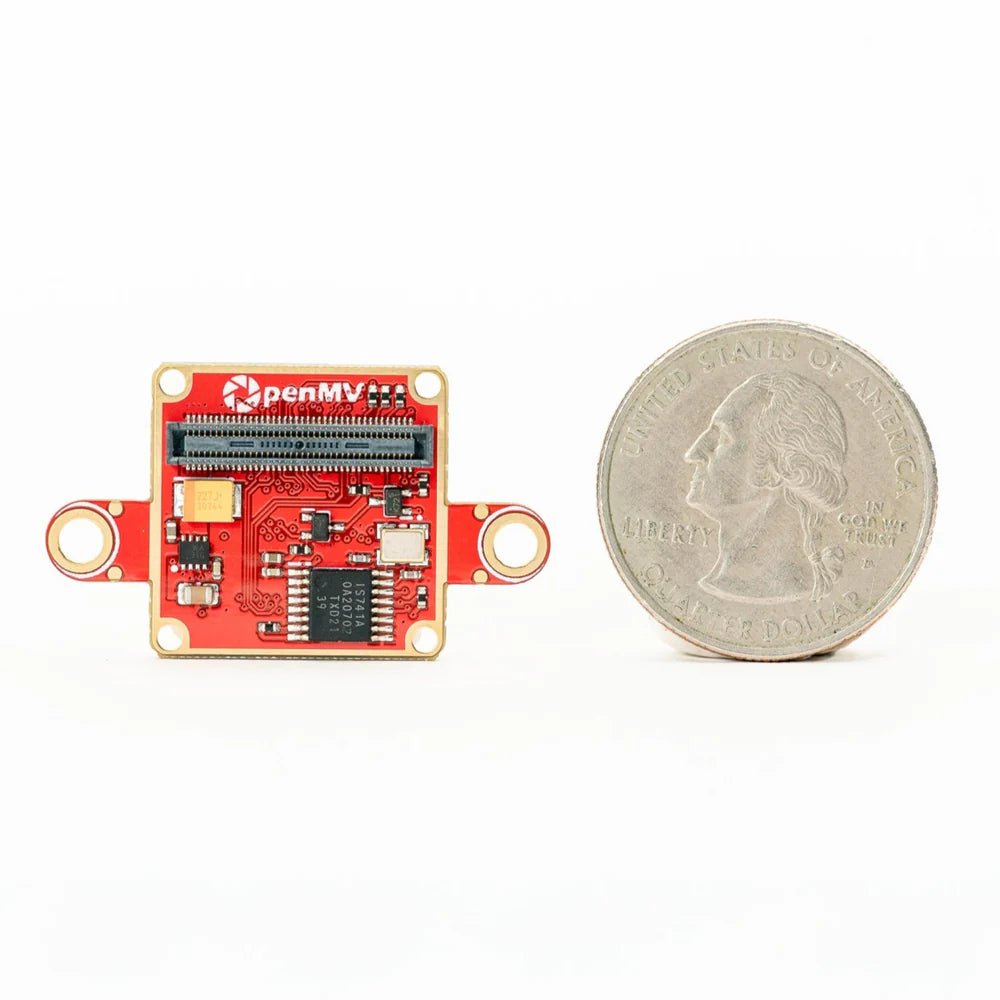

Dimensions

• Length: 35 mm
• Width: 21 mm
• Height: 7 mm
• Weight: 2 g

Temperature Range

• Storage Temperature: -35°C to 85°C
• Operating Temperature: -35°C to 85°C


Resources

3D Model

• FLIR® Boson® Adapter Model (.step)
• FLIR® Boson® Adapter Model with FLIR® Boson® (.step)

Cover

• FLIR® Boson® RT1062 V5 Case (.stl)
• FLIR® Boson® RT1062 V4 Case (.stl)
• FLIR® Boson® RT1062 V4/V5 PoE Case (.stl)
• FLIR® Boson® RT1062 V4/V5 LCD Case (.stl)
• FLIR® Boson® H7 and H7 Plus Case (.stl)
• FLIR® Boson® H7 and H7 Plus LCD Case (.stl)

Datasheets

• I2C to UART Bridge Datasheet: SC16IS741A (.pdf)
• Level Shifter Datasheet: SN74AXC8T245 (.pdf)
• Level Shifter Datasheet: NXB0101 (.pdf)
• Power Switch Datasheet: AP22800 (.pdf)
• Voltage Regulator Datasheet: MIC5365 (.pdf)

Export Information

• Country of Origin: China
• HTSUS: 8542.90
• UPC: 608275911115
• SKU: OMV-MOD-BOSON-V1
