GPS + Receiver Module PA1616S for AudioMoth Dev
GPS + Receiver Module PA1616S for AudioMoth Dev
A compact PA1616S-based GPS module: 33 tracking / 66 acquisition channels, −165 dBm sensitivity, patch antenna onboard, UART+I²C interface, up to 10 Hz update, low‑power (20 mA tracking), supports 1‑PPS timing, QZSS/SBAS.
SKU: SKU:MOTH-GPS-PA1616S
Only 90 left in stock!
Couldn't load pickup availability

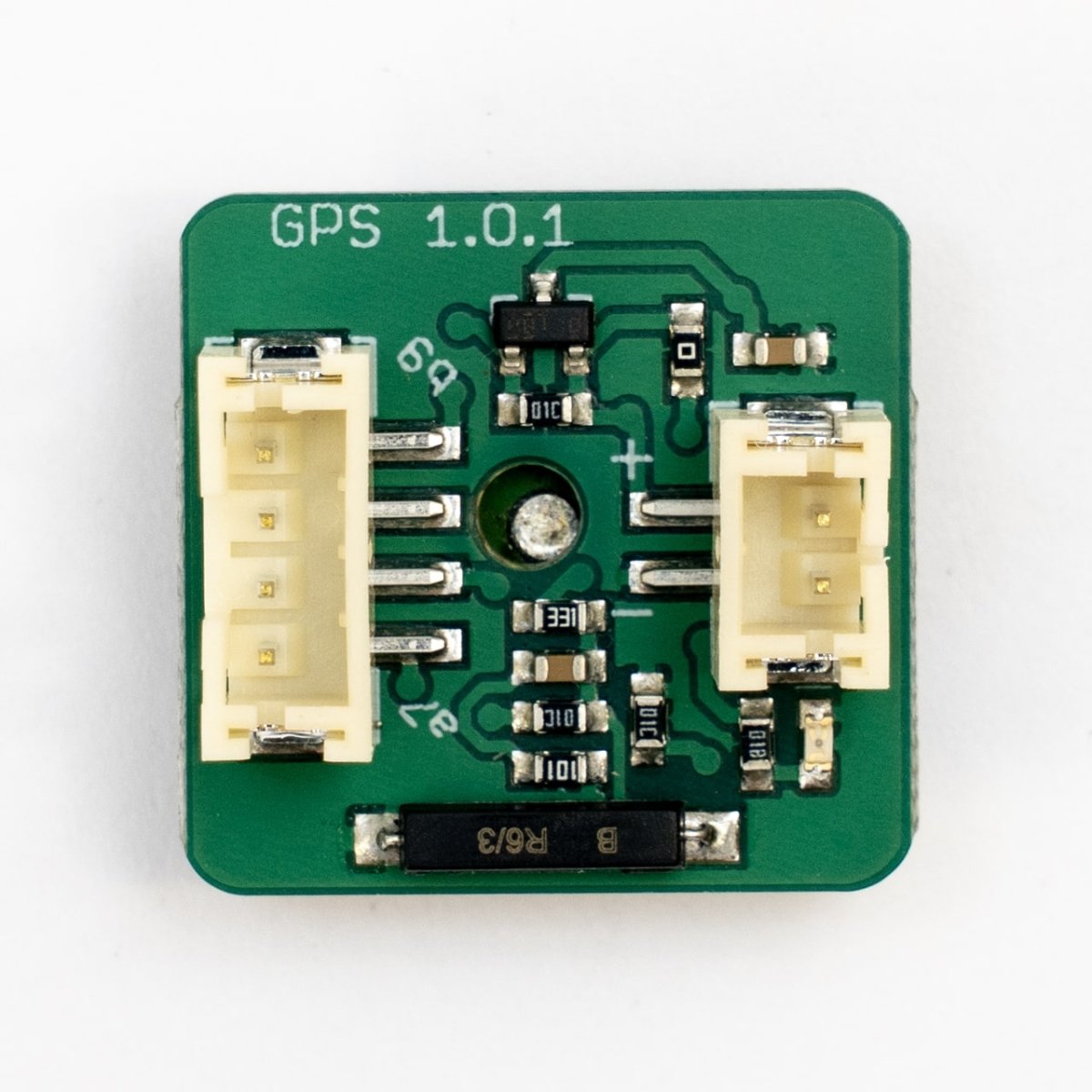

The AudioMoth GPS Board (PA1616S variant) is a hardware module that extends AudioMoth Dev with a connected GPS module and magnetic switch.
- Connects to AudioMoth Dev using the GPIO and power JST sockets
- Can also be soldered to standard AudioMoth (version 1.1.0 onwards)
- Automatically supported by the standard AudioMoth firmware
- Also compatible with the AudioMoth-GPS-Sync firmware
Includes
- 1 x Power
- 1 x Data Cables

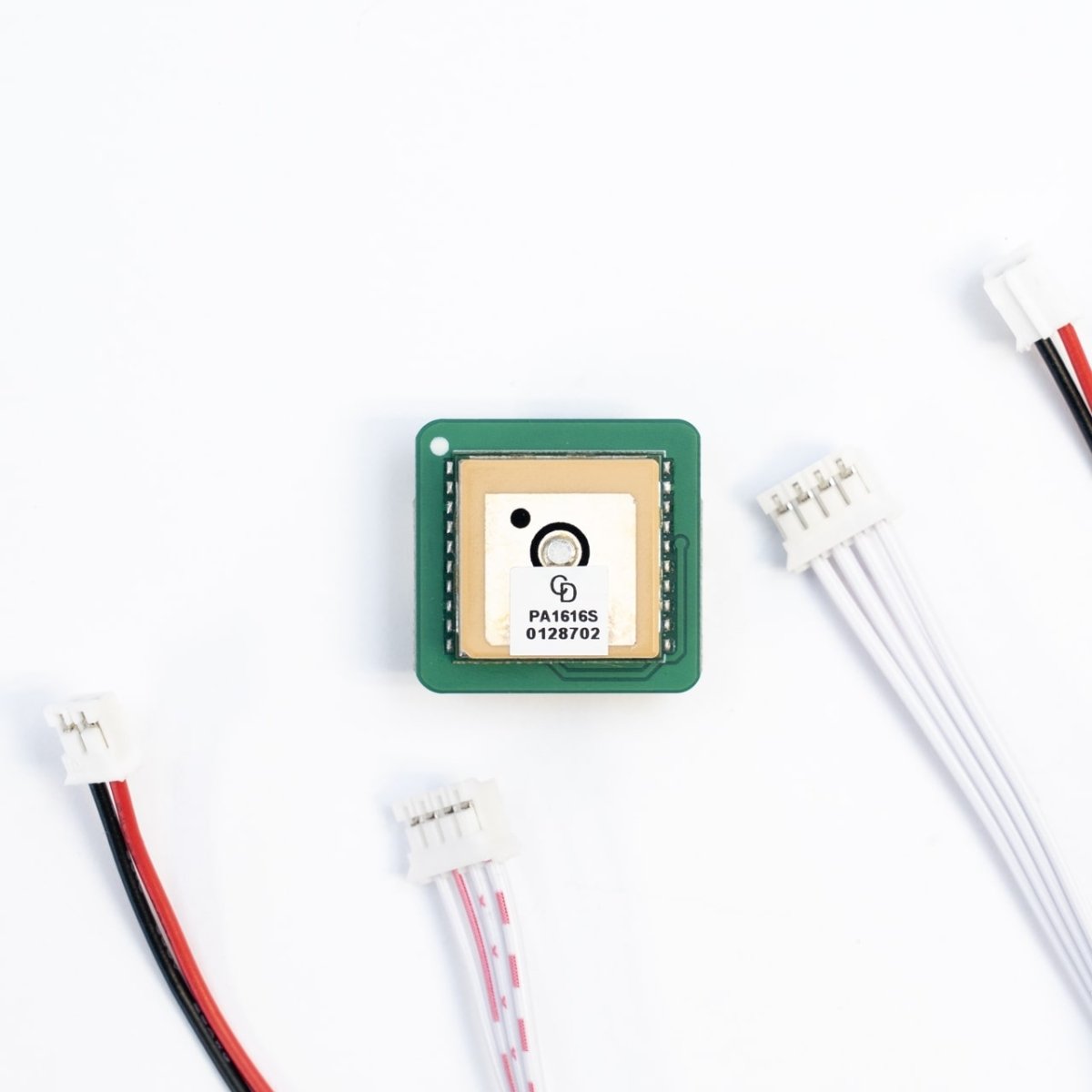

- PA1616S GPS Module
Resources
- Using AudioMoth GPS Sync to Make Synchronized Recordings - .pdf - GitHub
Important Notes
- International Duties and Taxes are not included, you may be required to pay these before delivery.
- Once your order is shipped you will receive an automatic email with your tracking information.
- Requires AudioMoth Dev to work, see GitHub Repo link under resources for more detailed information
- AudioMoth HTSUS 8517.62.0090
