Calumino Evaluation Kit (EVK)

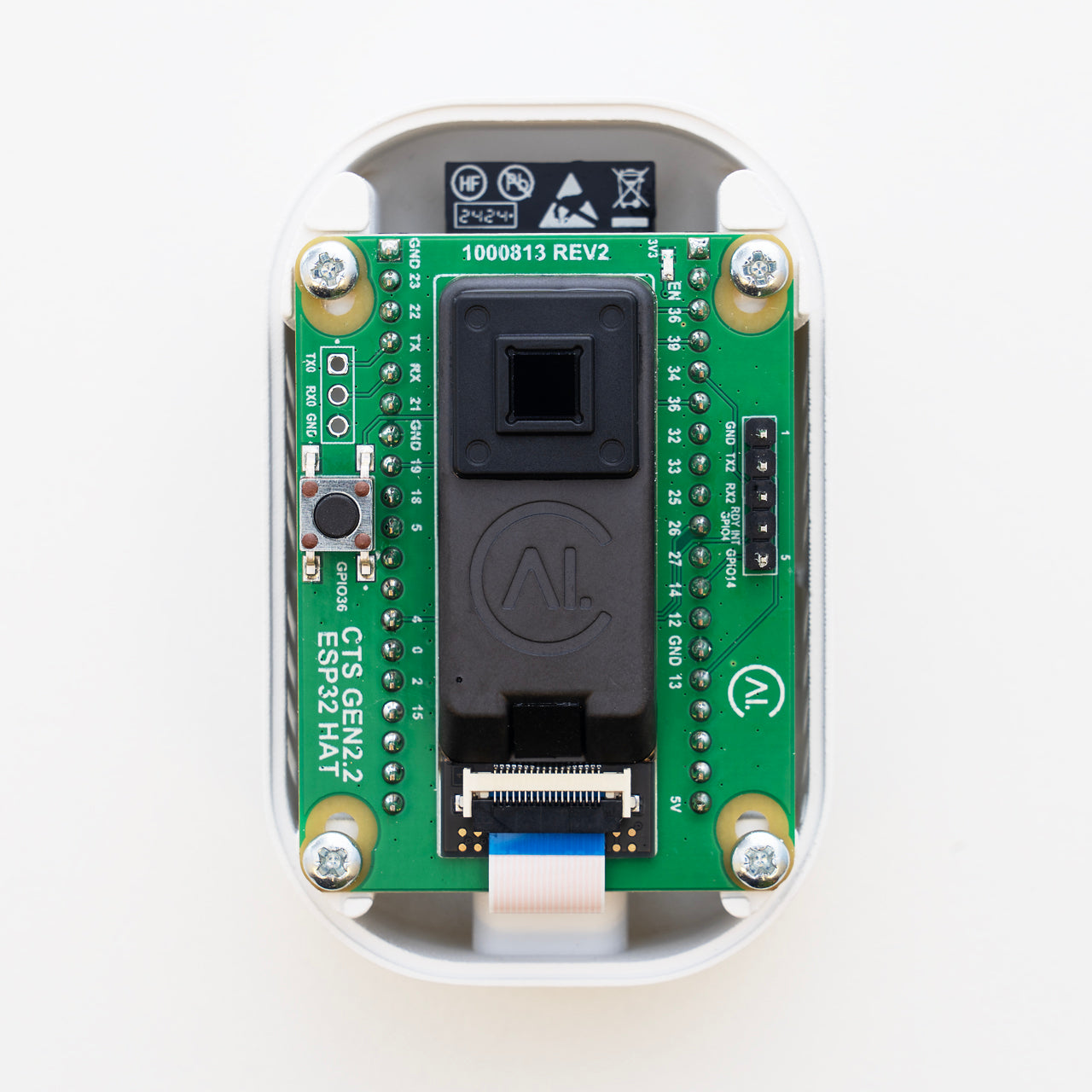

The Calumino Thermal Sensor (CTS) Evaluation Kit (EVK) enables customers to fast-track their product development. It is a simple way to evaluate Calumino’s thermal sensor and embedded AI technology. Calumino’s EVK offers instant access to AI-generated actionable insights with a direct connection to PC running Calumino’s CTS Player or via the cloud platform to enable swift validation of sensor performance and algorithms. The EVK includes the CTS, embedded AI analytics running on a low-power ESP32 processor, CTS player, and integration API.

To deliver new levels of insight and control for customers, Calumino has developed powerful and flexible software (CTS Player) to support the CTS and turn its thermal sensor data into actionable insights. Businesses can easily generate these actionable insights in real time and incorporate them into their operations and immediately see the benefits of reduced overhead, improved productivity, and enhanced security and safety.

Today the CTS Player provides accurate person detection and tagging within the field of view, the ability to save raw thermal images, presence maps or just the AI output. The Calumino cloud platform (Thermal.ai) offers additional features such as real-time streams of multiple classes of detections, as well as SMS, email and Slack integrations. Additional AI capabilities will be rolled out on the EVK over time.

Superior Performance
The patented Micro-Optical Mechanical System (MOMS) has a fundamentally better Signal to Noise Ratio (SNR) than other thermal technologies.

Privacy-Safe
With a native low-resolution of 28 x 15 pixels, the Calumino Thermal Sensor generates a 100% privacy non-intrusive thermal image — no personally identifiable information (PII) is captured, ever.

Shutterless Design
Automatic shutterless correction increases reliability and delivers uninterrupted thermal imaging, enabling continuous real-time analytics.

Radiometrically Stable
Thermoelectric properties do not drift over time enabling true temperature measurements without a blackbody reference source.

Highlights

Calumino's on-edge AI analyzes thermal sensor imagery and translates them into actionable data and insights for businesses on human activity, temperatures and changes in behavior.

• GDPR compliant human activity data
• Data on temperature, fires, water leaks etc.
• Unlock dozens of benefits for existing and new industries

Calumino provides the world’s first and only combination of thermal sensor + on-edge AI, to unlock dozens of benefits for existing and new applications.

Specifications

• Model Number
  • STSEVK31N140WF
• FoV
  • (140°)
• Sensor technology
  • CTS Generation 2.2
• Physical dimension (L X W X H)
  • 38 mm (1.5 in) x 45 mm (1.8 in) x 72 mm (2.8 in)
• Weight
  • 55 g (0.12 lbs)
• Maximum detection distance of person of 1.7m height
  • 140°: 6 m (19.7 ft)
• Power supply USB
  • 5V/1A
• Operating modes
  • On-edge AI* (Available on request), CTS Player
• System requirements
  • Windows 10 or above
• Output data
  • JSON payload includes application specific counting data in real-time, raw
    thermal images, scene temperatures and metadata
• Output update rate
  • 4 Hz
• Network connection
  • Wi-Fi
• Data transmission protocol
  • MQTT (Wi-Fi), UART (over USB)

Active Area Dimensions

EVK, 140˚ field of view, with typical mounting heights between 2.0m (6.6 ft) and 4.0m (13.1 ft) has the following active area dimensions (X and Y).

Resources

• EVK Quick Start Guide
• EVK Brochure

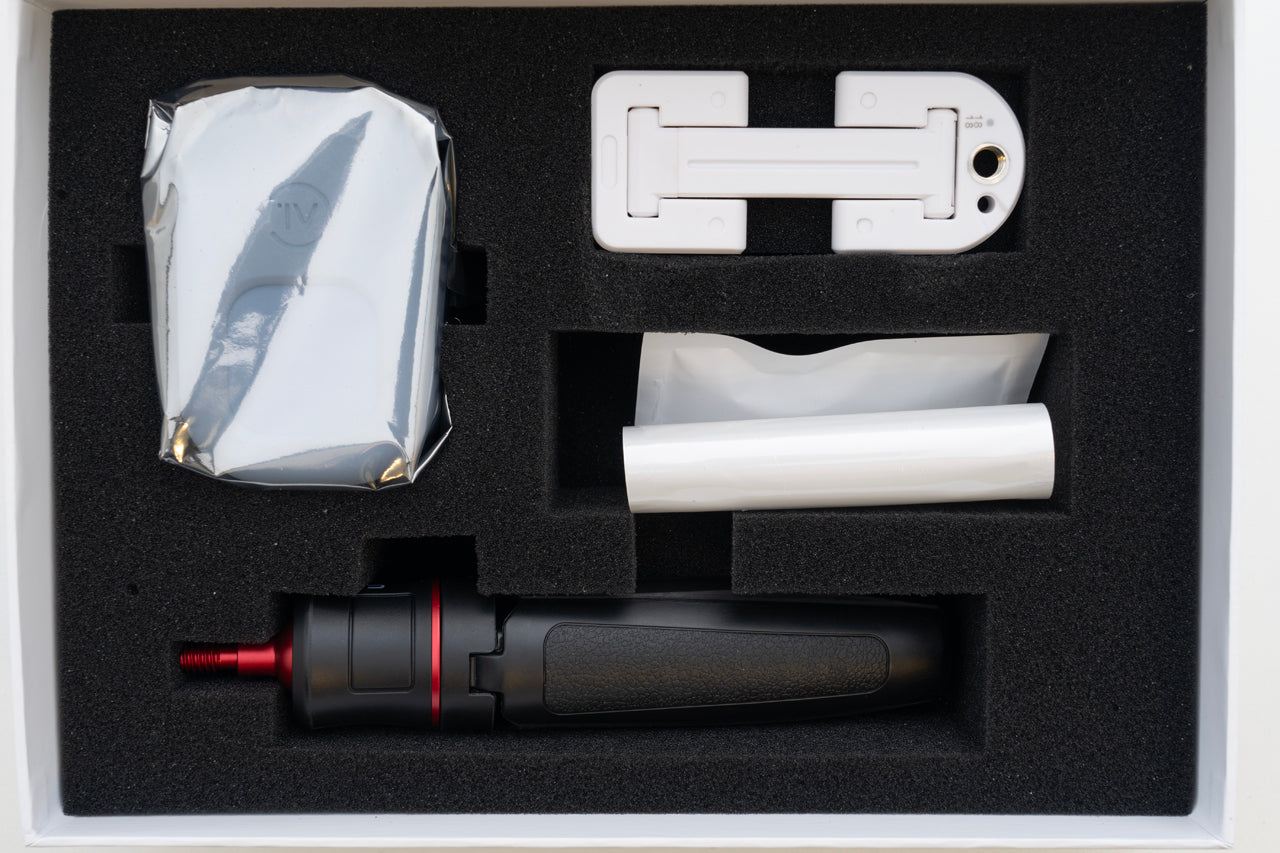

Included

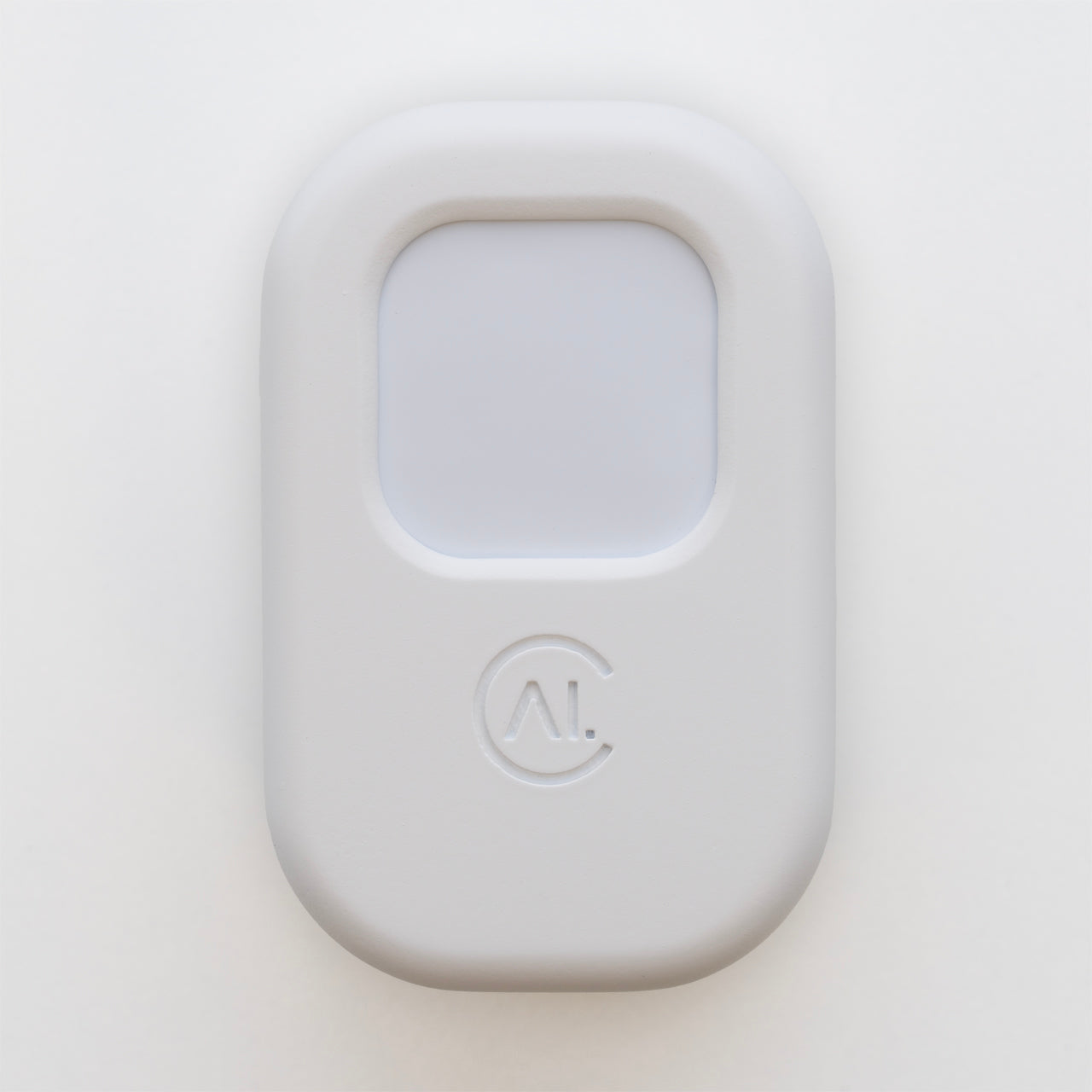

• Calumino Evaluation Kit (EVK)

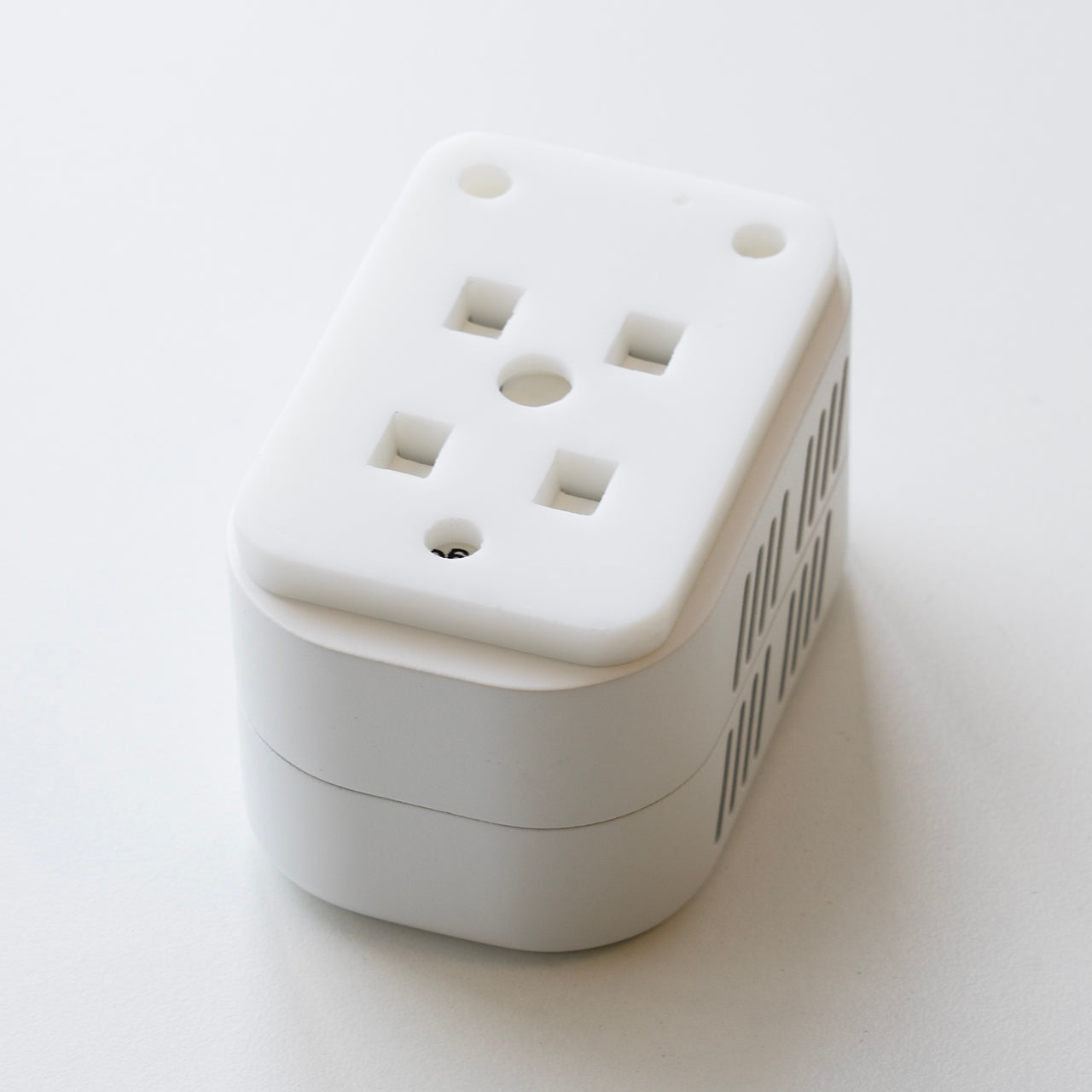

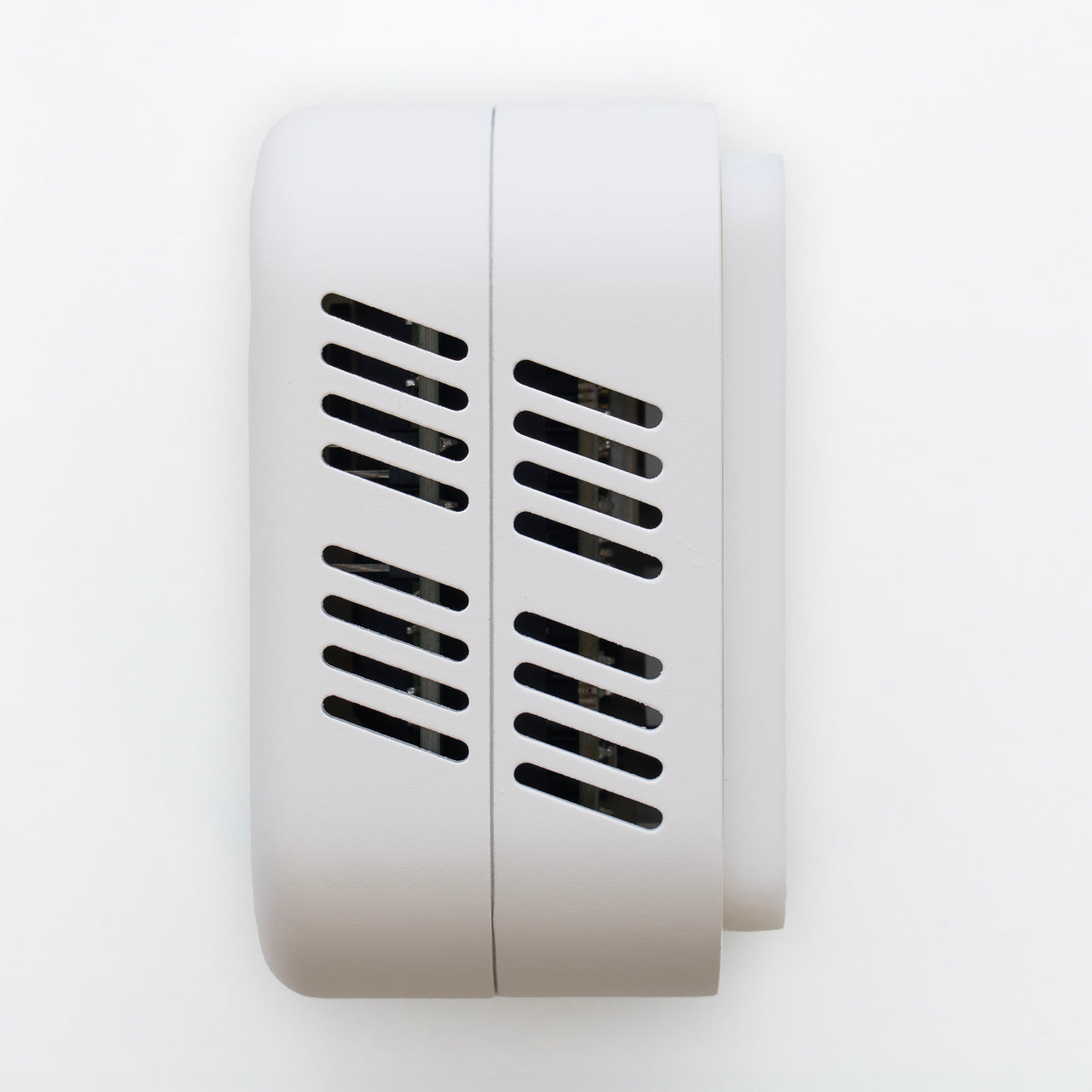

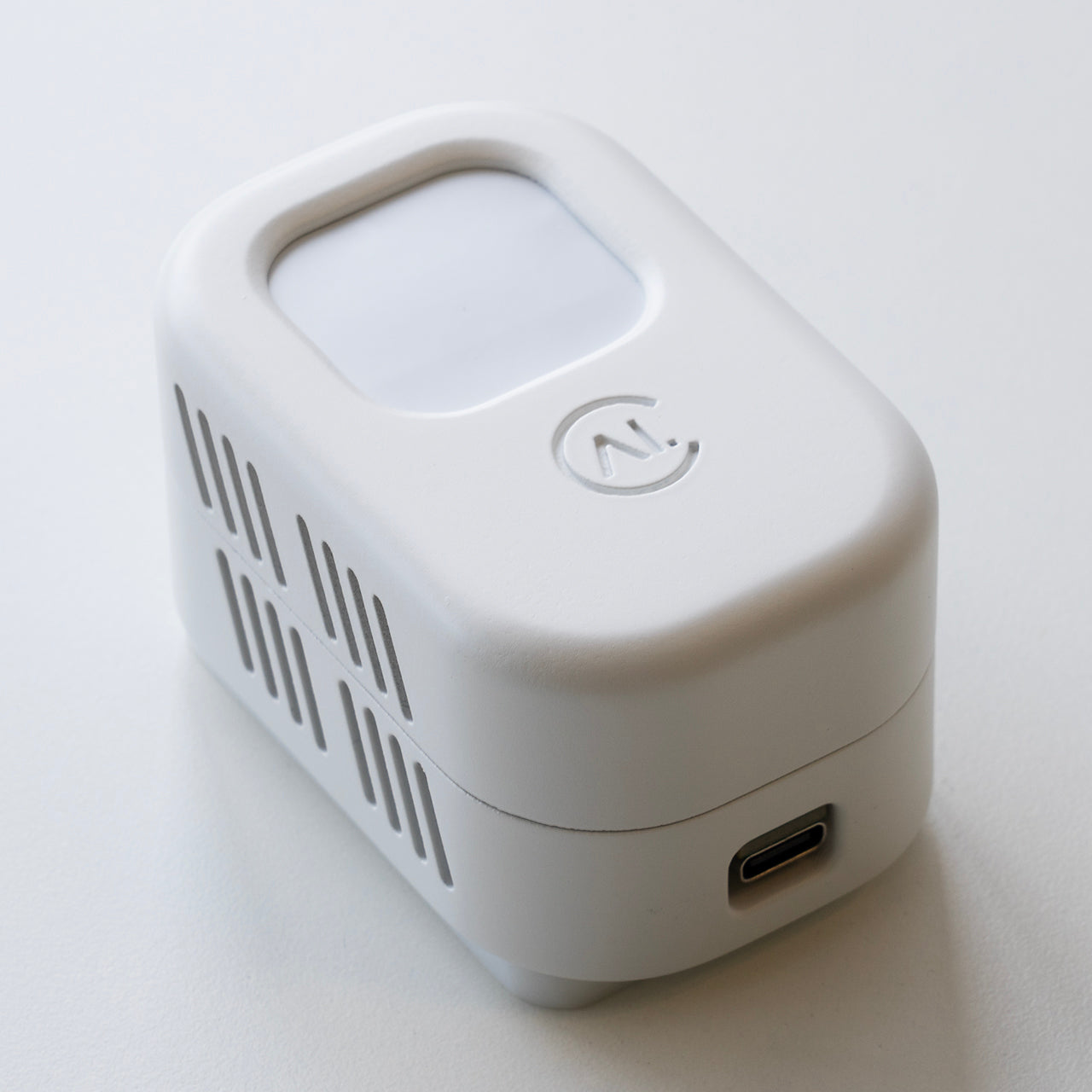

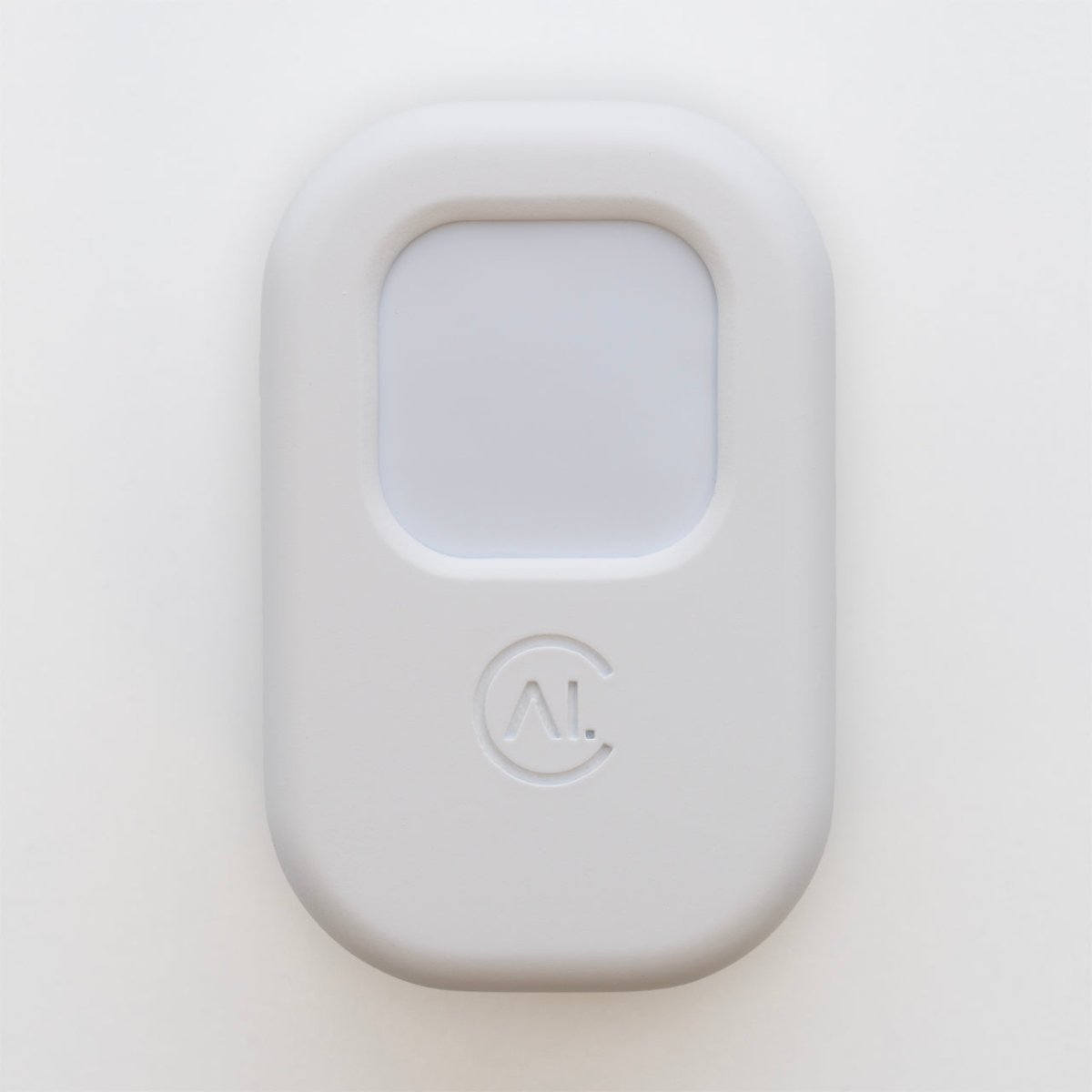

• Housing
• 5m USB cable

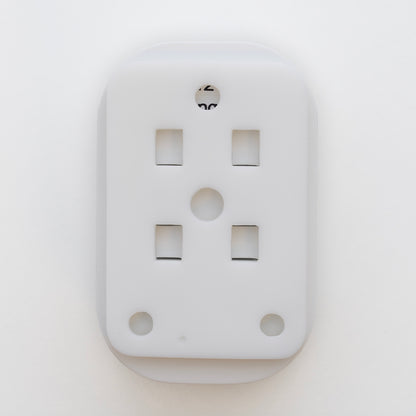

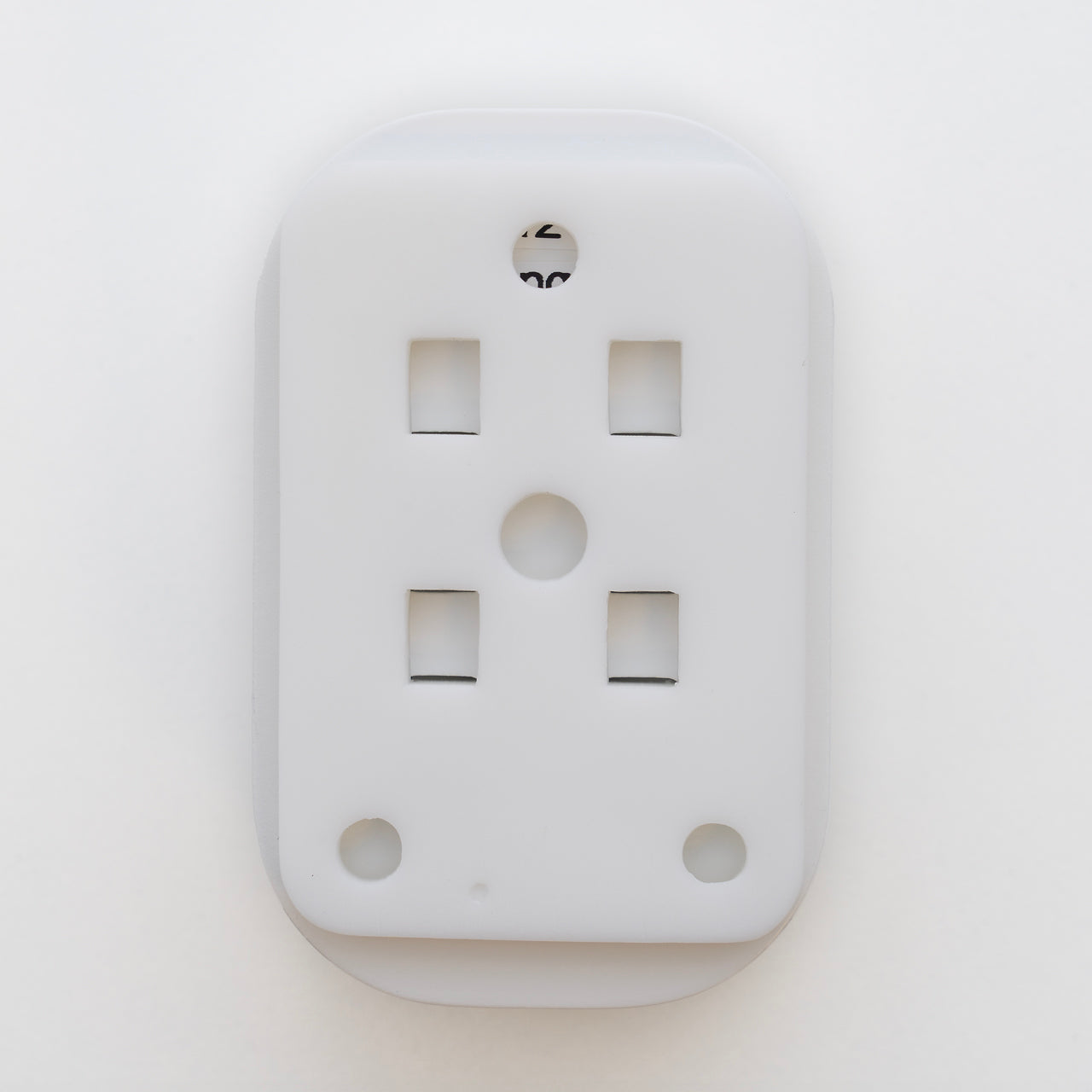

• Ceiling mounting bracket

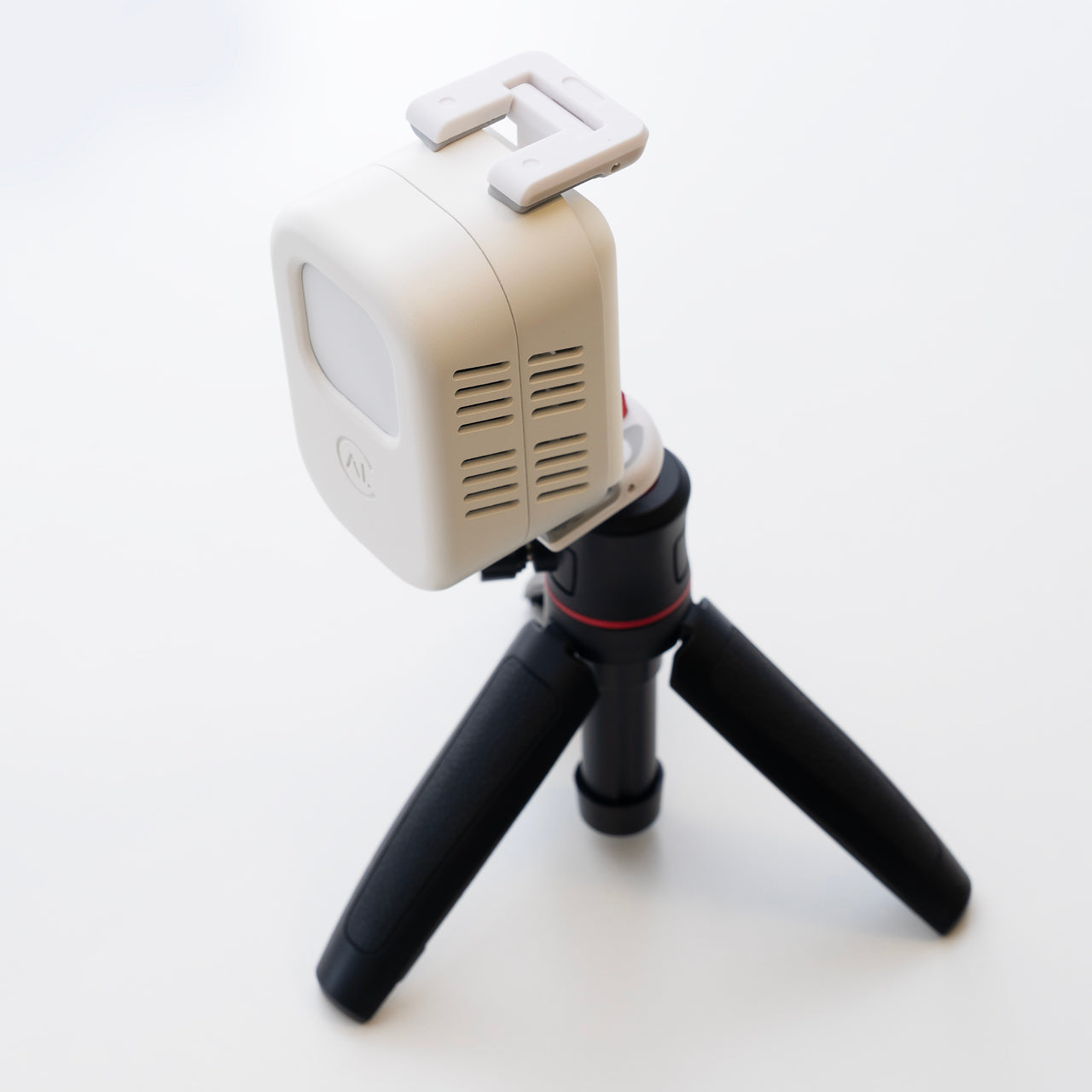

• Tripod mounting bracket
• Free access to on-cloud AI processing and dashboard
• Free usage of Calumino’s evaluation software “CTS Player”, which runs on a Windows PC

CTS Player

• PC based application to view live thermal feed, monitor detection outputs such as people counts, X,Y coordinates and temperatures.
• Hotspot detection feature
• Save and replay raw thermal data for custom use case post-processing

Export Information

• ECCN: CAM 6A993A
• HTSUS: 9027.50.4020


🕑Lead Time🕑

• Limited number in stock and ready to ship
