PureThermal Breakout Board by GetLab

Description

The PureThermal Breakout Board is an easy to interface evaluation board used to quickly evaluate the FLIR Lepton® thermal camera modules. It’s compatible with many low-cost ARM based evaluation boards, in addition it’s easy to connect to pin outs for Arduino or via short jumper wires to Raspberry Pi.

Features

• Compatible with Lepton 2.x and 3.x
• Access to SPI and I2C camera module interfaces
• Provides 25-MHz reference clock
• Provides Power Regulation from 3.3-5V input

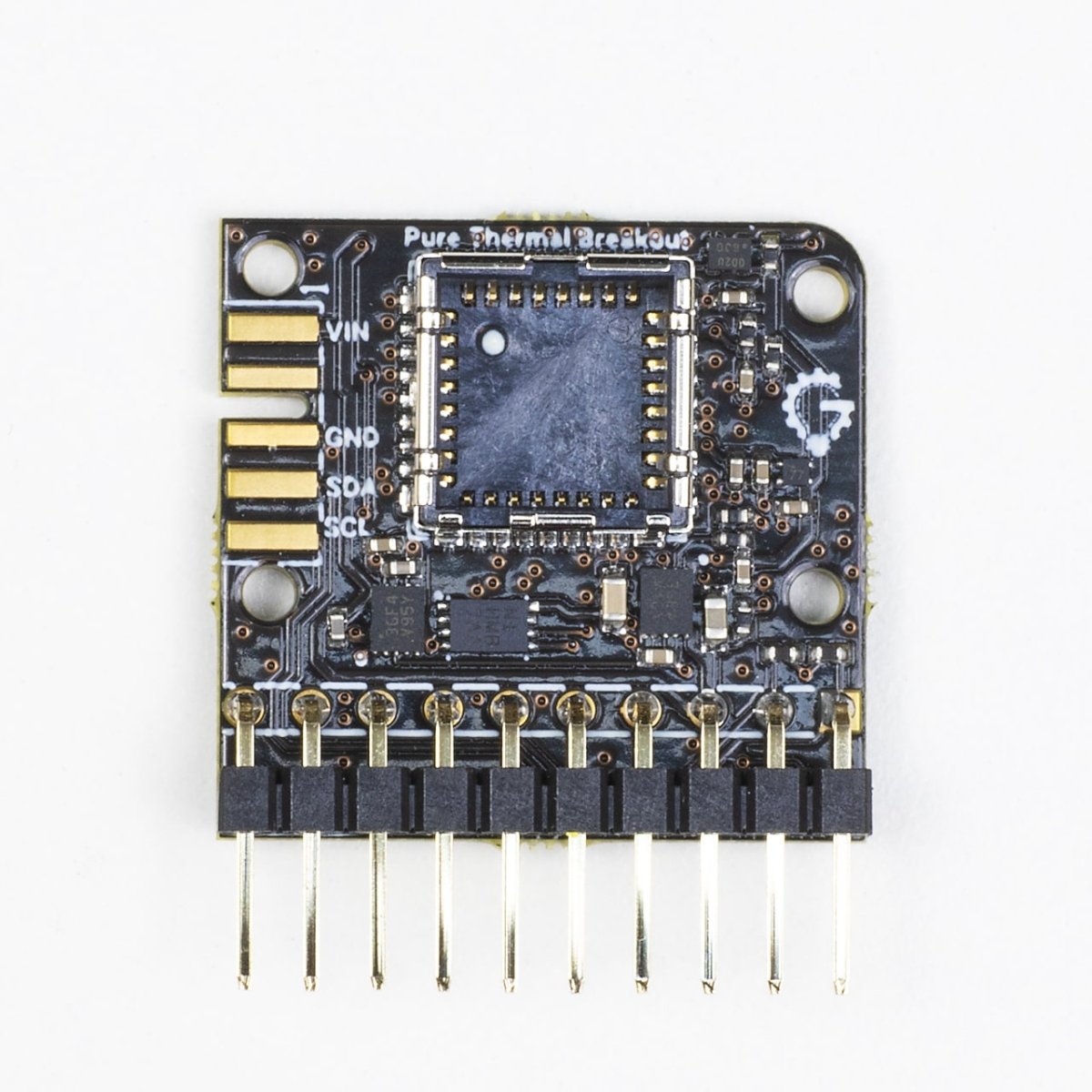

• 32-pin Molex camera socket for Lepton® Module
• PureModules compatible connector
• VSync and Enable Pins

Applications

• Thermal Imaging
• Non-contact temperature measurements
• Motion Sensing
• Night Vision
• Gesture Recognition

Specifications

• Power Inputs
  • 3.3-5V
• Maximum Input Voltage
  • 5V
• Lepton Core Support
  • Lepton 2.x and 3.x
• Thermal Video Outputs
  • SPI
• PureThermal Mini Part Number
  • GG-PURETHERMAL-BB1.0
• PureModules Connector
  • AVX: 009159010061916

Essential Resources

• PureThermal Breakout Board - Datasheet - 1.3 - October 5th 2020

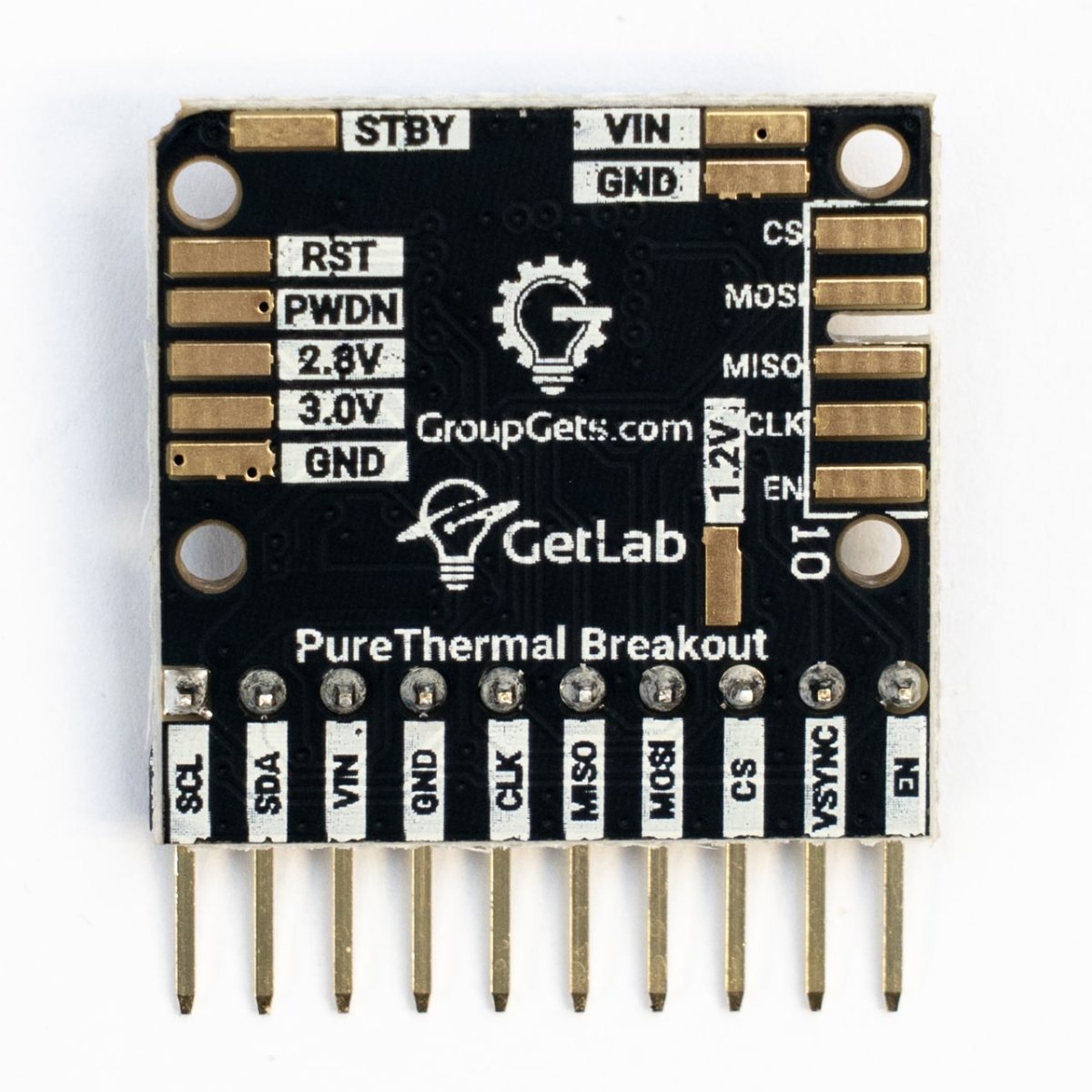

Pinouts

• Pin 1 - SCL
  • Camera Control Interface Clock, I2C
• Pin 2 - SDA
  • Camera Control Interface Data, I2C
• Pin 3 - VIN
  • 3-5 V Supply input
• Pin 4 - GND
  • Common Ground
• Pin 5 - CLK
  • Video Over SPI Slave Clock
• Pin 6 - MISO
  • Video Over SPI Slave Master In Slave Out
• Pin 7 - MOSI
  • Video Over SPI Slave Master Out Slave In
• Pin 8 - CS
  • Video Over SPI Slave Chip Select (active LOW)
• Pin 9 - VSYNC
  • VSync
• Pin 10 - EN
  • Enable, Active High
