PureThermal 3 by GetLab

Description

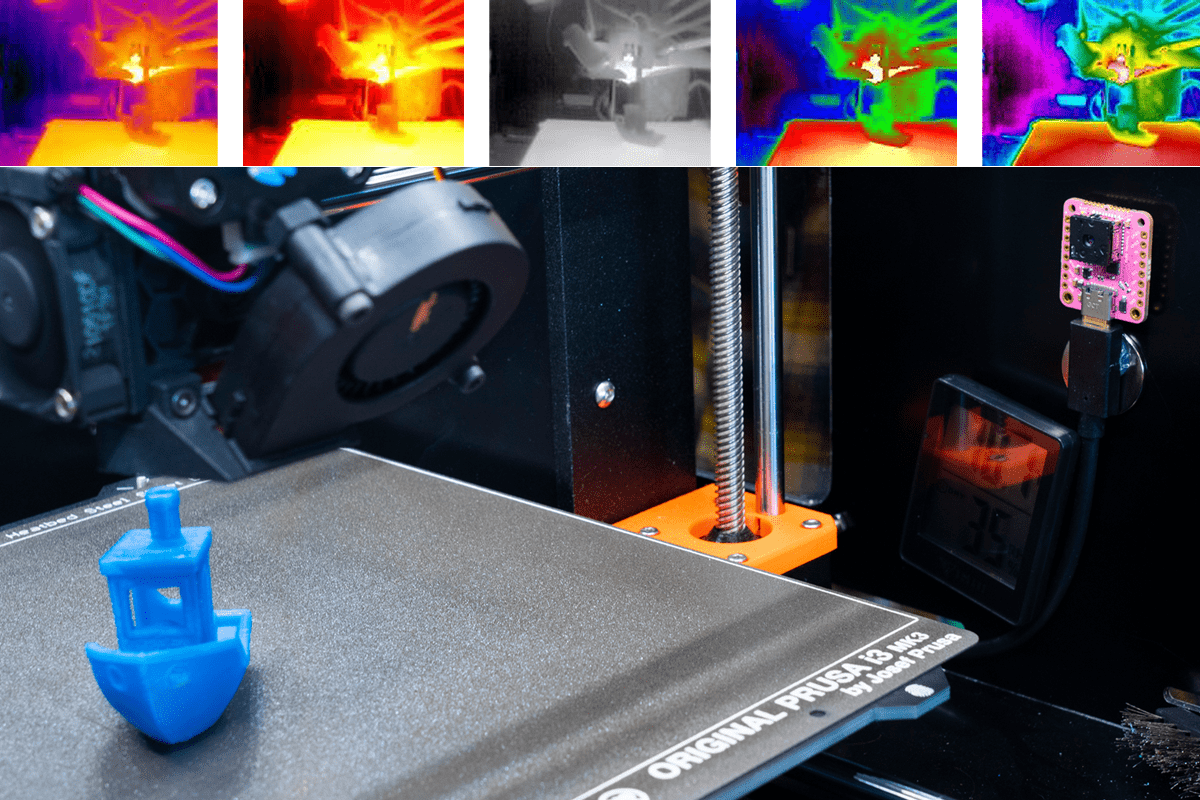

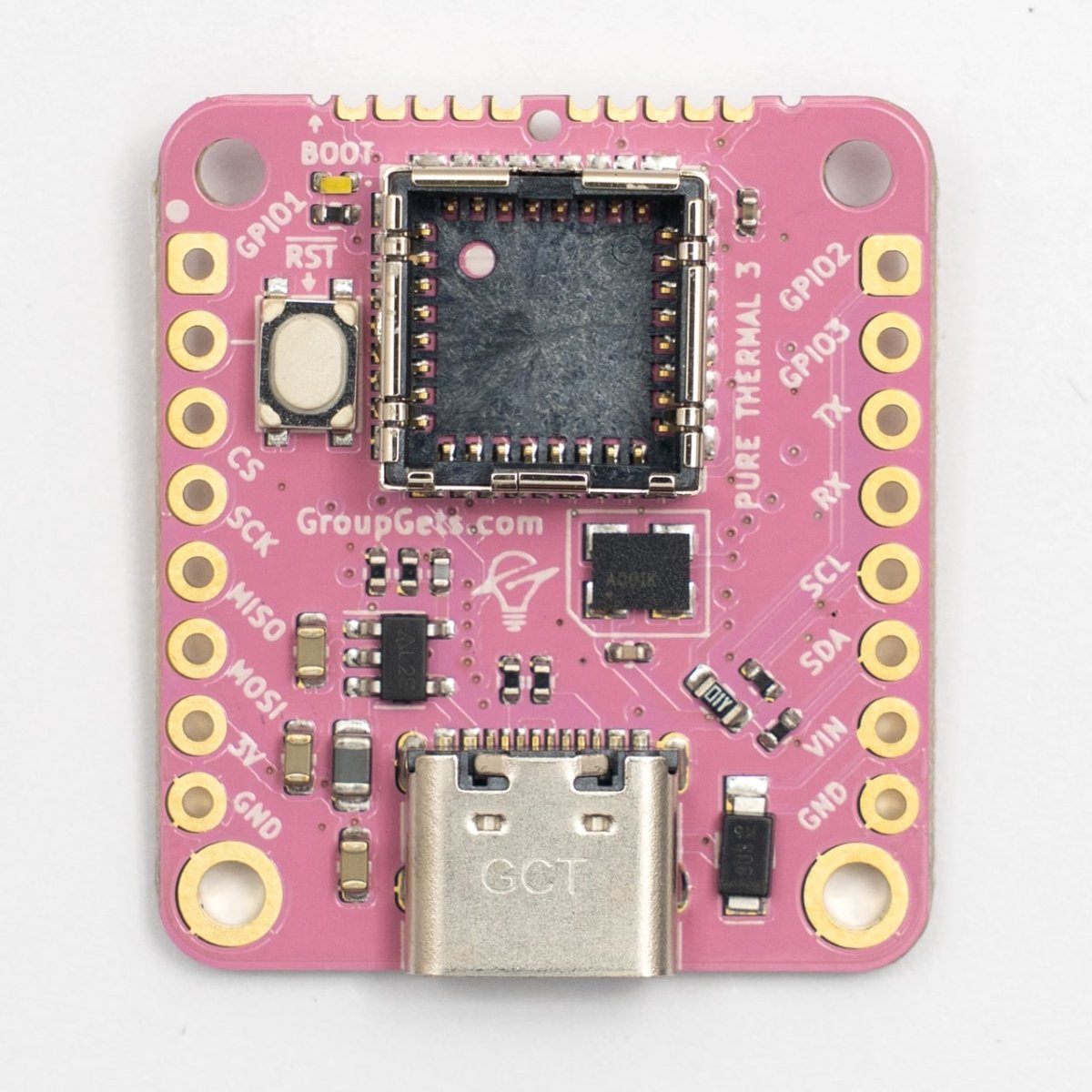

PureThermal 3 (PT3) is a hackable thermal webcam for the FLIR Lepton (2.x - 3.x and FS) LWIR camera core. It has the same basic functionality of the PureThermal 2 but with a few changes and additional features. Unlike the PT2, the PT3 does not have pads to install an RF shield and the Tag-Connect TC2030 programming connector is replaced by the Tag-Connect EC-10-IDC.

Design, PCB Fabrication, and Assembly Done in the USA!

New Features:

• USB-C connector
• Flash custom firmware with USB DFU
• Castellated edge with full JTAG breakout for rapid flashing
• Works with Tag-Connect EC-10-IDC
• Better buttons for Boot and Reset


• 3x STM32F412CG GPIO pins




• PC15, PA0, PH1




• Breakout for SPI to communicate directly with the Lepton




• SPI bus is 3V with a 56 Ohm series resistor




• Partially MikroBUS™ compatible breakout pin configuration




• See the mikroBUS™ standard PDF.


• +5V is V_IN and +3.3V is +3V on PureThermal 3

Features:

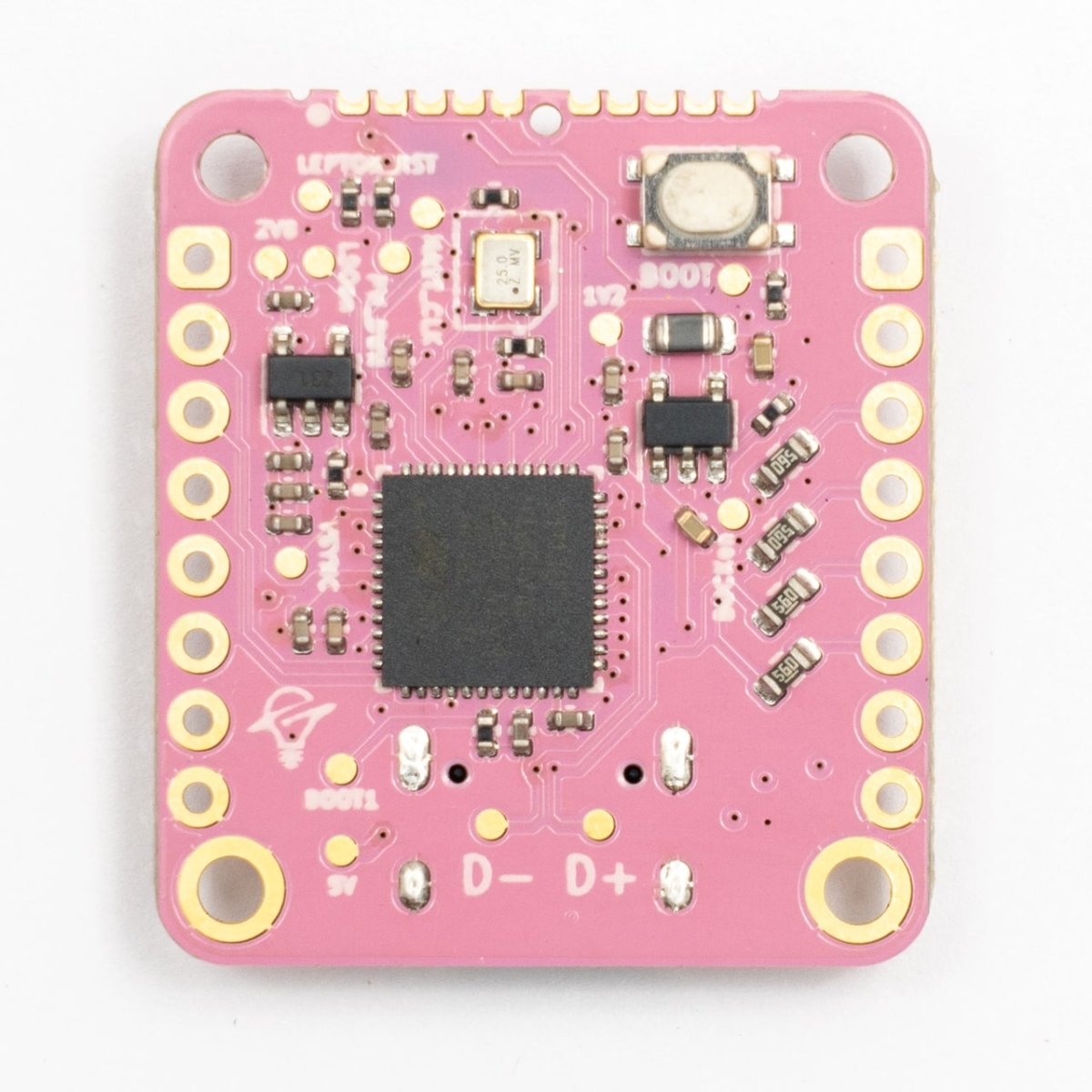

• STM32F412 ARM microprocessor: Execute on-board image processing without the need for an external system or SBC.


• USB UVC works on Windows, Linux, Mac, and sometimes Android


• Open source reference firmware is on the GroupGets Github


• Open source reference image viewer software for Linux and macOS


• USB-C connector


• Flash custom firmware with USB DFU


• Castellated edge with full JTAG breakout for rapid flashing


• Better buttons for Boot and Reset


• 3x STM32F412CG GPIO pins



  • PC15, PA0, PH1






• Breakout for SPI to communicate directly with the Lepton




  • SPI bus is 3V with a 56 Ohm series resistor






• Partially MikroBUS™ compatible breakout pin configuration



  • See the mikroBUS™ standard PDF.


  • +5V is V_IN and +3.3V is +3V on PureThermal 3





Resources:

PureThermal 3 Datasheet

Software

• GetThermal for x86 - Linux/macOS (open source)


• GetThermal for Raspberry Pi


• Multi PT1 Frame Grabber (beta, unofficial)

Mechanical:

• PureThermal 3 Dimensional Drawing


• PureThermal 3 STEP File

Press:

PureThermal 3 board embeds FLIR Lepton FS thermal camera for $200 - CNX Software

GroupGets Launches the PureThermal 3, a $200 Hackable FLIR Lepton FS Thermal Camera Board
