PureThermal 2

PureThermal 2: A hackable, USA-made thermal webcam for FLIR Lepton cores. Plug-and-play USB, open-source firmware, and STM32 MCU in a tiny 30x22mm build for custom integration.

SKU: SKU:PURETHERMAL-2

$109.99 USD

Sale Sold out

Quantity

Out of Stock

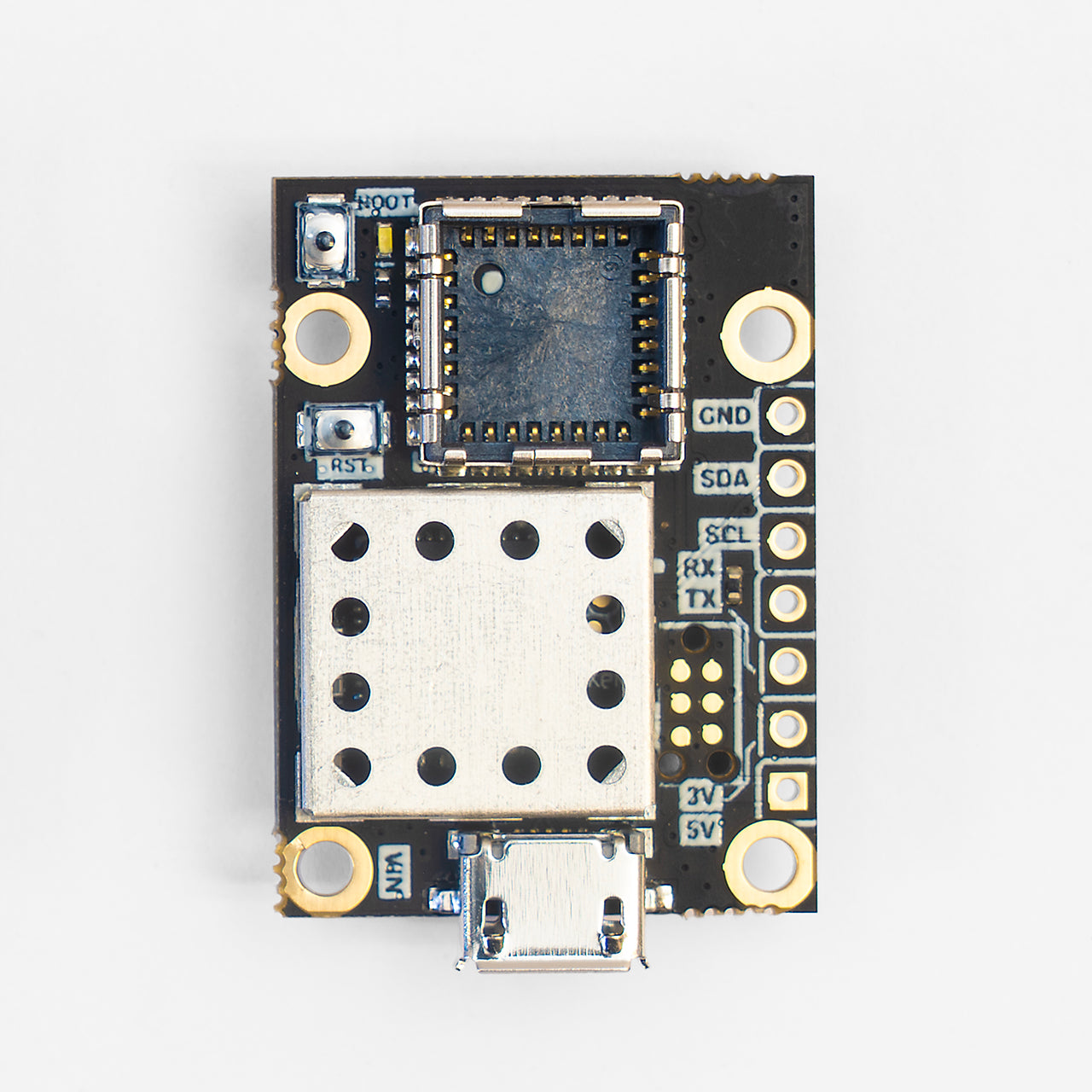

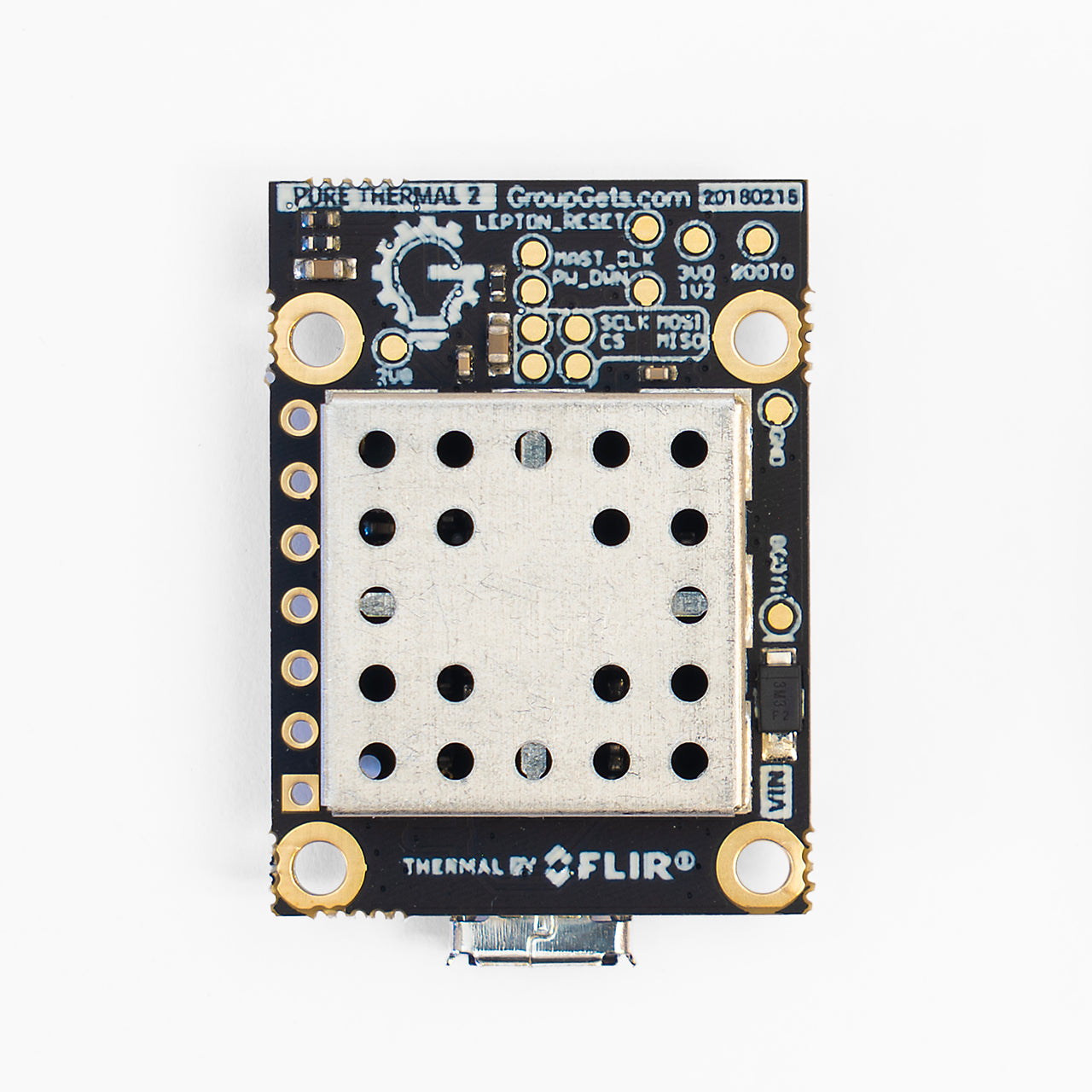

The PureThermal 2 FLIR Lepton Smart I/O Module (PT2) is a hackable thermal webcam module for the FLIR Lepton (2.x, 3.x, FS, 3.1R, and UW) LWIR camera cores. It ships pre-configured to operate as a plug-and-play UVC 1.0 USB thermal webcam that will work with standard webcam apps such as VLC Media Player on PC, Linux, Mac, and Android.

For developers, it's reference firmware is open source for customized applications.

Design, PCB Fabrication, and Assembly Done in the USA!

Features:

Get Thermal video over USB right out of the box using freeware apps like VLC
WindowsPT2 can do 9 Hz color video over usb using the USB UVC class
STM32F412 ARM microprocessor. Execute on-board image processing without the need for an external system
Through-holes for GPIO and peripheral breakouts to easily attach other devices
Open source reference firmware is on the GroupGets Github
Device Firmware Upgrade (DFU) the STM32 ARM MCU over USB
Debug via JTAG through a 6-Pin plug-of-Nails port using a Tag-Connect TC2030-IDC-NL, an ARM20-CTX, & ST-Link V/2.
Powered via Micro-USB
UART, I2C, and GPIO Expansion via standard 0.1” holes
Compatible with all FLIR Lepton (2.x, 3.x, FS, 3.1R, and UW) LWIR camera cores.
Compact 30 x 18mm form-factor that can be embedded into other modules or inconspicuously housed as a standalone web, research, or security camera
