AudioMoth Dev Case (Group Order - Round 1)
AudioMoth Dev Case (Group Order - Round 1)
The AudioMoth Dev Case is a waterproof enclosure for AudioMoth Dev, supporting external microphones, GPS, batteries, and custom boards. It features easy deployment, a rain shield, acoustic vent, and a security lock eyelet
SKU:
Couldn't load pickup availability

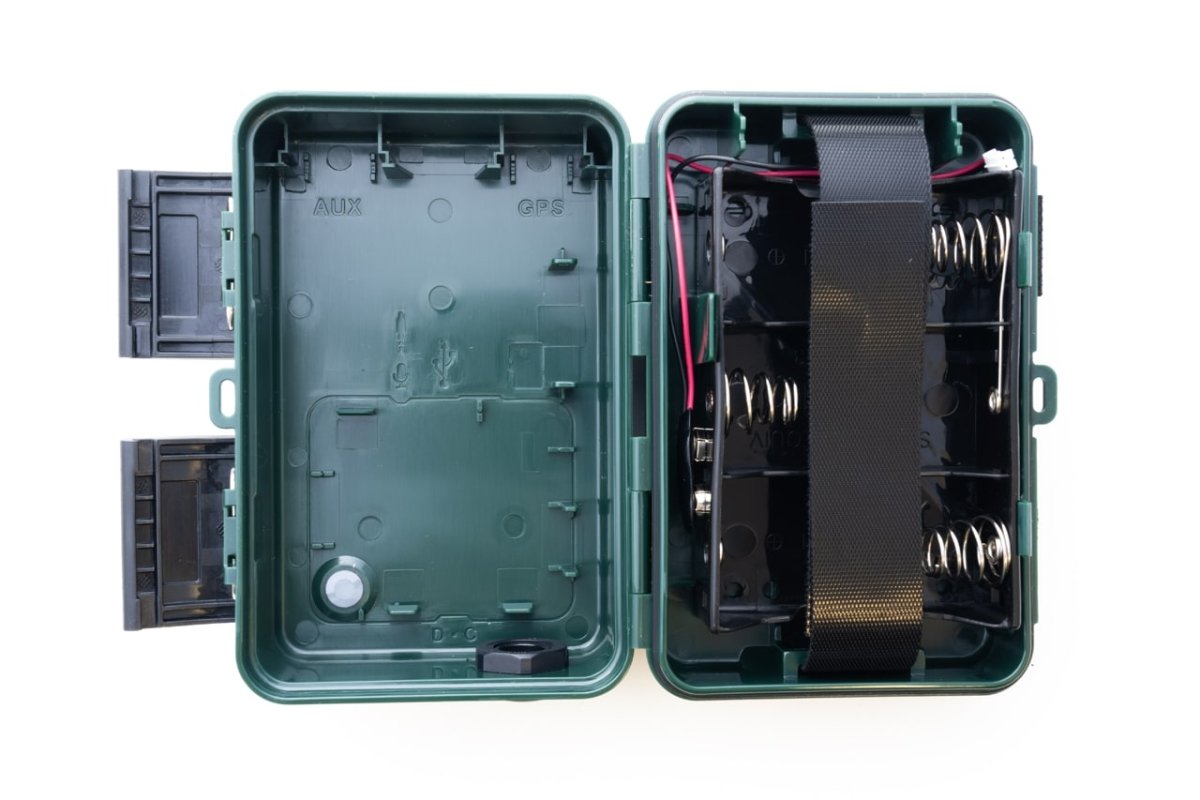

The AudioMoth Dev Case is a waterproof injection moulded enclosure for AudioMoth Dev that supports full hardware configuration flexibility, with integrated mounts and slots that enable the use of external microphones, GPS, large batteries and custom auxiliary boards.

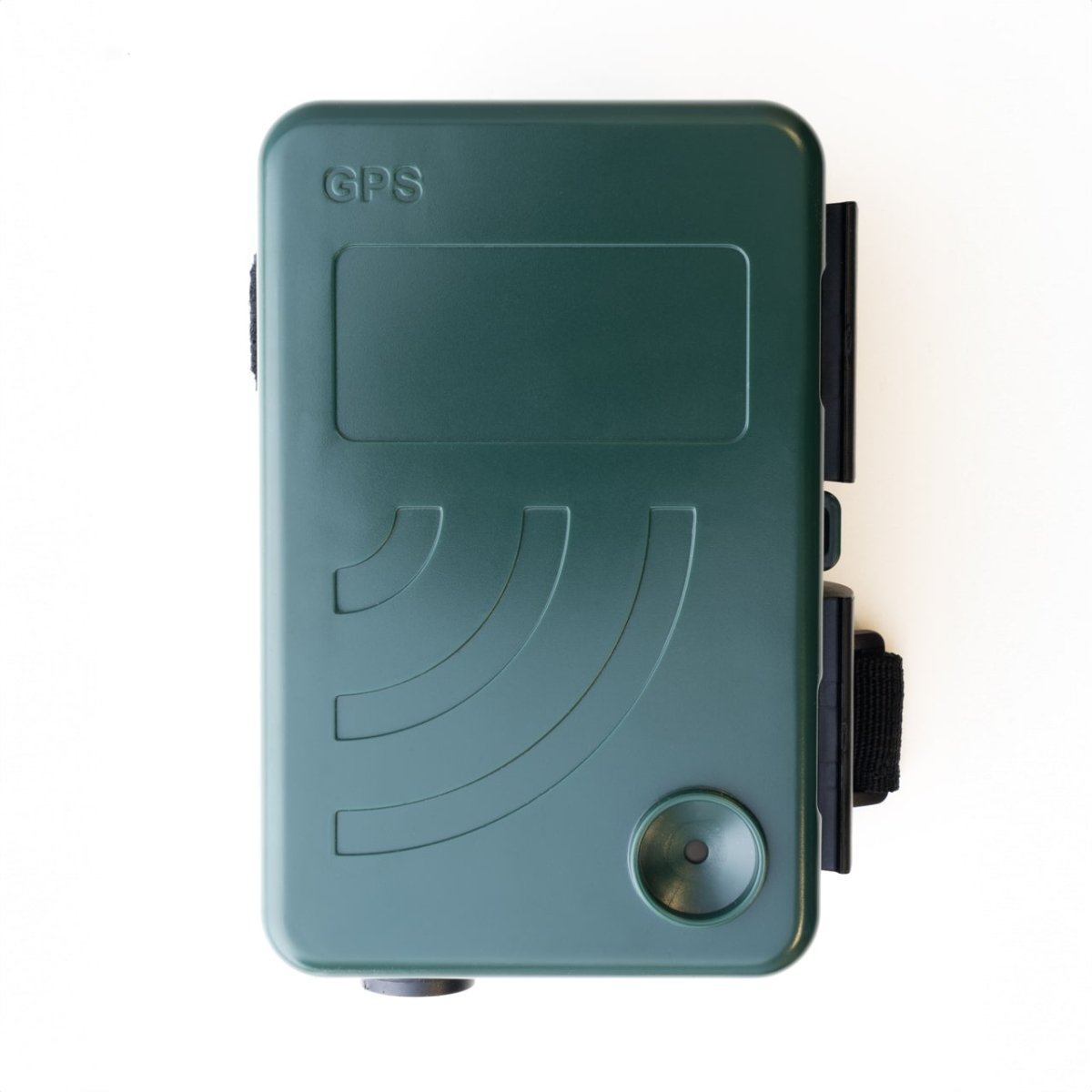

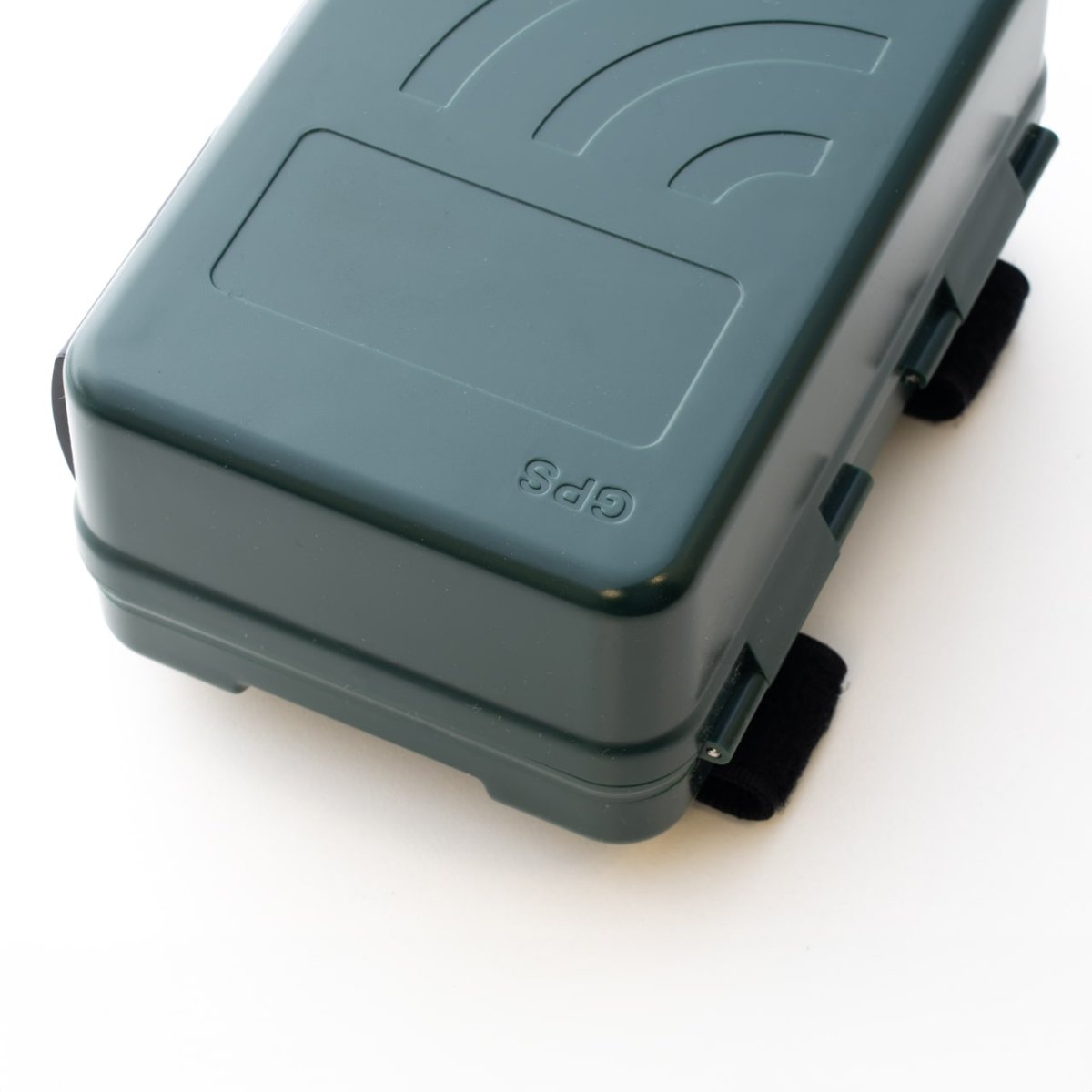

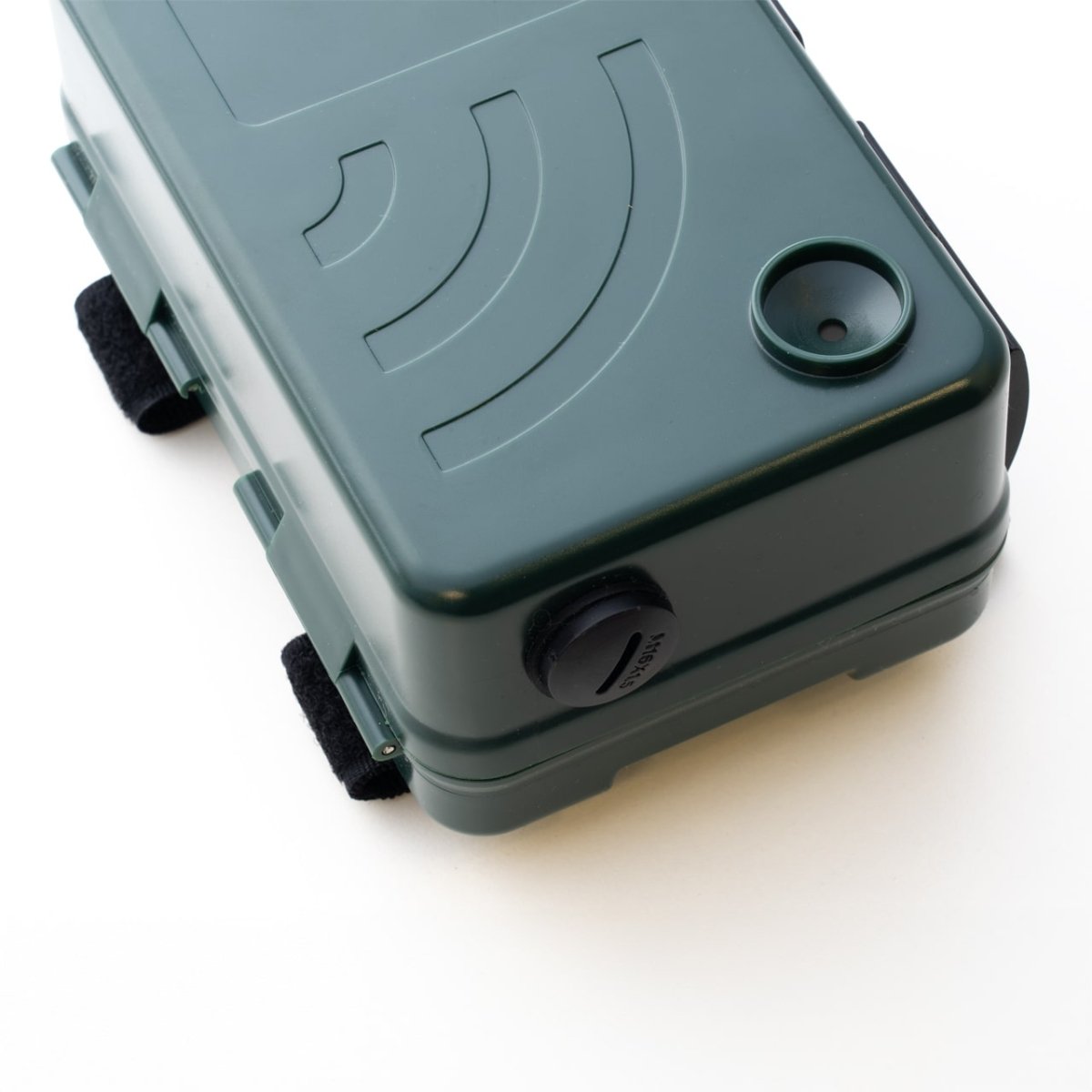

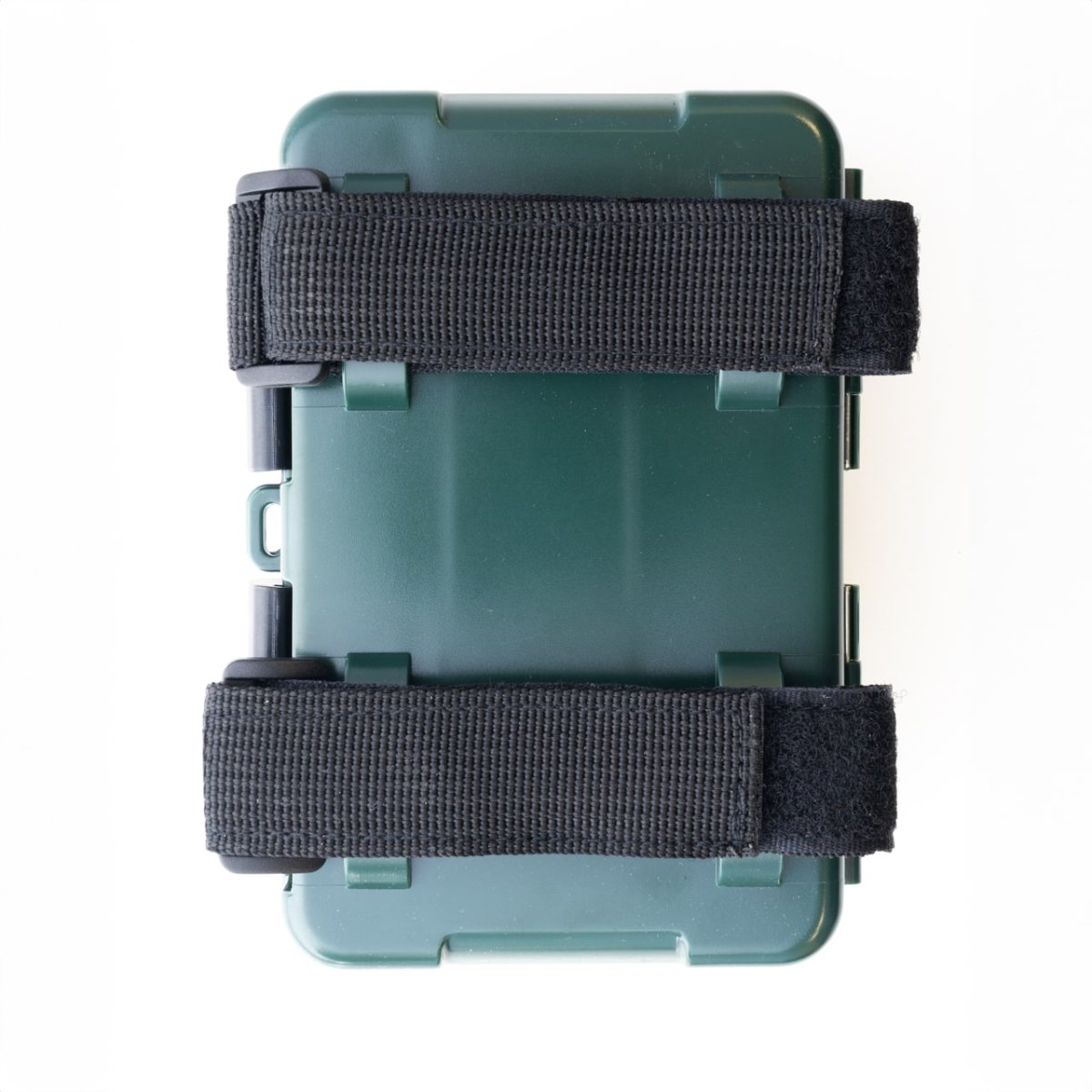

The case is designed to be easy to deploy, with two clasps that compress a replaceable o-ring seal. It is robust enough to endure extended deployments in remote locations, made from tough polycarbonate with a moulded rain shield and waterproof acoustic vent to help protect the internal microphone. At the front of the case is a rectangular label area measuring 62.5 x 29.5 mm. The underside of the case has an M16 cap that can be interchanged to fit external cable glands for external plug-in-powered (PIP) microphones or hydrophones. At the back of the case are two velcro straps that allow for secure attachment in the field. In between the clasps sits a lock eyelet, designed to deter device tampering.
Specifications:
- Waterproof to IPX7 (1 meter submersion for 1 hour with no leakage).
- Measures 100 x 140 x 65 mm.
- Velcro straps for easy deployment on 3-6 cm diameter branches/poles.
- Rain-hood to prevent water-pooling around the microphone.
- Easy to use clasps for simple battery and MicroSD card changes.
- Compatible with AudioMoth Dev.
- Slots available for the AudioMoth GPS Board and an additional custom 26 x 24 mm auxiliary board.
- M16 cable gland opening with installed cap, can be replaced with standard M16 cable glands.
- Label area measuring 62.5 x 29.5 mm.
- The case requires 40 minutes for the air pressure to equalize after the clasp is sealed.
Case contents:
- 1 x AudioMoth Dev Case Lid and Base
- 2 x Velcro strap for deployment
- 1 x D-cell battery holder with compatible plug-in cable
- 1 x O-ring seal
- 1 x M16 cable gland cap
- 2 x Clasp

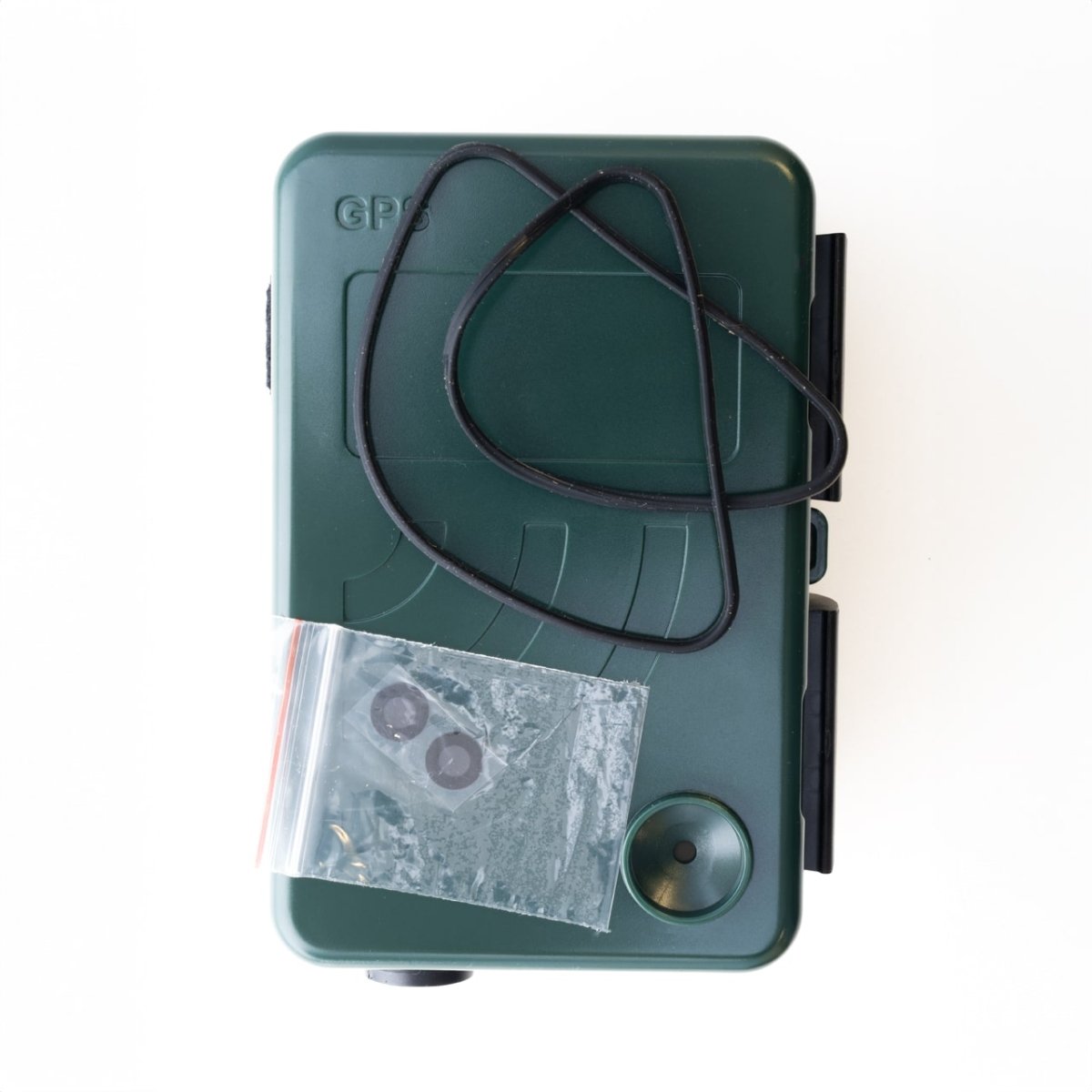

Spares parts included:
- 2 x GAW334 acoustic vent
- 1 x O-ring seal
Important Notes:
- AudioMoth Dev not Included
- Not compatible with AudioMoth 1.0, 1.1 and 1.2.
