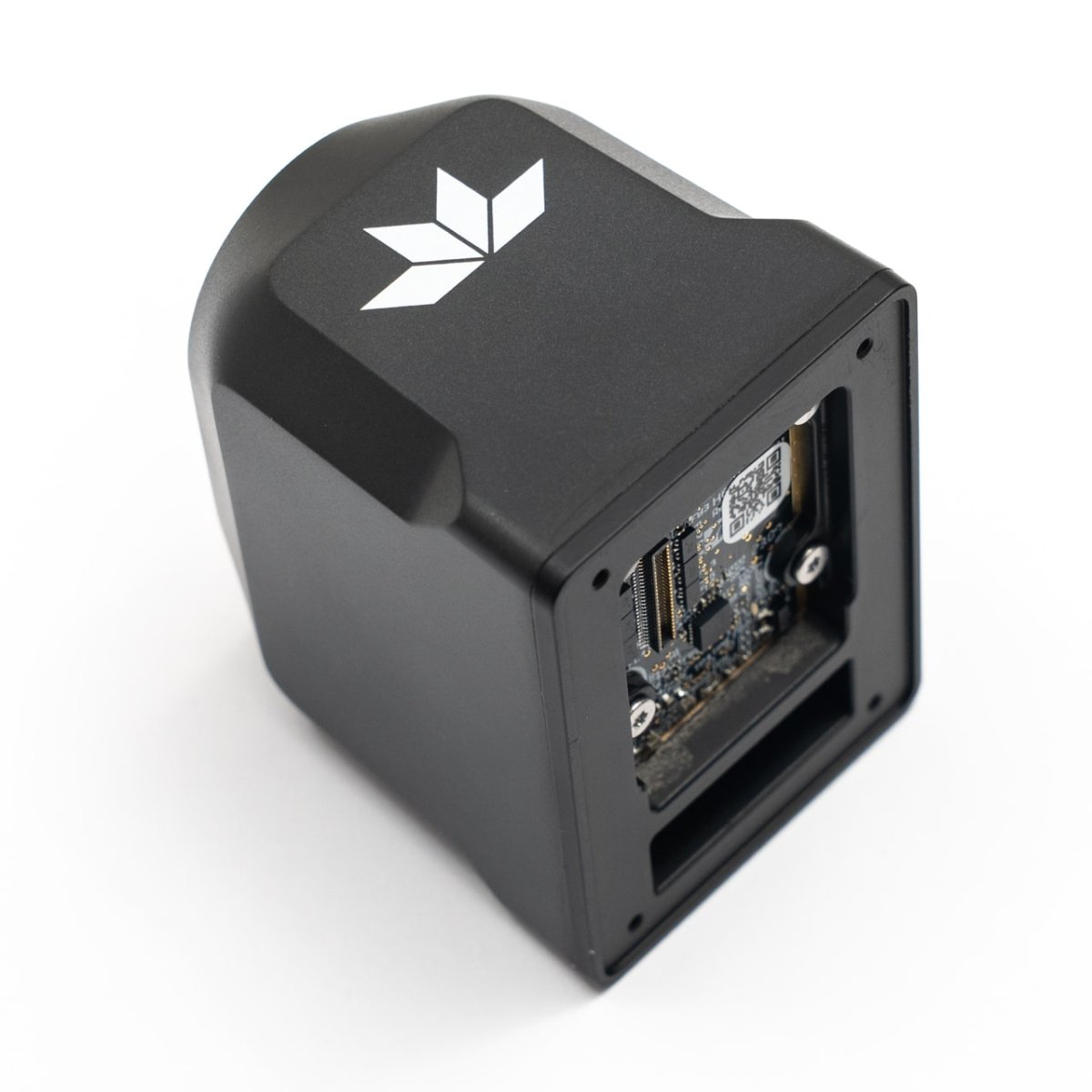

Teledyne FLIR Hadron™ 640+

Made in the USA, and ITAR-free, the Hadron™ 640+ pairs a performance-leading 640x512 resolution Boson+ thermal camera with a 64MP visible camera in a single easy-to-integrate module. With a size, weight, and power (SWaP) optimized design, it is an ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and AI-ready applications where battery life and run time are mission critical.

The Boson longwave infrared (LWIR) thermal camera provides the ability to see through total darkness, smoke, most fog, glare as well as take the temperature of every pixel in the scene. The 64MP visible camera imagery enables AI and machine learning for intelligent sensing applications. With drivers available for market leading processors from NVIDIA, Qualcomm, and more plus industry-leading integration support, Hadron 640+ reduces development cost and shortens time to market.

INDUSTRY-LEADING THERMAL AND VISIBLE CAMERA PERFORMANCE

Collect high-speed, dual VGA radiometric thermal and HD visible imagery in all light conditions.

BUILT FOR INTEGRATORS

Reduce development cost and time to market with a solution from a single, reliable supplier.

OPTIMIZE DESIGN AND OPERATION TIME WITH COMPACT, LIGHTWEIGHT, AND LOW-POWER MODULE.

The performance, reliability and support expected from Teledyne FLIR and the industry’s most versatile HD+ LWIR camera portfolio.

SPECIFICATIONS

• Thermal Imaging Detector
  • Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI
• Thermal Sensitvity [NETD]
  • <40 mK

RADIOMETRY

• None

IMAGING & OPTICAL

• EO Camera Optics Effective Focal Length
• (EFL) 4.8 mm, 67° HFOV, F/# 1/2.3
• EO Camera Sensor
• 9248 x 6944 pixels (64.2 MP), 0.7 µm pitch, 4-lane MIPI
• EO Camera Video
• Full resolution @ 60 Hz
• IMU
• ICM20602, I2C or SPI (selectable)
• IR Camera Optics
• Effective Focal Length (EFL) 13.6mm, 32° HFOV, F/# 1.0
• IR Camera Video
• Full resolution @ 60Hz
• Thermal Imaging Detector
• Boson 640x512 pixels, 12µm pitch, USB 3.0, 2-lane MIPI

ELECTRICAL

• Electrical Interface
• Hirose DF40C-50DP-0.4V (51)
• Example of mating connector:
• DF40HC(2.5)-50DS-0.4V (51)
• Power
• 5V, typical power dissipation

Important Notes

• All international customers that are ordering any Thermal Imaging Camera will be required to fill out an End Use Statement document before shipment. Once you place your order we will send you an email with the documents.
• We can only ship 60 Hz cameras to the countries (listed below)
• The authorized export, reexport and transfer countries for 60Hz cameras are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey, United Kingdom, United States of America.

• ECCN: 6A003.b.4.b
• HTSUS: 9027.50.4020
• Country of Origin: USA
• Part Number: 70640AS32-6PAAXP

🕑Lead Time🕑

Approximately 2-4 Weeks from when your order is placed for < 10 units (if greater than 10 email us for the most accurate lead time). Your whole order will ship together.
