AudioMoth v1.2.0 (Round 12)

Name

AudioMoth v1.2.0 (Round 12)

Brand / Manufacturer

Open Acoustic Devices

Manufacturer Part #

OAD-AM-120

Product Description

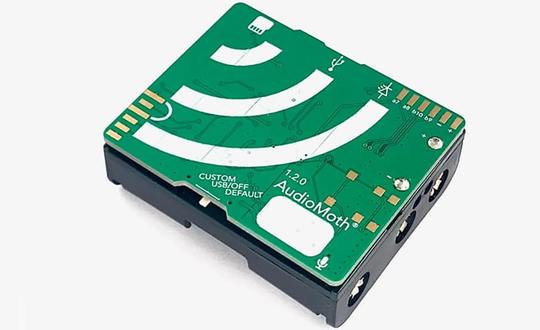

The AudioMoth is a low-cost, full-spectrum acoustic logger, based on the Silicon Labs Gecko processor range. Just like its namesake, AudioMoth can listen for sound from audible frequencies, well into ultrasonic frequencies. It is capable of recording uncompressed audio to micro SD card at up to 384,000 samples per second.


Lead time before shipment is 60 days from the date that the campaign closes (Closes November 23rd + 60 Days = Shipping by January 22nd 2021)

Features

• EFM32 Gecko processor
• Capable of recording uncompressed audio to micro SD from 8k to 384k samples/second
• Records uncompressed WAV files to SD card
• Powered by 3 x AA batteries
• Analog MEMS microphone
• Analog pre-amplifier with adjustable gain
• Measures just 58 x 48 x 15 mm
• Weight without Batteries: .9 oz (22g) +/- .2 oz (6g)
• Configurable USB interface
• Onboard real-time clock keeps track of time in UTC

Enhancements in version 1.2.0 include;

• New internal MEMS microphone
• Lower self-noise and improved recording quality
• Improved performance with rechargeable NiMH batteries
• Exposed footprint for an external microphone via a 3.5 mm jack. NOTE: The jack socket is an optional extra that requires hand soldering. WARNING: When the 3.5mm socket is attached, AudioMoth is no longer compatible with the Official AudioMoth IPX7 case.

Comes with firmware version 1.5.0 pre-installed

Note that all versions of AudioMoth firmware and apps are compatible with all hardware versions.

AudioMoth 1.2.0 is designed by Open Acoustic Devices. The associated software is open-source and freely available. Note that AudioMoth is a prototype research tool, and is not a commercial product. As such, it comes with no warranty or guarantee that it is fit for purpose.

For more information about the AudioMoth 1.2.0 and device support, please visit the Open Acoustic Devices website.

Lead time before shipment is 60 days from the date that the campaign closes (Closes November 23rd + 60 Days = Shipping by January 22nd 2021)

International Duties and Taxes are not included, you may be required to pay these before delivery.

Why GroupGets?

This Group Buy was created by Open Acoustic Devices in response to requests from a large number of individuals all wishing to individually acquire an AudioMoth device.

External Links

Manufacturer product page

Unit Deliverable

One AudioMoth device (batteries, SD card, USB cable and case not included)

Unit Price

$59.99

Campaign Part #

GG-P-853

Availability

Not available / campaign funded, end date: Wed, 18 Nov 2020 11:36:00 PST

Factory Lead Time

60 Days

SanDisk Extreme® microSDHC™ UHS-I w/adapter- 64GB

$18.00

USB A to Micro B Charge & Sync Cable

$2.50

300.0 mm (0.98') Micro USB Cable

10 x 1 Mil Transparent Clear Zipper Self Seal Zip Lock Polyethylene Plastic Bags

$1.00

3.5mm Socket

$3.50

WARNING: When the 3.5mm socket is attached, AudioMoth is no longer compatible with the Official AudioMoth IPX7 case. This part will need to be hand soldered onto the board, it will not come attached.

The Official AudioMoth IPX7 Waterproof Case (Black)

$34.99

Specifications:

• Waterproof to IPX7 (1 meter submersion for 1 hour with no leakage)
• Comes with a velcro strap for easy deployment on 3-6 cm diameter branches/poles.
• Rain-hood to prevent water-pooling around microphone
• Easy to use clasp for simple battery and MicroSD card changes
• Compatible with AudioMoth 1.0.0, 1.1.0, and 1.2.0 (when jack socket not fitted)
• The case requires 40 minutes for the air pressure to equalise after the clasp is sealed.
