ICE-V Wireless is an ICE40UP5K+ESP32-C3 development board, allowing Wi-Fi and Bluetooth control of the the FPGA by combining an Espressif ESP32C3HN4 SoC with a Lattice iCE40 FPGA. Additionally, several ESP32C3 GPIO pins are available for additional interfaces, such as serial, ADC, or I2C.
Missed the campaign? Buy now in the GroupGets store!

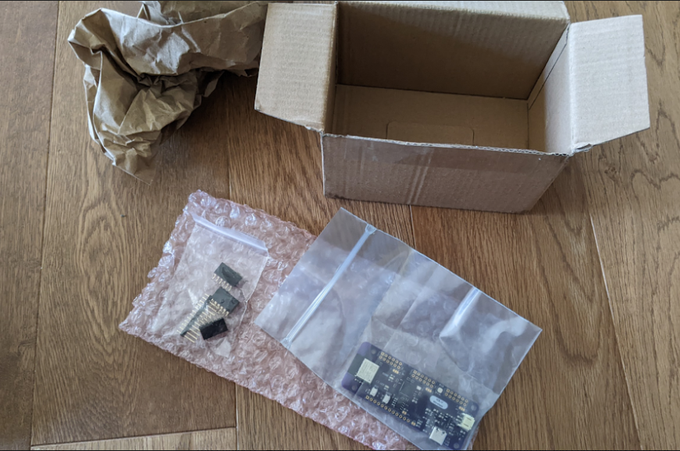

One unit with through hole connectors included (unsoldered).
Campaign Funded, ends when minimum unit count reached
28 Days after campaign end date
The ICE-V Wireless enclosure is a 3-piece 3D printed case with M2x16 screws included.
Designed to fit a 2000mAh, 36mm x 60mm x 8mm, Li-Po battery such as this one: Adafruit Battery
The case is printed in PETG, capable of tolerating temperatures up to 75°C (167°F).
*May have small imperfections*
Campaign discussion forums are intended for questions about the product such as specifications or to share ideas about applications. The campaign initiator or GroupGets may also send out important one-to-many updates on this channel. This is not the place for individual technical support inquiries. For help or questions about an order, please submit a support ticket here.
We received a mislabeled reel of components, so now we're just waiting on a replacement to arrive.
Shipping is delayed until early-mid October.
All parts have been ordered and PCBs are being made!
We are running a bit behind the original lead time estimate, but on track to ship late September.
If you have already made an order, you can add it by going to your dashboard, clicking "view" on the order, and edit from the order invoice page.
Make sure your billing and shipping information is up to date while you're there. This campaign will be funded soon!
Though weekly updates were not posted for the last few weeks there has been plenty work going on in the community.
We hit 94% funding today so we are getting really close. Tell your FPGA friends, the campaign closes soon!
Seeing some rust posts on twitter for the ESP32-C3 we had to give it a try.
The standard ESP32-C3 port works just fine on the ICE-V wireless. Happy news for rustaceans out there!
Work on Zephyr for RISC-V on the FPGA on ICE-V is also underway!
Eric has been working on the test fixture gateware/firmware and created a new repo to support it.
Griffin from GroupGets kindly provided a 3D printable case and we are going to make it available on the campaign when it is ready.
Here are some 3D print examples of his fantastic work!
To get involved in the collaboration join the QWERTY Embedded Discord server.
Some neat FPGA examples are in the works.
This week reached 65% funding and firmware development has been coming along nicely.
Seen a significant reduction in stock of the ESP32-CE-1-N4 part. There are extended temperature and AWS IoT versions of the module still in stock and the pipeline appears to be okay such that we don't need to preorder.
There has been some initial discussion of creating a 3D printable case for the board and that may be in the works soon.
This week was a little slower bringing in more backers but that has not discouraged us and we continue to push firmware and RTL examples forward.
We sat down with Groupgets this week for a video interview. Watch for that to be released soon.
Eric has been digging around in the Arduino API documentation and running experiments to get familiar with that environment in order to port the basic firmware functionality from ESP-IDF to ESP32 Arduino. So far no roadblocks and he has gotten the WiFiManager library working for SoftAP provisioning (a much nicer one than what's available in IDF) as well as mDNS and unique hostnames so we can have multiple ICE-V on the network at the same time. Currently in progress is adding the TCP socket handler for the FPGA configuration and then the low level SPI/GPIO stuff needed for the actual functionality. We hope to have a first cut on this up on the ICE-V Github within the next few days.

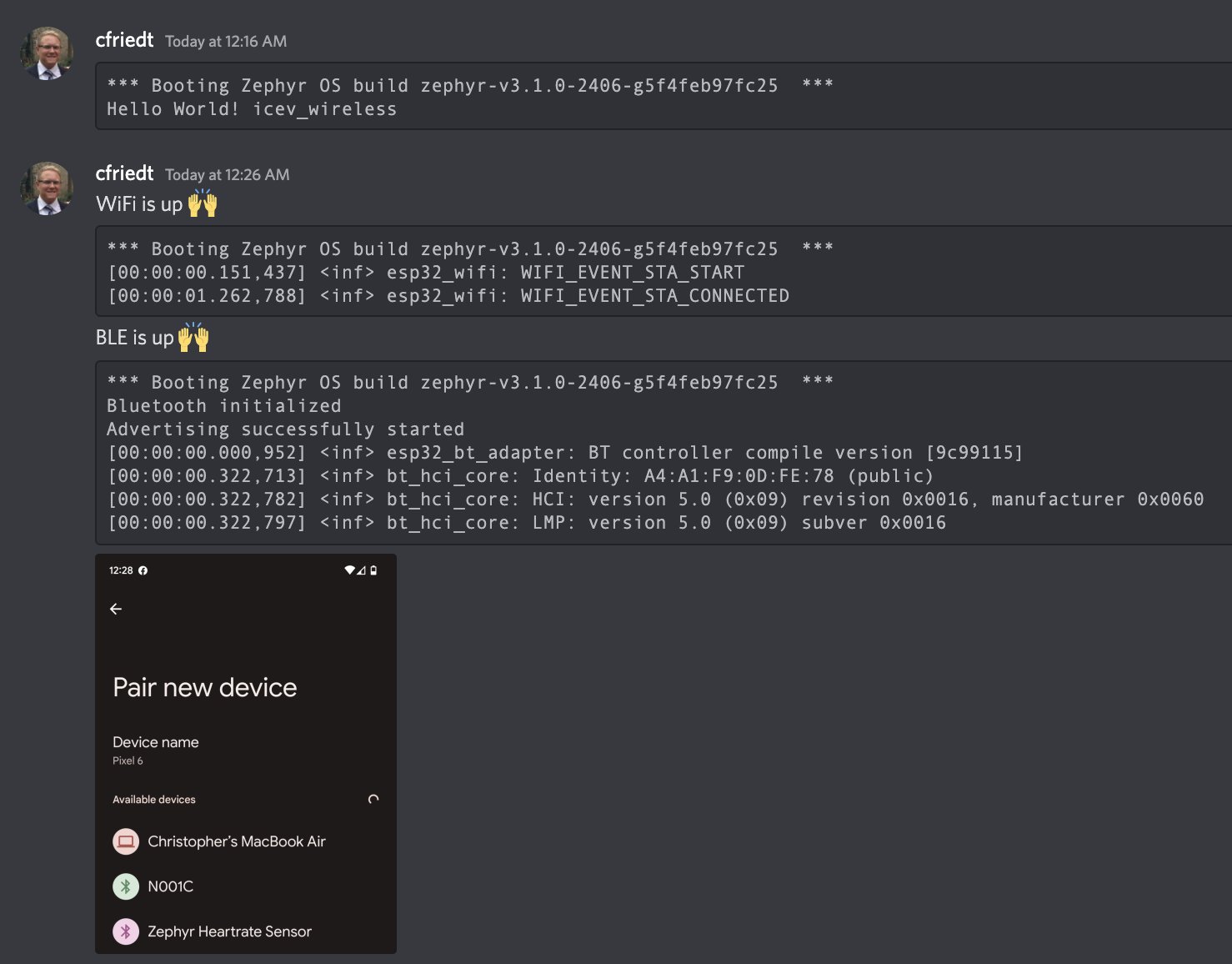

There is also a community volunteer working on bringing up Zephyr support for both the ESP32 and ICE40. Hardware was shipped and we hope to see progress there in the upcoming weeks.
The parts are still under close watch to make sure that we can fulfill the campaign when it closes. All trouble parts have been pre-ordered.
Work on the test fixture is going to start next week.
The campaign is off to a great start with 58% funding in one week!
Many thanks to everyone backing campaign!
Eric has been hard at work on a WiFi provisioning application that provides a SoftAP which allows the user to provide credentials for the network of their choice.
There has been some investigation into supporting the icestudio software and the underlying APIO package. This would give a nicer experience for newer users that aren't command line warriors. This also allows for host platform independent tools which is great!
We having keeping a close eye on the stock of the various parts on the board. To avoid long lead times upon exhaustion we are preemptively ordering parts for low stock, long lead time parts.
There may be some subtle changes to the production PCBs. Mostly to tidy up the routing some and we may adjust the placement of the push buttons to be a little further from the generic single row header.
We are working manufacturing logistics in the background to ensure that we are ready for production as soon as the campaign closes.
Founder / Embedded Systems Architect
Project Role: Co-designer
DSP Designer and Wireless Consultant
Project Role: Co-designer
Date Published: August 05, 2022
Blog about ESP32-C3 wolfSSL benchmarks facilitated by ICE-V wireless.
Author: Gareth Halfacree
Date Published: July 02, 2022
Designed to provide a platform for FPGA work with Bluetooth and Wi-Fi connectivity, this low-power board has a compact footprint.
Author: Jean-Luc Aufranc (CNXSOFT)
Date Published: June 27, 2022
Author: Giorgio Mendoza
Date Published: September 19, 2022
The ICE-V Wireless from QWERTY Embedded Design is a tiny board that combines a Lattice iCE40 UltraPlus FPGA and a ESP32-C3-MINI-1 Wi-Fi/BLE module from Espressif Systems. This device supports popular programming platforms such as Arduino and MicroPython for easy software development.
Author: Abhishek Jadhav
Date Published: September 19, 2022
